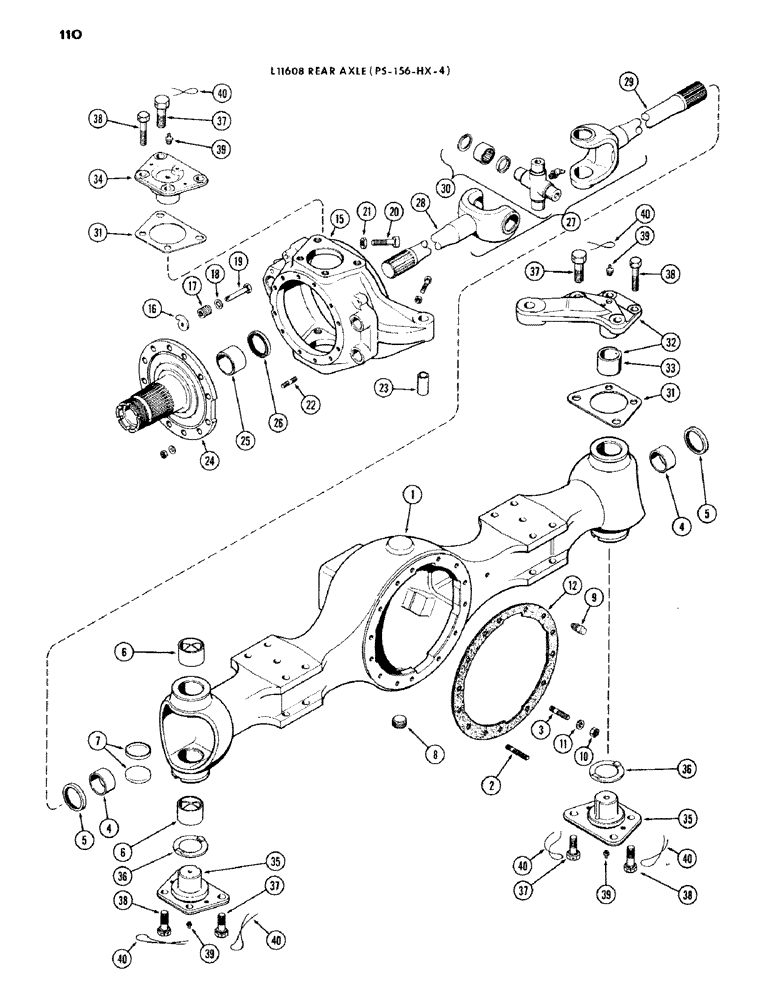

Запчасти Case IH 1200 (110) - L11608 REAR AXLE HOUSING AND KNUCKLE (06) - POWER TRAIN

1

L30503

HOUSING ASSY. - axle, rear, Includes: Ref. 2 - 7

1шт.

2

L30673

STUD

- carrier to housing (3" long)

4шт.

3

A13130

STUD

- carrier to housing (2-5/8" long)

10шт.

4

A25234

BUSHING,57.63mm ID x 65.2mm OD x 31.75mm L

- univ. joint & shaft support

2шт.

5

L30578

OIL SEAL

- oil, univ. joint & staff

2шт.

6

L30579

BUSHING,62.94mm ID x 69.32mm OD x 46.74mm L

- steering bearing

4шт.

7

NSS

NOT SOLD SEPARAT

PLUG - cover, steering bushing

4шт.

8

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - housing drain, 1/4" P.T. sq. sckt. hd.

1шт.

9

A12928

BREATHER

- oil, axle housing

1шт.

10

131-74

LOCK NUT,1/2"-20

NUT - housing stud, 1/2" N.F. hex. Essna

14шт.

11

L30674

WASHER

- housing stud

14шт.

12

A12943

GASKET

-, Serial Range: carrier-housing

1шт.

15

L30603

FLANGE ASSY. - steering knuckle, Includes: Ref. 16 - 23

2шт.

16

A13201

SHOE

CAM - adjusting, brake shoe

2шт.

17

A13023

SPRING

- brake adjusting bolt

2шт.

18

L30582

WASHER

- adjusting bolt

4шт.

19

L30593

BOLT

BOLT - adjusting cam

2шт.

20

L30573

BOLT

STOPSCREW - steering

1шт.

21

L30570

NUT

- jam, stop screw

1шт.

22

L30575

STUD - spindle to steering knuckle

12шт.

23

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod bolt

1шт.

24

L30605

SPINDLE

ASSY. - steering knuckle, Includes: Ref. 25 and 26

2шт.

25

L30581

BUSHING,57.73mm ID x 65.2mm OD x 44.45mm L

- universal joint

1шт.

26

L30578

OIL SEAL

- oil, universal joint

1шт.

27

A25148

JOINT

SHAFT ASSY. - universal joint, knuckle, Includes: Ref. 28 - 30

2шт.

28

A25149

YOKE

SHAFT - universal outer

1шт.

20

A25150

SHAFT

- universal inner

1шт.

30

A25151

KIT

- universal spider

1шт.

31

L30590

SHIM

- steering knuckle cap (.003")

1шт.

31

L30591

SHIM

- steering knuckle cap (.005")

1шт.

31

L30592

SHIM

- steering knuckle cap (.020")

1шт.

32

L30608

ARM

ASSY. - steering axle, Includes: Ref. 33

1шт.

33

L30580

SLEEVE CYLINDER

SLEEVE - steering arm

1шт.

34

L30600

X

CAP - upper RH, steering knuckle

1шт.

35

L30601

CAP

- lower, steering knuckle

2шт.

36

L30583

WASHER,63.5mm ID x 85.72mm OD x 5.21mm Thk

- thrust, steering knuckle bearing

2шт.

37

L30571

BOLT (SPREADER)

BOLT - inner, knuckle cap & arm

8шт.

38

L30576

BOLT (SPREADER)

BOLT - outer, knuckle cap & arm

8шт.

39

L30587

X

FITTING - relief, knuckle cap & arm

4шт.

40

NSS

NOT SOLD SEPARAT

LOCKWIRE - knuckle cap & arm bolt

16шт.
