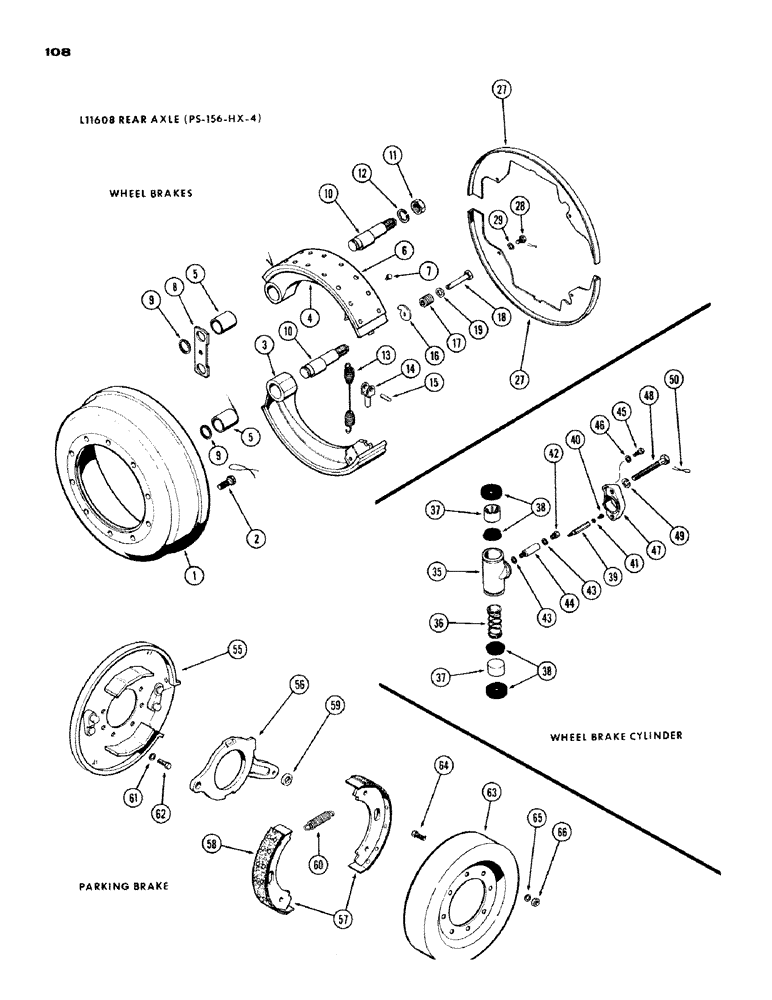

Запчасти Case IH 1200 (108) - L11608 REAR AXLE BRAKE (06) - POWER TRAIN

1

A15045

DRUM

- brake, axle

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake, Serial Range: drum-hub

20шт.

3

A15073

SHOE

ASSY. - brake, R.H. lower & L.H. upper, Includes: Ref. 5 - 7

2шт.

4

A15072

BRAKE SHOE

SHOE ASSY. - brake, R.H. upper & L.H. lower, Includes: Ref. 5 - 7

2шт.

5

A15062

BUSHING

- brake shoe

1шт.

6

A14988

LINING KIT - brake shoe, Includes: Ref. 7

1шт.

7

A15060

RIVET

- brake shoe lining

32шт.

8

L30584

DRAG LINK

LINK - brake shoe

2шт.

9

A28253

RING

- snap, brake link

4шт.

10

L30586

PIN

- anchor, brake shoe

4шт.

11

A15063

NUT

- brake shoe pin

4шт.

12

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

13

A15071

SPRING

- return, brake shoe

2шт.

14

A14996

LINK

ASSY. - brake & cylinder, Includes: Ref. 15

4шт.

15

NSS

NOT SOLD SEPARAT

PIN - link connecting (Order Ref. 14)

1шт.

16

A13201

SHOE

CAM - adjusting brake shoe

4шт.

17

A13023

SPRING

- brake adjusting

4шт.

18

L30593

BOLT

BOLT - adjusting cam

4шт.

19

L30582

WASHER

- brake adjusting bolt

8шт.

27

L30595

KIT

SHIELD - dust, brake lower R.H.

1шт.

27

L30596

SHIELD

- dust, brake lower L.H. & upper R.H.

2шт.

27

L30597

SHIELD - dust, brake upper L.H.

1шт.

28

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

CAPSCREW - dust shield mounting

8шт.

29

92-6

LOCK WASHER,3/8"

8шт.

A19980

CYLINDER

ASSY. - wheel brake, Includes: Ref. 35 - 38

2шт.

35

NSS

NOT SOLD SEPARAT

BODY - brake cylinder (Order A19980)

1шт.

36

A15053

SPRING

- pressure

1шт.

37

A15000

PISTON ASSY.

PISTON - brake cylinder

2шт.

38

A19981

KIT

- repair, cylinder cups & boots

1шт.

39

A15056

SCREW,Bleed, 1/4" - 28 x 2 15/16"

- bleeder, brake

2шт.

40

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Bleeder screw Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

42

A12989

ADAPTER

FITTING - inlet, brake cylinder

2шт.

43

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet fitting

4шт.

44

A15054

EXTENSION

- inlet fitting

2шт.

45

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- cyl. to adapter, 3/8 x 7/8" N.C. hex.

4шт.

46

92-6

LOCK WASHER,3/8"

4шт.

47

L30602

ADAPTER

- brake cylinder

2шт.

48

113-322

SCREW - adapter mtg., 7/16 x 4-1/2" N.C., hex. hd.

4шт.

49

92-7

LOCK WASHER,7/16"

4шт.

50

NSS

NOT SOLD SEPARAT

LOCKWIRE - adapter bolt

1шт.

A25270

BRAKE ASSY.

- parking, rear axle, Includes: Ref. 55 - 60

1шт.

55

A25269

BACKING PLATE

PLATE ASSY. - back, brake

1шт.

56

A12779

LEVER

- cam, brake actuating

1шт.

57

A12780

BRAKE SHOE

SHOE ASSY. - brake (1 shoe), Includes: Ref. 58

2шт.

58

A12843

PACKAGE

LINING KIT - brake shoe

1шт.

59

A16642

WASHER

ROLLER - cam lever

1шт.

60

A12778

SPRING

- return, brake shoe

2шт.

61

92-7

LOCK WASHER,7/16"

7шт.

62

113-313

BOLT - plate to adapter, 7/16 x 1" N.C. hex. hd.

7шт.

63

A25271

BRAKE DRUM

DRUM - brake

1шт.

64

28-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- drum to flange, 3/8 x 1-1/4" N.F., hex. hd.

8шт.

65

92-6

LOCK WASHER,3/8"

8шт.

66

129-524

NUT,3/8"-24, G8

8шт.
