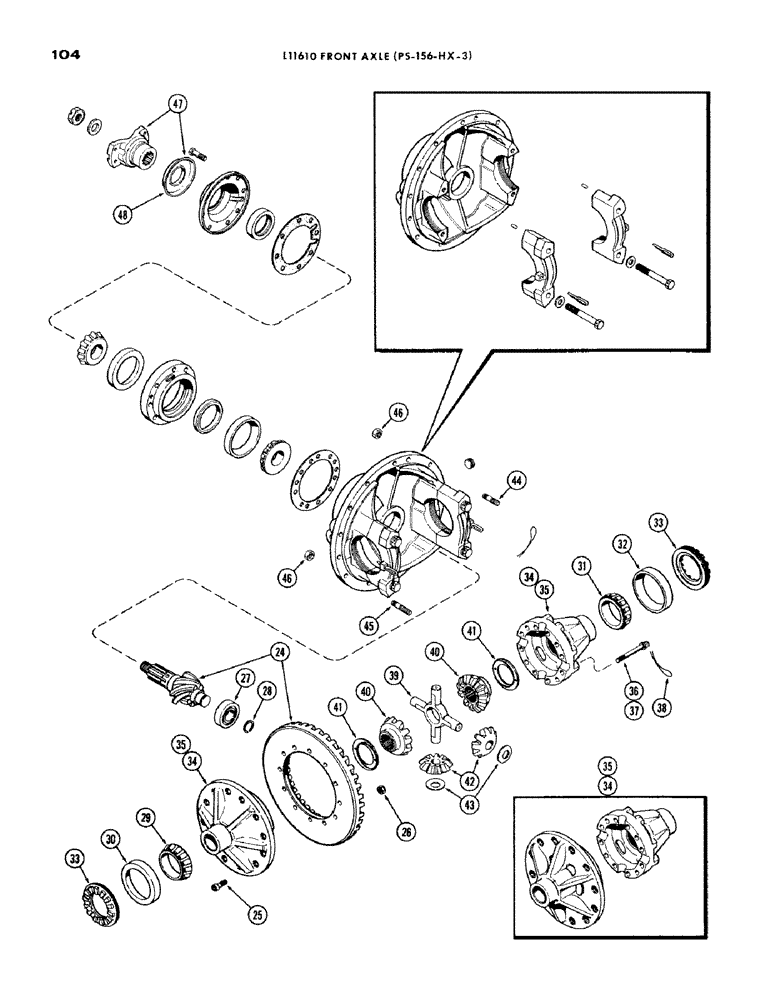

Запчасти Case IH 1200 (104) - L11610 FRONT AXLE DIFFERENTIAL, CONTINUED (06) - POWER TRAIN

L30758

DIFFERENTIAL ASSY. - front axle, Includes: Ref. 24 - 48

1шт.

24

L30391

GEAR-SET

GEAR & PINION SET - matched, differential, Includes: Ref. 25 - 28

1шт.

25

A16438

BOLT

-, Serial Range: case-gear

12шт.

26

129-283

NUT

- case to gear, 5/8" N.C., hex. slotted

8шт.

27

L30387

ROLLER BEARING

BEARING - rear, drive pinion

1шт.

28

A15442

LOCK

RING - lock, Serial Range: bearing-pinion

1шт.

29

A25224

ROLLER BEARING,3" ID x 1.2205"

BEARING - cone, flange side to L.H.

1шт.

30

ST968

BEARING CUP,3" ID x 1.7875"

CUP - bearing, flange side bearing

1шт.

31

A50197

ROLLER BEARING,3" ID x 0.906"

BEARING - cone, case half R.H.

1шт.

32

A25222

BEARING CUP

CUP - bearing, case half bearing

1шт.

33

A25225

RING

- adjusting, differential bearing

2шт.

34

L30635

DIFFERENTIAL

CASE ASSY. - differential, Includes: Ref. 35 - 43

1шт.

35

A25128

CASE

SET - matched, differential

1шт.

36

A25145

BOLT

- differential case (3.19" long)

8шт.

37

A25144

BOLT,1/2" - 13 x 2.38", Gr 8, Drilled

BOLT - differential case (2.38" long)

8шт.

38

NSS

NOT SOLD SEPARAT

LOCKWIRE - case bolts

16шт.

39

A25143

SPIDER ASSY.

SPIDER - differential

1шт.

40

A25141

GEAR

- side, differential

2шт.

41

A25142

WASHER

- thrust, side gear

2шт.

42

A25131

PINION

- differential

4шт.

43

A25140

WASHER

- thrust, pinion

4шт.

44

L30673

STUD

- carrier to housing (3" long)

4шт.

45

A13130

STUD

- carrier to housing (2-5/8" long)

10шт.

46

131-74

LOCK NUT,1/2"-20

NUT - carrier stud, 1/2" N.F. hex. Esna

14шт.

47

A25125

YOKE ASSY. - differential companion, Includes: Ref. 48

1шт.

48

A25127

SLINGER

- oil, companion yoke

1шт.
