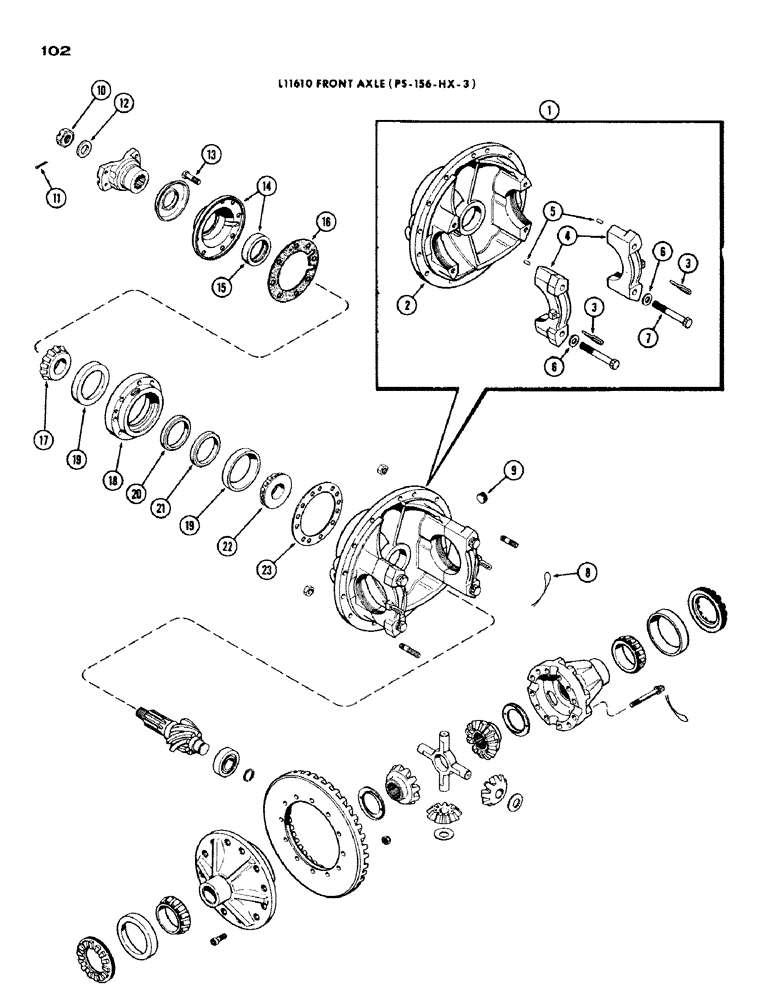

Запчасти Case IH 1200 (102) - L11610 FRONT AXLE DIFFERENTIAL (06) - POWER TRAIN

L30758

DIFFERENTIAL ASSY. - front axle, Includes: Ref. 1 - 23

1шт.

1

L30382

CARRIER ASSY. - differential, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order Ref. 1)

1шт.

3

L30029

PIN

- cotter, adjusting lock

2шт.

WHEN LOCK PIN REF. #3 IS REMOVED IN DISASSEMBLY. IT MUST BE REPLACED WITH A NEW PIN

1шт.

4

NSS

NOT SOLD SEPARAT

CAP ASSY. - bearing, differential (Order Ref. 1), Includes: Ref. 5

2шт.

5

A15433

DOWEL - bearing cap locating

1шт.

6

A16783

WASHER

- differential cap bolt

4шт.

7

A12983

ROD

BOLT -, Serial Range: cap-carrier

4шт.

8

NSS

NOT SOLD SEPARAT

LOCK - wire, bolt

1шт.

9

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- carrier drain, 3/4" P.T. sq. sckt. hd.

1шт.

10

F19657

NUT

- hex., yoke to pinion shaft

1шт.

12

A15441

WASHER

- yoke retaining nut

1шт.

13

113-315

BOLT - cover & cage to carrier, 7/16 x 1-5/8" N.C. hex. hd.

8шт.

14

A25155

COVER

ASSY. - pinion bearing, Includes: Ref. 15

1шт.

15

A25153

OIL SEAL

- oil, pinion bearing cover

1шт.

16

A12955

GASKET

- cover to brg. cage

1шт.

17

A9841

ROLLER BEARING,1.875" ID x 1.0594"

BEARING - cone, pinion outer

1шт.

18

L30030

CAGE

ASSY. - pinion bearing, Includes: Ref. 19

1шт.

19

A9840

BEARING CUP

CUP - cone bearing, cage

2шт.

20

A25156

SPACER

- pinion bearing (.187")

1шт.

20

A25157

SPACER - pinion bearing (.188")

1шт.

20

A25158

SPACER - pinion bearing (.189")

1шт.

20

A25159

SPACER

- pinion bearing (.190")

1шт.

20

A25160

SPACER - pinion bearing (.191")

1шт.

20

A25161

SPACER - pinion bearing (.192")

1шт.

20

A25162

SPACER

- pinion bearing (.198")

1шт.

20

A25163

SPACER

- pinion bearing (.204")

1шт.

20

A25164

SPACER

- pinion bearing (.210")

1шт.

20

A25165

SPACER - pinion bearing (.216")

1шт.

20

A12963

SPACER

- pinion bearing (.222")

1шт.

21

L30388

SPACER

pinion brg. (.191")

1шт.

22

L30032

ROLLER BEARING

CONE - inner bearing, pinion

1шт.

23

A12956

SHIM,.005" Thk

Pinion bearing cage .005" Thk

1шт.

23

A12957

SHIM,.010" Thk

Pinion bearing cage .010" Thk

1шт.

23

A12958

SHIM,.003" Thk

Pinion bearing cage .003" Thk

1шт.

11

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Pinion shaft 1/8" x 2"

1шт.
