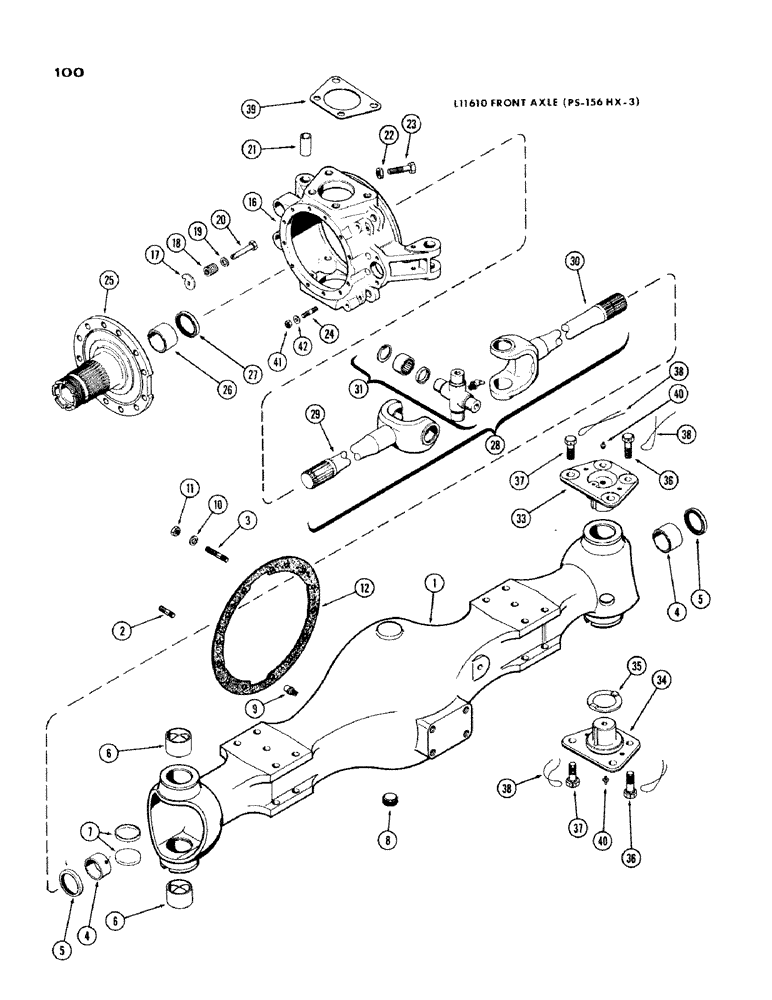

Запчасти Case IH 1200 (100) - L11610 FRONT AXLE HOUSING AND KNUCKLE (06) - POWER TRAIN

1

L30502

HOUSING ASSY. - front axle, Includes: Ref. 2 - 8

1шт.

2

L30673

STUD

- carrier to housing (3" long)

4шт.

3

A13130

STUD

- carrier to housing (2-5/8" long)

10шт.

4

A25234

BUSHING,57.63mm ID x 65.2mm OD x 31.75mm L

- universal joint & shaft support

2шт.

5

L30578

OIL SEAL

- oil, universal joint & staff

2шт.

6

L30579

BUSHING,62.94mm ID x 69.32mm OD x 46.74mm L

- steering bearing

4шт.

7

NSS

NOT SOLD SEPARAT

PLUG - steering bearing

4шт.

8

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - drain hsg., 1/4" P.T. sq. sckt. hd.

1шт.

9

A12928

BREATHER

- oil, axle housing

1шт.

10

L30674

WASHER

- carrier to housing stud

14шт.

11

131-74

LOCK NUT,1/2"-20

NUT - carrier to hsg. stud, 1/2" N.F hex. Essna

14шт.

12

A12943

GASKET

-, Serial Range: carrier-housing

1шт.

16

L30630

FLANGE ASSY. - steering knuckle, Includes: Ref. 17 - 24

2шт.

17

A13201

SHOE

CAM - brake shoe adjusting

2шт.

18

A13023

SPRING

- adjusting cam

2шт.

19

L30582

WASHER

- adjusting cam bolt

4шт.

20

L30593

BOLT

BOLT - adjusting cam

2шт.

21

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod yoke bolt

1шт.

22

L30570

NUT

- jam, steering stop screw

1шт.

23

113-651

BOLT

- stop, 5/8 x 3-1/4" N.C. hex. hd.

1шт.

24

L30575

STUD - spindle to knuckle flange

12шт.

25

L30605

SPINDLE

ASSY. - steering knuckle, Includes: Ref. 26 and 27

2шт.

26

L30581

BUSHING,57.73mm ID x 65.2mm OD x 44.45mm L

- spindle & joint

1шт.

27

L30578

OIL SEAL

- oil, spindle & joint

2шт.

28

A25148

JOINT

SHAFT ASSY. - universal joint, Includes: Ref. 29 - 31

2шт.

29

A25149

YOKE

SHAFT - outer, universal axle

1шт.

30

A25150

SHAFT

- inner, universal axle

1шт.

31

A25151

KIT

- universal spider

1шт.

33

L30600

X

CAP - upper, steering knuckle

2шт.

34

L30601

CAP

- lower, steering knuckle

2шт.

35

L30583

WASHER,63.5mm ID x 85.72mm OD x 5.21mm Thk

- thrust, knuckle bearing

2шт.

36

L30576

BOLT (SPREADER)

BOLT - knuckle cap, outer (3/4 x 2-1/8" N.C. spec.)

8шт.

37

L30571

BOLT (SPREADER)

BOLT - knuckle cap, inner

8шт.

38

NSS

NOT SOLD SEPARAT

WIRE - tie-lock

1шт.

39

L30590

SHIM

- knuckle cap (.003")

1шт.

39

L30591

SHIM

- knuckle cap (.005")

1шт.

39

L30592

SHIM

- knuckle cap (.020")

1шт.

40

L30587

X

FITTING - relief, knuckle cap

4шт.

41

A15033

LOCK NUT

- spindle mounting stud

24шт.

42

A15036

WASHER

- flange stud nut

24шт.
