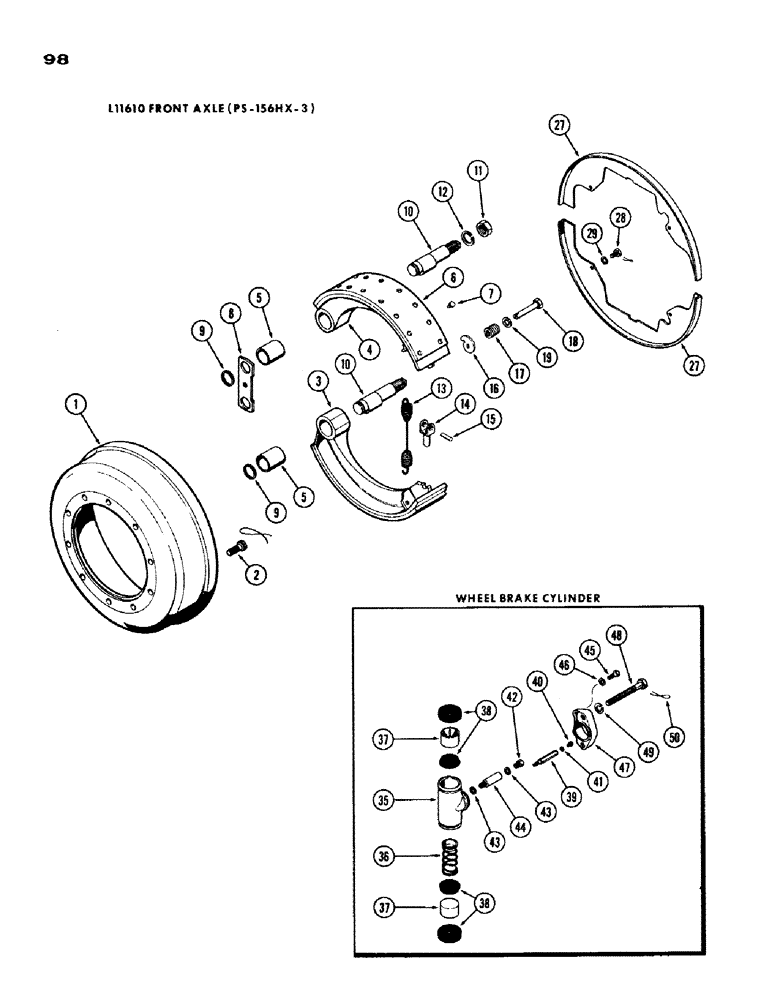

Запчасти Case IH 1200 (098) - L11610 BRONT AXLE BRAKE (06) - POWER TRAIN

1

A15045

DRUM

- brake

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake, Serial Range: drum-hub

20шт.

3

A15072

BRAKE SHOE

SHOE ASSY. - brake, R.H. upper & L.H. lower, Includes: Ref. 5 - 7

2шт.

4

A15073

SHOE

ASSY. - brake, L.H. upper & R.H. lower, Includes: Ref. 5 - 7

2шт.

5

A15062

BUSHING

- brake shoe

1шт.

6

A14998

KIT

- lining, brake, Includes: Ref. 7

1шт.

7

A15060

RIVET

- lining mounting

32шт.

8

L30584

DRAG LINK

LINK - brake shoe

2шт.

9

A28253

RING

- snap, brake shoe link

4шт.

10

L30586

PIN

- anchor, brake shoe

4шт.

11

A15063

NUT

- anchor pin

4шт.

12

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

13

A15071

SPRING

- return, brake shoe

2шт.

14

A14996

LINK

ASSY. - cylinder to shoe, Includes: Ref. 15

4шт.

15

NSS

NOT SOLD SEPARAT

PIN - link (Order Ref. 14)

1шт.

16

A13201

SHOE

CAM - shoe adjusting

4шт.

17

A13023

SPRING

- adjusting cam

4шт.

18

L30593

BOLT

BOLT - brake adjusting cam

4шт.

19

L30582

WASHER

- brake adjusting cam

8шт.

27

L30595

KIT

SHIELD - dust, upper L.H. & lower R.H.

2шт.

27

L30596

SHIELD

- dust, upper R.H. & lower L.H.

2шт.

28

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

CAPSCREW - dust shield mounting

8шт.

29

92-6

LOCK WASHER,3/8"

8шт.

A19980

CYLINDER

ASSY. - brake, wheel, Includes: Ref. 35 - 38

2шт.

35

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A19980), brake wheel

1шт.

36

A15053

SPRING

- pressure, brake wheel cylinder

1шт.

37

A15000

PISTON ASSY.

PISTON - cylinder, brake wheel

2шт.

38

A19981

KIT

- cup & boot cylinder, brake wheel

1шт.

39

A15056

SCREW,Bleed, 1/4" - 28 x 2 15/16"

- bleeder, brake, wheel cylinder

2шт.

40

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Bleeder screw, brake wheel cylinder Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Brake wheel cylinder 1/4"

2шт.

42

A12989

ADAPTER

FITTING - inlet, cylinder, brake wheel

2шт.

43

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet fitting & extension, brake wheel cylinder

4шт.

44

A15054

EXTENSION

- inlet fitting, brake wheel cylinder

2шт.

45

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- cyl. to adapter, 3/8 x 7/8" N.C. hex. hd., brake wheel cylinder

4шт.

46

92-6

LOCK WASHER,3/8"

brake wheel cylinder 3/8"

4шт.

47

L30602

ADAPTER

- wheel cylinder, brake

2шт.

48

113-322

BOLT - adapter mtg., 7/16 x 4-1/2" N.C. hex. hd., brake wheel cylinder

4шт.

49

92-7

LOCK WASHER,7/16"

brake wheel cylinder 7/16"

4шт.

50

NSS

NOT SOLD SEPARAT

WIRE - lock, brake wheel cylinder

1шт.
