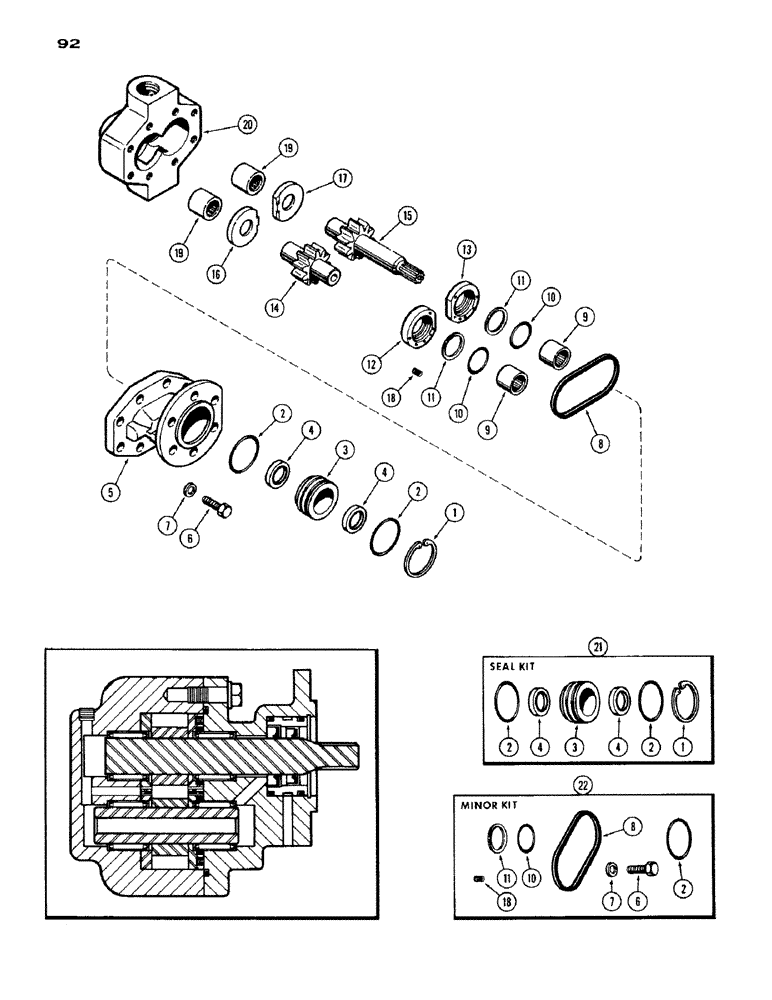

Запчасти Case IH 1200 (092) - OIL PUMP (06) - POWER TRAIN

A17373

PUMP

ASSY. - transmission oil charging, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

RING - seal retaining (Order Ref. 21)

1шт.

2

NSS

NOT SOLD SEPARAT

"O" RING - seal retainer (Order Ref. 21 or 22)

2шт.

3

NSS

NOT SOLD SEPARAT

RETAINER ASSY. - seal (Order Ref. 21), Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, shaft (Order Ref. 21)

2шт.

5

NSS

NOT SOLD SEPARAT

COVER - front, pump (Order A17373)

1шт.

6

NSS

NOT SOLD SEPARAT

CAPSCREW - front cover mtg. (Order Ref. 22)

8шт.

7

NSS

NOT SOLD SEPARAT

WASHER - cover capscrew (Order Ref. 22)

8шт.

8

NSS

NOT SOLD SEPARAT

SEAL - front cover (Order Ref. 22)

1шт.

9

NSS

NOT SOLD SEPARAT

BEARINGS - front cover gear shaft (Order A17373)

2шт.

10

NSS

NOT SOLD SEPARAT

"O" RING - journal (Order Ref. 22)

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER - backup, journal "O" ring (Order Ref. 22)

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE - thrust, drive gear frt. (Order A17373)

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - thrust, drive gear frt. (Order A17373)

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - pump driven (Order A17373)

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - pump driver (Order A17373)

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - thrust, driven gear rear (Order A17373)

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - thrust, drive gear rear (Order A17373)

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - front thrust plate (Order Ref. 22)

10шт.

19

NSS

NOT SOLD SEPARAT

BEARING - body gear shaft (Order A17373)

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - oil pump (Order A17373)

1шт.

21

A18338

SEAL

KIT - drive shaft seal

1шт.

22

A18335

KIT

- pump minor repair

1шт.
