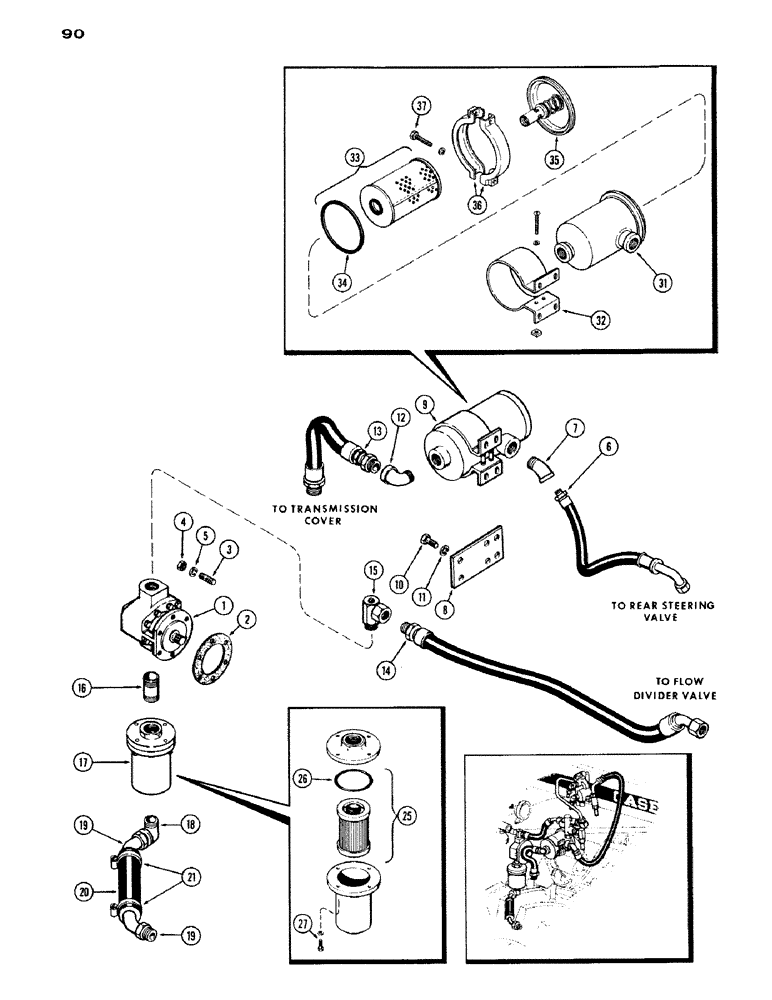

Запчасти Case IH 1200 (090) - TRANSMISSION OIL PUMP AND FILTER SYSTEM (06) - POWER TRAIN

1

A17373

PUMP

ASSY. - oil charging (Repairs, F.93)

1шт.

2

A18019

GASKET

-, Serial Range: pump-transmission

1шт.

3

A18018

STUD - pump mounting

6шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

6шт.

5

92-6

LOCK WASHER,3/8"

6шт.

6

L10114

HOST - return, filter

1шт.

7

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- filter inlet, 3/4" pipe x 45 deg.

1шт.

8

L10124

BRACKET - filter mounting

1шт.

9

D22660

AIR INTAKE TUBE

FILTER ASSY. - transmission oil, inlet

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Filter & bracket mounting Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6шт.

12

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- filter outler, 3/4" pipe x 90 deg.

1шт.

13

L10094

HOSE - transmission oil return

1шт.

14

L10096

HOSE - pump to flow diverter

1шт.

15

L10095

ELBOW - pump outlet 90 deg.

1шт.

16

221-1236

FITTING,Nipple, 1" NPT x 1 1/2"

NIPPLE - filter to pump, 1 x 1-1/2" pipe

1шт.

17

L10123

FILTER ASSY. - transmission oil, outlet

1шт.

18

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- filter inlet, 1" pine x 90 deg.

1шт.

19

A19630

ELBOW - filter inlet hose 45 deg.

2шт.

20

L10093

HOSE -, Serial Range: transmission-filter

1шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

L10123

FILTER ASSY. - transmission oil, outlet, Includes: Ref. 25 and 26

1шт.

25

L30036

ELEMENT

KIT - filter, outlet oil, Includes: Ref. 26

1шт.

26

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

"O" RING - filter head, outlet oil

1шт.

27

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW - head mtg., 1/4 x 7/8" N.C. flat hd., outlet oil filter

4шт.

D22660

AIR INTAKE TUBE

FILTER ASSY. - transmission oil, inlet, Includes: Ref. 31 - 37

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - filter (Order D22660), inlet oil

1шт.

32

A13210

BRACKET - filter retaining, inlet oil

1шт.

33

A13211

FILTER, ENGINE OIL

ELEMENT KIT - filter, inlet oil, Includes: Ref. 34

1шт.

34

A13208

GASKET

GASKET - filter cover, inlet oil

1шт.

35

D22653

COVER

ASSY. - filter, inlet oil

1шт.

36

D22658

BOLT

CLAMP - cover (Set of 2 halves), inlet oil filter

1шт.

37

D22659

BOLT (SPREADER)

BOLT - clamp retainer, inlet oil filter

2шт.
