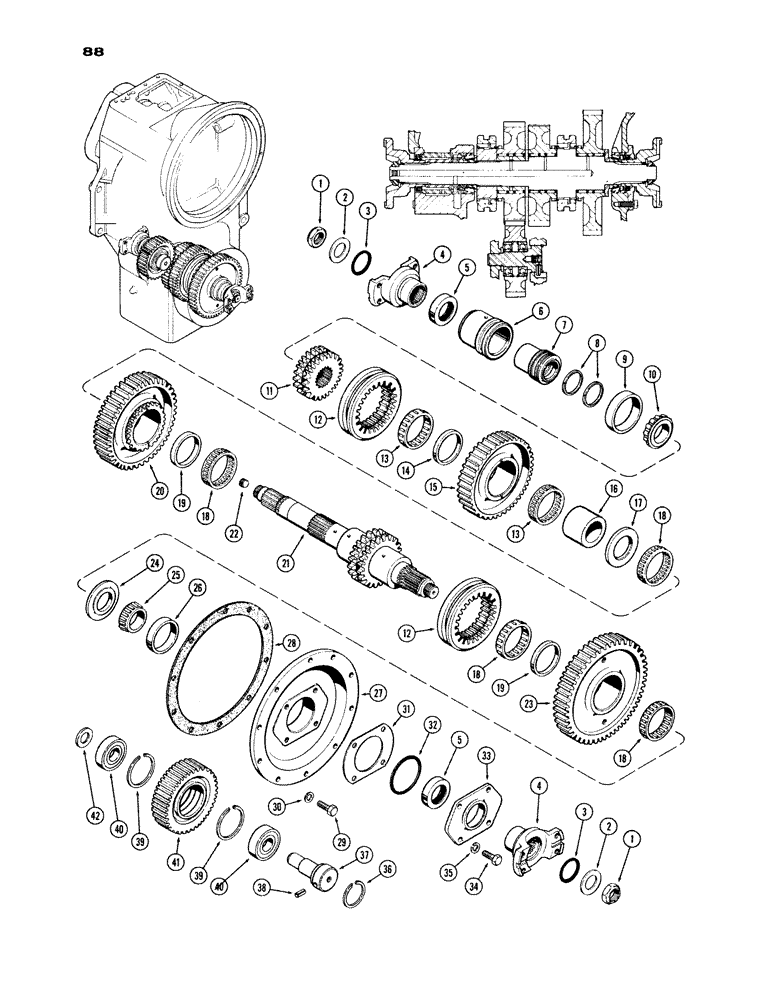

Запчасти Case IH 1200 (088) - TRANSMISSION OUTPUT SHAFT AND REVERSE IDLER (06) - POWER TRAIN

1

A55829

NUT - output shaft flange

2шт.

2

A55828

WASHER

- output flange nut

2шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

"O" RING - output flange

2шт.

4

A55827

FLANGE - output shaft (REPLACES A35827)

2шт.

5

A55817

OIL SEAL,60.33mm ID x 79.55mm OD x 11.11mm Thk

- oil, output shaft

2шт.

6

A55822

DISTRIBUTOR - output shaft outer oil

1шт.

7

A55823

DISTRIBUTOR - output shaft inner oil

1шт.

8

A55824

SEAL

RING - inner distributor oil

2шт.

9

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - output shaft rear cone bearing

1шт.

10

A27301

ROLLER BEARING,2" ID x 1.193"

BEARING - cone, output shaft rear

1шт.

11

L30732

SLEEVE

- reverse shift hub

1шт.

12

A55749

HUB - reverse, 1st. & 3rd., 4th., 7th., 8th. shift

2шт.

13

L30016

BEARING

- reverse gear inner

2шт.

14

L30019

SPACER - reverse gear inner bearing

1шт.

15

A55781

GEAR

- output shaft reverse

1шт.

16

L30020

RACE - reverse gear inner bearing

1шт.

17

A55811

SPACER - reverse gear spacer

1шт.

18

L30016

BEARING

- output 1st., & 3rd., 4th., 7th., 8th. inner

4шт.

19

L30019

SPACER - output 1st., & 3rd., 4th., 7th., 8th. inner brg.

2шт.

20

L30719

GEAR - output 3rd., 4th., 7th., 8th.

1шт.

21

L30718

SHAFT

SHFAT - transmission output

1шт.

22

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. socket hd.

1шт.

23

A55814

GEAR

- output 1st., 2nd., 5th., 6th., (55T)

1шт.

24

A55782

WASHER

- thrust, 1st., 2nd., 5th., 6th. gear

1шт.

25

K7976

ROLLER BEARING

BEARING - cone, output front carrier

1шт.

26

K7975

CUP ASSY.

CUP - cone bearing, front carrier

1шт.

27

A55815

CARRIER - output shaft front bearing

1шт.

28

A55826

GASKET

- bearing carrier mounting

1шт.

29

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Carrier mounting

10шт.

30

92-7

LOCK WASHER,7/16"

10шт.

31

A55819

SHIM,.004" Thk

Front bearing cap .004" Thk

1шт.

31

A55820

SHIM - front bearing cap (.007")

1шт.

31

A55821

SHIM - front bearing cap (.010")

1шт.

32

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - front bearing cap

1шт.

33

A55816

CAP

- output shaft front bearing

1шт.

34

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Cap mounting Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

35

92-7

LOCK WASHER,7/16"

4шт.

36

L30725

RING

- reverse idler shaft retaining

1шт.

37

L30724

SHAFT - reverse idler

1шт.

38

138-170

LOCK PIN,3/8" x 1", Slotted

Pin, 3/8" x 1", Slotted

1шт.

30

L30726

RING - idler shaft bearing locating

2шт.

40

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - reverse idler shaft (Replaces L30721)

2шт.

41

L30727

GEAR - reverse idler (33T)

1шт.

42

L30729

WASHER - thrust, idler bearing

1шт.
