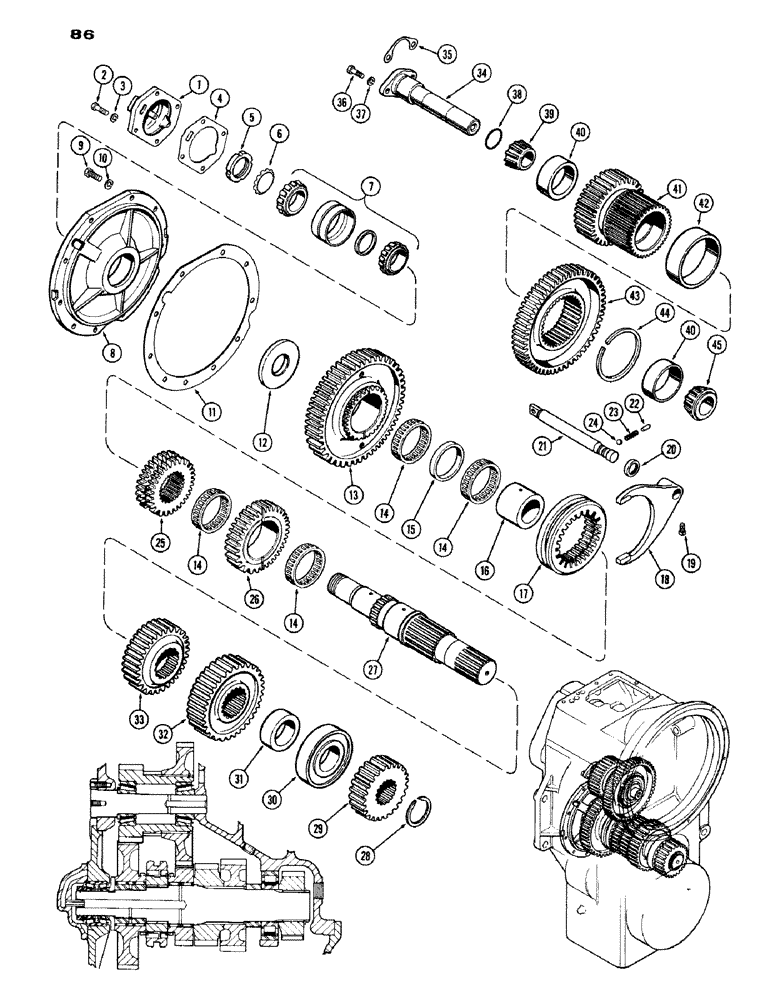

Запчасти Case IH 1200 (086) - TRANSMISSION MAIN AND INTERMEDIATE SHAFT (06) - POWER TRAIN

1

A55787

CAP ASSY. - main shaft rear bearing

14шт.

2

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Cap mounting Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

3

92-7

LOCK WASHER,7/16"

4шт.

4

A55790

GASKET - bearing cap mounting

1шт.

5

A55786

X

NUT - rear bearing lock

1шт.

6

A55785

X

WASHER - lock, rear bearing

1шт.

7

A55784

BEARING, ROLLER

BEARING ASSY. - main shaft rear

1шт.

8

A55783

CARRIER - main shaft rear bearing

1шт.

9

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Carrier mounting Hex, 7/16"-14 x 1 1/4", G5, Full Thd

10шт.

10

92-7

LOCK WASHER,7/16"

10шт.

11

A55791

GASKET

- bearing carrier mounting

1шт.

12

A55782

WASHER

- thrust, low range gear

1шт.

13

L30717

GEAR - main shaft low range (50T), Includes: Ref. 14

1шт.

14

L30016

BEARING

- main shaft low & high gear inner

4шт.

14

L30019

SPACER - low range gear inner bearing

1шт.

16

L30020

RACE - hi-low hub sleeve

1шт.

17

A55749

HUB - hi-low shift

1шт.

18

A55851

FORK - hi-low shift

1шт.

19

23095

HYDRAULIC HOSE

SCREW - shift fork lock

1шт.

20

A55855

OIL SEAL

- shift fork lock

1шт.

21

A55850

RAIL - hi-low shift

1шт.

22

A55854

PIN,6.35mm OD x 19.05mm L

- mesh lock spring

1шт.

23

A55853

SPRING - mesh lock

1шт.

24

211-12

BALL,7/16 Dia

- mesh lock, 7/16" dia. steel

1шт.

25

L30716

SLEEVE - hi-low shift hub

1шт.

26

L30715

GEAR

- main shaft hi range (37T)

1шт.

27

L30017

SHAFT - transmission main

1шт.

28

A55775

OIL SEAL

RING - main shaft frt. gear train retainer (.120")

1шт.

28

A55776

RING - main shaft frt. gear train retainer (.127")

1шт.

28

A55777

RING - main shaft frt. gear train retainer (.134")

1шт.

29

A55774

GEAR - main shaft 1st, 2nd., 5th & 6th

1шт.

30

A55773

BEARING

- main shaft gear

1шт.

31

A55762

SPACER - main shaft front bearing

1шт.

32

L30713

GEAR - main shaft 3rd., 4th, 7th & 8th. (34T)

1шт.

33

L30714

GEAR - mainshaft reverse(31T)

1шт.

34

A55799

SHAFT - intermediate idler

1шт.

35

A55802

SHIM - intermediate shaft (.004")

1шт.

35

A55803

SHIM,.007" Thk

Intermediate shaft .007" Thk

1шт.

35

A55804

SHIM,.010" Thk

Intermediate shaft .010" Thk

1шт.

36

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Shaft mounting Hex, 7/16"-14 x 1 1/4", G5, Full Thd

2шт.

37

92-7

LOCK WASHER,7/16"

2шт.

38

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - intermediate shaft

1шт.

39

A55797

ROLLER BEARING,1.625" ID x 1.59"

BEARING - cone, intermediate shaft rear

1шт.

40

A55798

CAP

CUP - cone bearing, intermediate shaft

2шт.

41

L30710

GEAR & QUILL - low (30T)

1шт.

42

A55793

SPACER - intermediate shaft gears

1шт.

43

L30711

GEAR - intermediate shaft hi (59T)

1шт.

44

A55795

RING - hi gear retaining

1шт.

45

A55796

CONE

BEARING - cone, intermediate shaft front

1шт.
