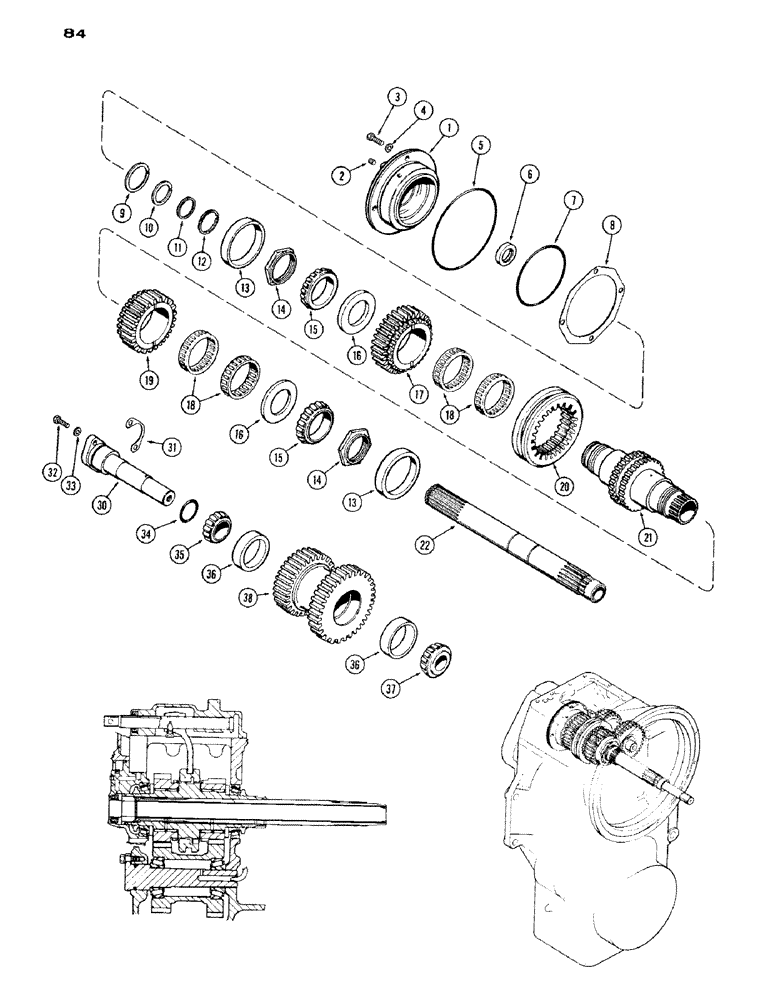

Запчасти Case IH 1200 (084) - INPUT SHAFT (06) - POWER TRAIN

1

L30201

CAP

ASSY. - input shaft bearing, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

2шт.

3

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Cap mounting Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

4

92-7

LOCK WASHER,7/16"

4шт.

5

A55801

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

"O" RING - bearing cap pilot

1шт.

6

A55755

OIL SEAL

SEAL - oil, P.T.O. shaft

1шт.

7

A55800

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

"O" RING - bearing cap

1шт.

8

A55756

SHIM,.004" Thk

Input bearing cap .004" Thk

1шт.

8

A55757

SHIM,.007" Thk

Input bearing cap .007" Thk

1шт.

8

A55758

SHIM,.010" Thk

Input bearing cap .010" Thk

1шт.

9

A55754

RING

- input shaft oil control

1шт.

10

A31078

SNAP RING,2.062", Int, #206

Thrust washer 2.062", Int, #206

1шт.

11

A55752

WASHER

- input shaft thrust

1шт.

12

A55751

RING, LOCKING

RING - drive shaft locating

1шт.

13

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - cone bearing, input grille shaft

2шт.

14

A55748

NUT

- input shaft bearing retainer

2шт.

15

T15892

TAPERED BEARING,2.625" ID x 0.866"

BEARING - cone, input grille shaft

2шт.

16

A55747

WASHER - thrust, splitter gear

2шт.

17

L30709

GEAR - input hi. (33T)

1шт.

18

L30016

BEARING

- input hi-lo gear inner

4шт.

19

A55745

GEAR - input lo (29T)

1шт.

20

A55749

HUB - input hi-low shifter

1шт.

21

L30708

SHAFT

- input quill

1шт.

22

A55750

SHAFT - input drive

1шт.

30

A55799

SHAFT - input hi-low idler, forward-reverse speed control

1шт.

31

A55802

SHIM - idler shaft (.004"), forward-reverse speed control

1шт.

31

A55803

SHIM,.007" Thk

Idler shaft, Forward-reverse speed control .007" Thk

1шт.

31

A55804

SHIM,.010" Thk

Idler shaft, Forward-reverse speed control .010" Thk

1шт.

32

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Shaft, forward-reverse speed control idler Hex, 7/16"-14 x 1 1/4", G5, Full Thd

2шт.

33

92-7

LOCK WASHER,7/16"

forward-reverse speed control idler 7/16"

2шт.

34

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING, idler shaft, forward-reverse speed control

1шт.

35

A30116

ROLLER BEARING,1.625" ID x 1.1875"

BEARING - cone, idler gear outer, forward-reverse speed control

1шт.

36

12667A1

CUP - idler shaft cone bearing, forward-reverse speed control

2шт.

37

40384

ROLLER BEARING

- cone, idler shaft ineer, forward-reverse speed control

1шт.

38

L30712

GEAR - input idler, forward-reverse speed control

1шт.
