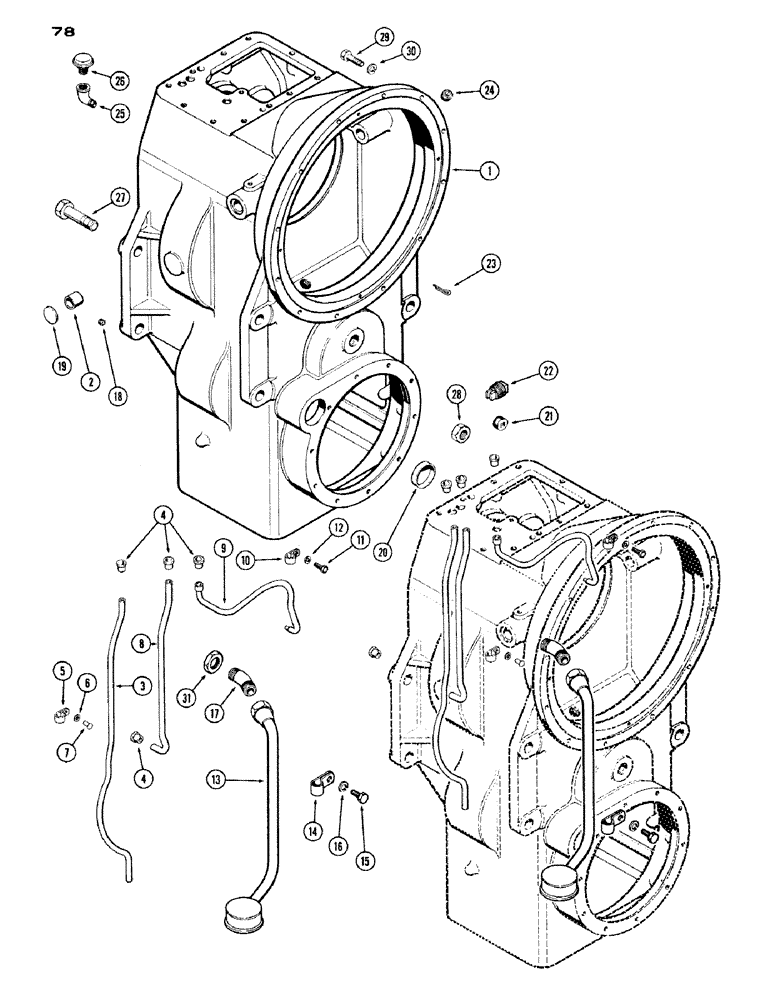

Запчасти Case IH 1200 (078) - TRANSMISSION CASE AND OIL TUBES (06) - POWER TRAIN

1

L30702

CASE ASSY. - transmission, Includes: Ref. 2 - 18

1шт.

2

A55732

WASHER

BUSHING - clutch shaft

4шт.

3

A55733

TUBE - output shaft lubrication

1шт.

4

A55734

SLEEVE

- lubrication tube

4шт.

5

A55735

CLIP - lubrication tube

1шт.

6

A55736

WASHER - tube clip

1шт.

7

45-522

RIVET - tube clip, 5/16 x 1-3/8" button hd.

1шт.

8

A55737

TUBE - main shaft lubricating

1шт.

9

L30704

TUBE - hi-low speed control lubricating .25, .375" OD

1шт.

10

A55739

CLIP - lubrication tube

1шт.

11

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Clip Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

L30703

TUBE ASSY. - oil suction 1.0035" OD

1шт.

14

L30706

NO LONGER SERVICED

CLIP - suction tube retaining

1шт.

15

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Clip Hex, 7/16"-14 x 1", G5, Full Thd

1шт.

16

92-7

LOCK WASHER,7/16"

1шт.

17

L30705

X

CONNECTOR - suction tube

1шт.

18

221-1843

PLUG

- pipe, 3/8" hex. socket hd.

2шт.

19

41-24

PLUG

- shaft end, 1-1/2" Dia. expansion

1шт.

20

L30728

PLUG - trans. case bore

1шт.

21

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" square socket hd.

1шт.

22

211-679

PLUG - drain, 1" pipe sq. hd. magnetic

1шт.

23

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Extended prong 1/4" x 1 1/2"

1шт.

24

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4" hex. socket hd.

1шт.

25

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- breather, 90 deg. street x 3/8" P.T.

1шт.

26

A17947

BREATHER

ASSY. - transmission oil

1шт.

27

113-800

BOLT - trans. mtg., 7/8 x 3-3/4" N.C. hex. hd.

4шт.

28

131-48

LOCK NUT,1/4"-20, GB

NUT - 7/8" N.C. hex., Esna.

4шт.

29

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Trans. mtg. Hex, 7/16"-14 x 1 3/4", G5

12шт.

30

92-7

LOCK WASHER,7/16"

12шт.

31

L30899

END FITTING

NUT - seal, suction tube connector

1шт.
