Запчасти Case IH 1200 (076) - CLUTCH PEDAL AND TRANSMISSION LUBRICATION (06) - POWER TRAIN

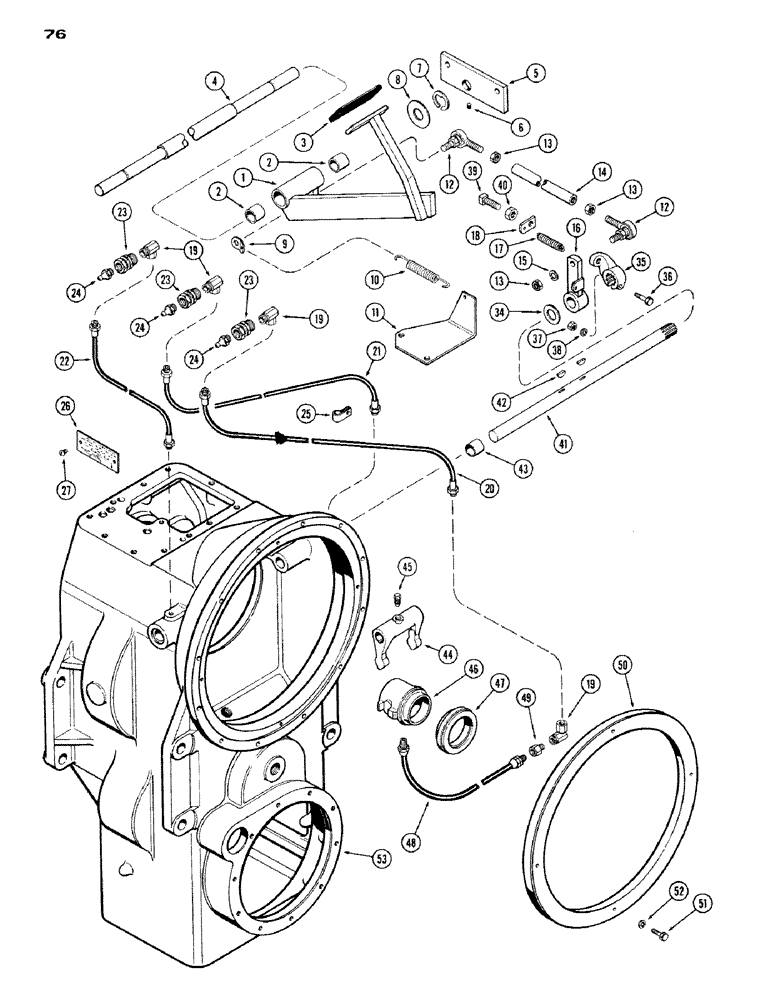

Схема запчастей Case IH 1200 - (076) - CLUTCH PEDAL AND TRANSMISSION LUBRICATION (06) - POWER TRAIN
53
23
2
14
37
12
34
41
52
50
17
7
1
15
11
26
6
19
36
16
27
2
5
18
48
38
43
4
24
13
24
47
19
46
3
39
9
12
23
24
8
51
13
19
23
25
44
49
13
35
45
42
40
20
22
10
21

Артикул

Название

Примечание

Количество

1

A55507

PEDAL ASSY. - clutch, Includes: Ref. 2

1шт.

2

A30845

BUSHING

- clutch pedal pivot

2шт.

3

F9197

PAD

- pedal foot

1шт.

4

L10530

SHAFT - clutch & brake pedal

1шт.

5

L10516

SUPPORT - shaft

2шт.

6

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16 x 1/2" hex. sckt. hd., cup pt.

2шт.

7

D21476

"E" RING - clutch pedal retaining

2шт.

8

195-111

WASHER,1"

- plain, 1-1/16 x 2-1/2 x 11/64"

2шт.

9

A26656

CLIP - pedal return spring

1шт.

10

L10873

SPRING

- pedal return

1шт.

11

A56106

BRACKET - return spring

1шт.

12

A55558

BALL JOINT

END ASSY. - link rod

2шт.

13

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex.

4шт.

14

A55722

LINK - pedal to clutch lever

1шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

L10874

LEVER - clutch release

1шт.

17

A31080

VALVE SPRING

SPRING - clutch lever return

1шт.

18

L10876

CLIP - lever return spring

1шт.

19

A56180

X

ELBOW ASSY. - lube hose

4шт.

20

A56178

HOSE - clutch release brg. lube (37")

1шт.

21

A56177

HOSE - clutch release lower lube (30")

1шт.

22

A56176

HOSE - clutch release upper lube (13")

1шт.

23

A56179

X

COUPLING - lubrication

3шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" straight

3шт.

25

A7922

CLIP

- lube hose retaining

2шт.

26

L10716

PLATE - lubrication instruction

1шт.

27

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- plate, #6 x 3/8" rd. hd. drive

2шт.

L11918

TRANSMISSION ASSY. - eight speed (complete) (Incl. Refs. 35 - 53 & figures 79 - 93), clutch release

1шт.

35

L30037

LEVER

ASSY. - clutch pedal adjusting, transmission release, Includes: Ref. 36 - 40

1шт.

36

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- lever, 3/8 x 1-3/4" N.F. hex. hd., transmission clutch release

1шт.

37

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., transmission clutch release

1шт.

38

92-6

LOCK WASHER,3/8"

transmission clutch release 3/8"

1шт.

39

A56139

SCREW - adjusting lever, transmission clutch release

1шт.

40

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., transmission clutch release

1шт.

41

A55845

SHAFT - clutch release, transmission

1шт.

42

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - yoke to shaft, #11 Woodruff, transmission clutch release

2шт.

43

A55732

WASHER

BUSHING - clutch shaft, transmission release

4шт.

44

A55846

YOKE - clutch release, transmission

1шт.

45

A55847

SCREW - clutch yoke lock, transmission release

1шт.

46

A55843

HOLDER

CARRIER - clutch release bearing, transmission

1шт.

47

A55844

BALL BEARING

BEARING - clutch release, transmission

1шт.

48

A56138

HOSE

- bearing carrier lubricating, transmission clutch release

1шт.

49

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - tube to case, transmission clutch release

1шт.

50

A55742

RING - pilot, clutch housing, transmission release

1шт.

51

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pilot ring, transmission clutch release Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

52

92-6

LOCK WASHER,3/8"

transmission clutch release 3/8"

4шт.

53

L30702

CASE ASSY. - transmission (See page 79), clutch release

1шт.
