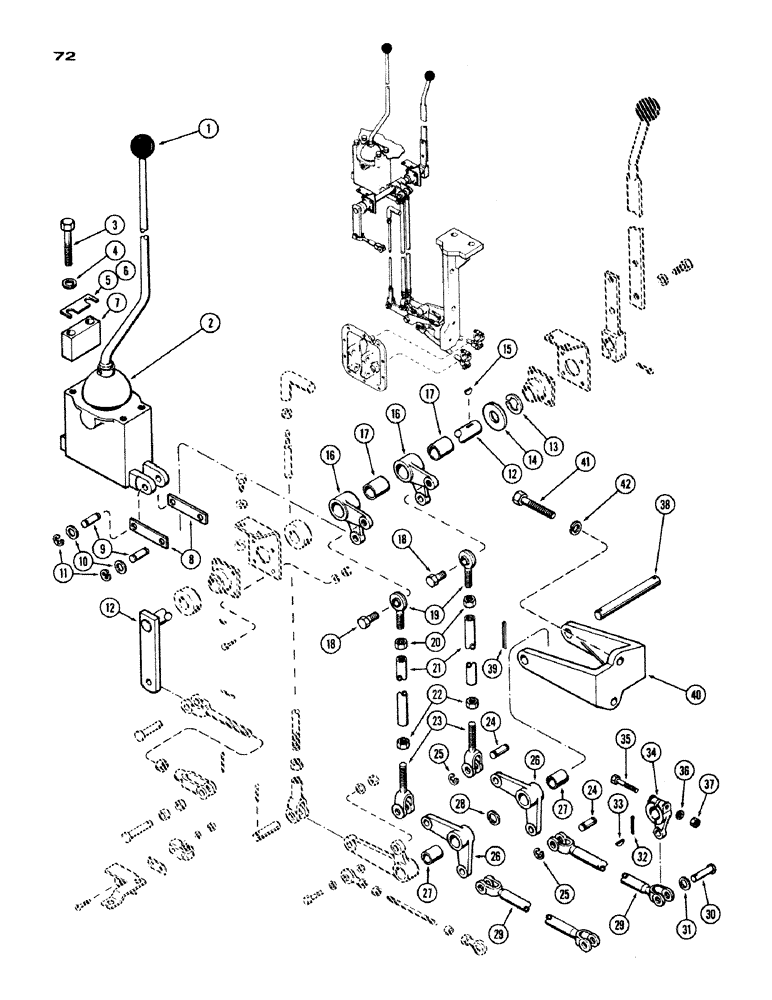

Запчасти Case IH 1200 (072) - TRANSMISSION RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A18852

KNOB

- range shift hand lever

1шт.

2

L10542

CONTROL ASSY. - range shift (Repairs, F. 75)

1шт.

3

13-427

BOLT - control mtg., 1/2 x 3-1/4" N.C. hex. hd.

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

L10544

SHIM - control assembly mtg. (16 GA)

1шт.

6

L10545

SHIM - control assembly mtg. (22 GA)

1шт.

7

L10543

BLOCK - control assembly mounting

2шт.

8

L10546

LINK -, Serial Range: control-bellcrank

4шт.

9

L10547

PIN

- control shift link

4шт.

10

A19541

WASHER

- control pin (dished)

4шт.

11

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , link pin #50, .392" Dia, E-Type

8шт.

12

L10533

SHAFT - bellcrank mounting

1шт.

13

D21476

"E" RING - bellcrank retaining

2шт.

14

195-111

WASHER,1"

- plain, 1-1/16 x 2-1/2 x 11-64"

2шт.

15

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY - shaft, #7 Woodruff

1шт.

16

L10548

BELLCRANK ASSY. - upper range shift, Includes: Ref. 17

2шт.

17

A23914

X

BEARING - bellcrank

1шт.

18

L10554

BOLT - shoulder, shift link (1/2" thread size)

2шт.

19

L10552

END ASSY. - range shift link

2шт.

20

129-165

JAM NUT,Jam, 1/2"-20, G5

2шт.

21

L10551

TUBE - range shift link upper 30.5" L

2шт.

22

129-376

NUT,Jam, 1/2"-20, G5, LH

- jam, 1/2" N.F. hex. (L.H. thread)

2шт.

23

L10553

YOKE - shift link lower

2шт.

24

L10547

PIN

- shift, Serial Range: link-bellcrank

4шт.

25

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , link pin #50, .392" Dia, E-Type

8шт.

26

L10555

ARM ASSY.

BELLCRANK ASSY. - lower range shift, Includes: Ref. 27

2шт.

27

A27145

BUSHING

- bellcrank

1шт.

28

L10557

SPACER - bellcrank

1шт.

29

L10560

LINK - lower range shift

2шт.

30

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" diameter

2шт.

31

195-534

WASHER

- plain, 9/16 x 1-1/4 x 1/8"

2шт.

32

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

33

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Spool #9, 3/16" x 3/4"

2шт.

34

L10562

LEVER - link to transmission shift

2шт.

35

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

38

L10559

SHAFT

- bellcrank pivot

1шт.

39

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

40

A55598

BRACKET - bellcrank shaft

1шт.

41

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket mtg. Hex, 3/8"-16 x 1 1/2", G5

2шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
