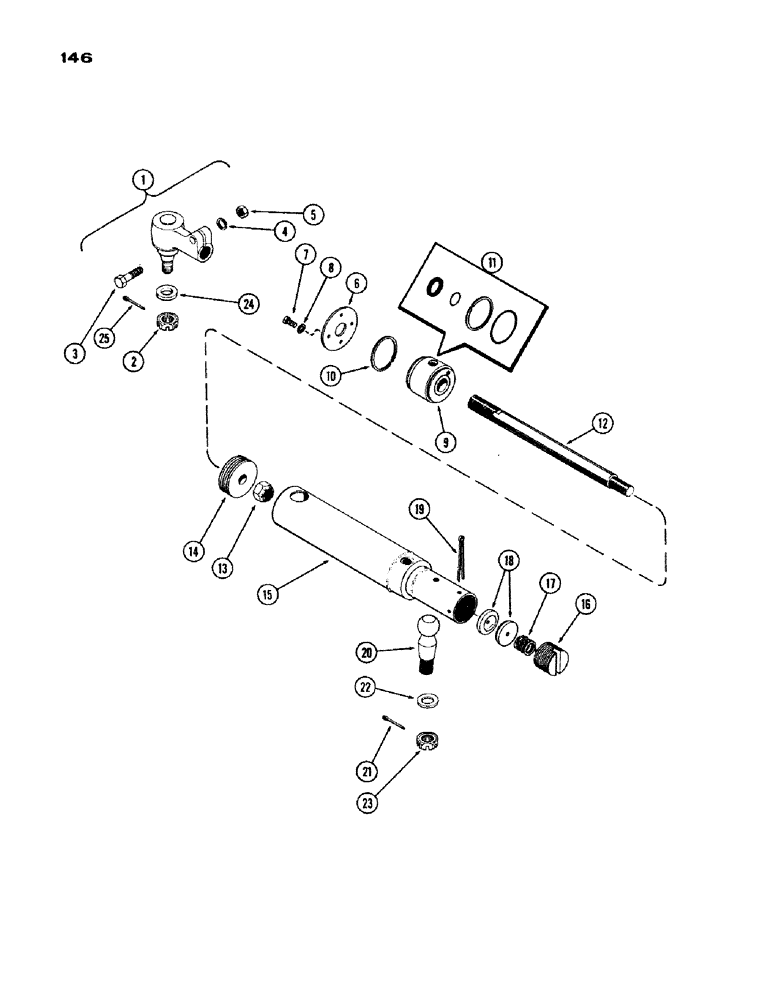

Запчасти Case IH 1200 (146) - STEERING CYLINDER (05) - STEERING

L11649

CYLINDER ASSY. - rear steering, Includes: Ref. 1 - 21

1шт.

1

L30655

SOCKET ASSY.- cylinder, Includes: Ref. 2

1шт.

2

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle, Socket stud 7/8"-14, G5, Thk

1шт.

3

16-836

X

BOLT - socket, 1/2 x 2-1/4" N.F. hex. hd

1шт.

4

92-8

LOCK WASHER,1/2"

1шт.

5

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.F.

1шт.

6

A56207

COVER - cylinder end

1шт.

7

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

End cover Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

A56200

GLAND ASSY. - cylinder, Includes: Ref. 10

1шт.

10

A56206

RING - gland retaining

1шт.

11

A25108

KIT - cylinder gland seal

1шт.

12

A55887

ROD - cylinder piston

1шт.

13

131-152

HARDWARE

NUT - jam, 3/4"-16 hex. lock

1шт.

14

L30001

PISTON ASSY. - cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

HEAD & BODY - cylinder (Order L11649)

1шт.

16

A55959

PLUG - socket ball adjusting

1шт.

17

A55958

SPRING - socket ball seat

1шт.

18

A55957

SEAT

- socket ball

2шт.

19

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

20

A55889

STUD

- cylinder end ball

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

195-45

WASHER,3/4"

- plain, 7/8"

1шт.

23

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle, Ball stud 7/8"-14, G5, Thk

1шт.

24

A12071

WASHER

- socket assembly

1шт.

25

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
