Запчасти Case IH 1200 (140) - STEERING VALVE (05) - STEERING

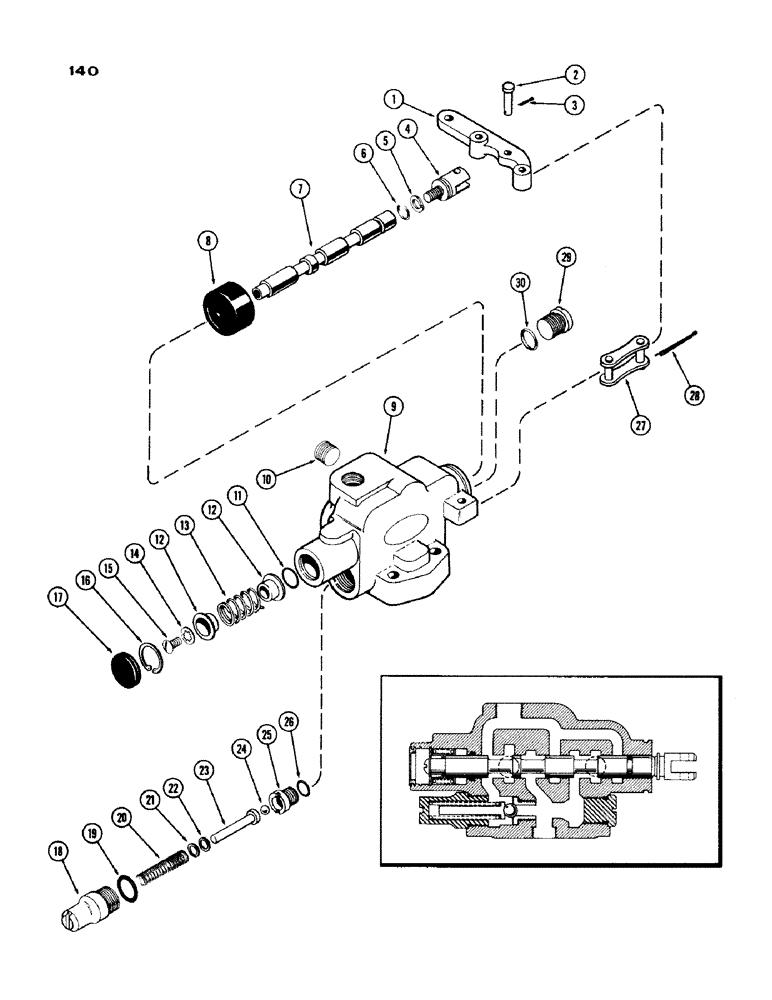

Схема запчастей Case IH 1200 - (140) - STEERING VALVE (05) - STEERING
12
19
11
12
15
28
4
16
1
14
26
9
20
30
8
23
7
13
5
6
17
10
25
27
21
24
22
3
18
29
2

Артикул

Название

Примечание

Количество

A55168

VALVE ASSY. - rear steering, Includes: Ref. 1 - 30

1шт.

1

A55910

HANDLE - operating

1шт.

2

D23693

AXLE PIN

PIN - handle mounting

1шт.

3

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

4

A55904

ADAPTER -, Serial Range: handle-spool

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - spool (5/8" O.D.)

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A55168)

1шт.

8

A55903

COVER - dust (rubber)

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve (Order A55168)

1шт.

10

221-1843

PLUG

- pipe, 3/8" sq. socket hd.

2шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - spool (13/16" O.D.)

1шт.

12

A55901

COLLAR - stop

2шт.

13

A40020

SPRING - spool centering

1шт.

14

36628

LOCK WASHER

- lock, retainer screw

1шт.

15

36626

HOSE CLIP

SCREW - stop collar

1шт.

16

A55896

RING - snap, stop collar

1шт.

17

A55906

DIAPHRAGM

BONNET - diaphragm

1шт.

18

A55900

BODY - relief valve

1шт.

19

A55911

O-RING,0.807" ID

"O" RING - relief body

1шт.

20

A55892

SPRING - relief

1шт.

21

A55894

SHIM,.0209" Thk

Relief spring .0209" Thk

1шт.

22

A55893

SHIM,.0418" Thk

Relief spring .0418" Thk

1шт.

23

A55891

GUIDE - relief spring and ball

1шт.

24

211-11

BALL,3/8" Dia

- relief (. steel) 3/8" Dia

1шт.

25

A55899

SEAT - relief ball and spring

1шт.

26

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O" RING - relief seat

1шт.

27

D23696

DRAG LINK

LINK - handle

1шт.

28

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

29

A55909

PLUG - relief end port

1шт.

30

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - plug

1шт.

Выбрано товаров: 31
