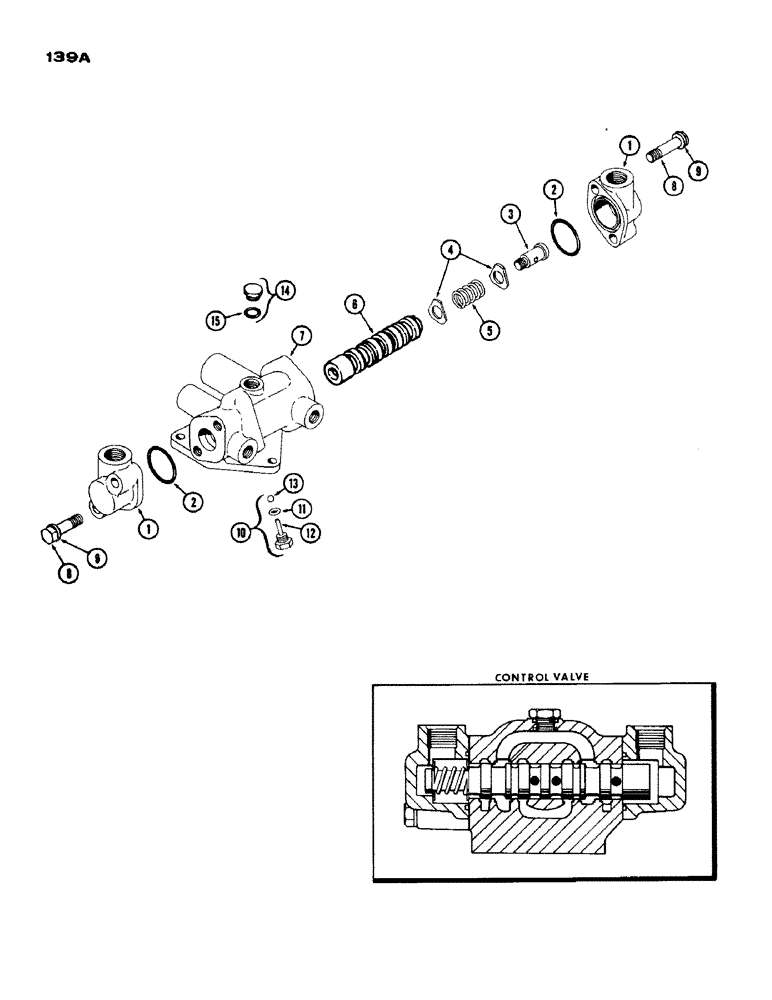

Запчасти Case IH 1200 (139A) - L11825 CONTROL VALVE, 1ST USED TRACTOR SERIAL NUMBER 9806280 (05) - STEERING

L11825

VALVE ASSY. - control, Includes: Ref. 1 - 15

1шт.

1

F19624

CAP

- end, valve

2шт.

2

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap

2шт.

3

F19623

SCREW,3/8" - 24 x 15/16"

- spool centering

1шт.

4

F19691

WASHER - centering screw

2шт.

5

L30400

SPRING - centering screw tension

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order L11825)

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve (Order L11825)

1шт.

8

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap, (3/8 x 2" N.C. hex. hd.)

4шт.

9

F19626

WASHER - end cap bolt

4шт.

10

F82944

PLUG

ASSY. - relief, valve, Includes: Ref. 11 and 12

1шт.

11

F19630

O-RING

"O" RING - relief plug

1шт.

12

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

13

211-7

BALL,1/4" Dia

- relief plug (1/4" dia. stud) 1/4" Dia

1шт.

14

F83122

PLUG

ASSY. - valve top port, Includes: Ref. 15

1шт.

15

F19628

O-RING

"O" RING - top port plug

1шт.
