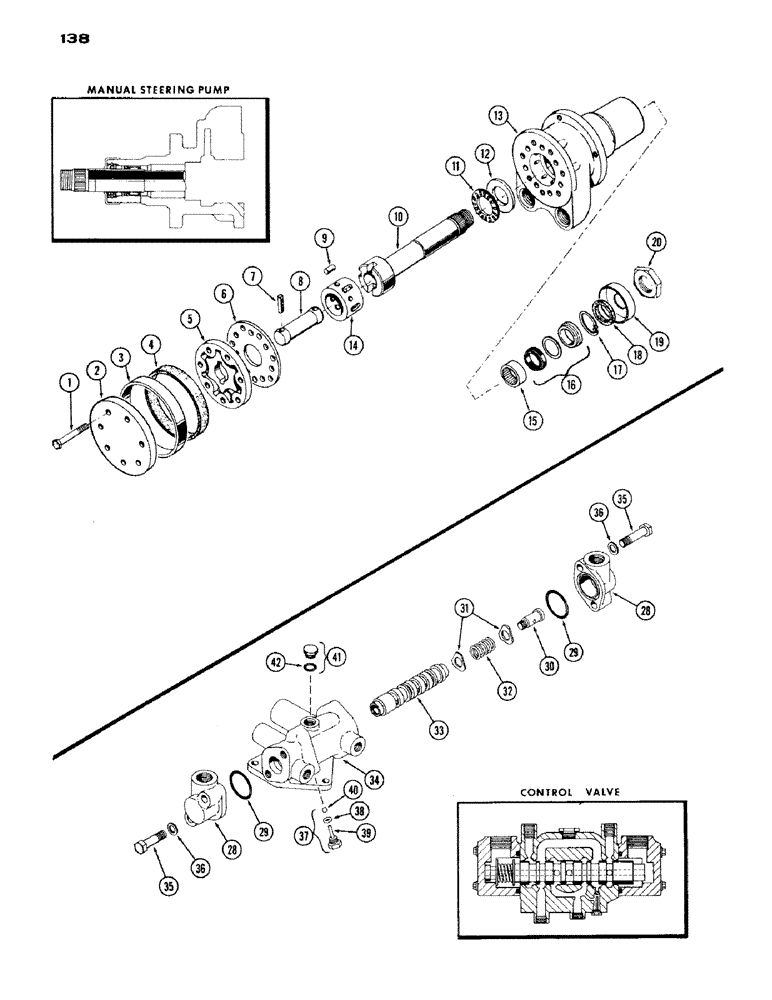

Запчасти Case IH 1200 (138) - MANUAL PUMP (05) - STEERING
№
Артикул
Название
Примечание
Количество
A35579
PUMP
ASSY. - manual steering, Includes: Ref. 1 - 20
1шт.
1
F19642
SCREW - end cover mtg.
7шт.
2
F19641
COVER - pump end
1шт.
3
A35787
RETAINER
- seal
1шт.
4
84286702
RUBBER SEAL
- rotor
1шт.
5
A35786
STATOR
- rotor set
1шт.
6
F19637
SPACER
PLATE - spacer
1шт.
7
F19636
PIN
- link, rotor
2шт.
8
F19635
LINK
- rotor drive
1шт.
9
F19631
PIN
- commutator
1шт.
10
A40735
SHAFT
- coupling
1шт.
11
F19633
NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W
BEARING - thrust
1шт.
12
F19634
BEARING WASHER
RACE - thrust bearing
1шт.
13
F82945
BODY
ASSY. - manual pump, Includes: Ref. 14 and 15
1шт.
14
NSS
NOT SOLD SEPARAT
COMMUTATOR - pump
1шт.
15
A30588
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W
BEARING - needle, coupling shaft
1шт.
16
A40624
SEAL
ASSY. - spacer & washer
1шт.
17
A21145
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125, seal
1шт.
18
F19645
BUSHING
- water seal (felt)
1шт.
19
F19644
SEAL
- water
1шт.
20
A14567
JAM NUT
- coupling shaft
1шт.
L11389
VALVE ASSY. - control, Includes: Ref. 28 - 42
1шт.
28
F19624
CAP
- end, valve
2шт.
29
F21003
O-RING,1.237" ID x 1.443" OD
"O" RING - end cap
2шт.
30
F19623
SCREW,3/8" - 24 x 15/16"
- spool centering
1шт.
31
F19691
WASHER - centering screw
2шт.
32
L30400
SPRING - centering screw tension
1шт.
33
NSS
NOT SOLD SEPARAT
SPOOL - valve (Order L11389)
1шт.
34
NSS
NOT SOLD SEPARAT
BODY - valve (Order L11389)
1шт.
35
L30404
CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"
BOLT - end cap, 3/8 x 2" N.C. hex. hd.
4шт.
36
F19626
WASHER - end cap bolt
4шт.
37
F82944
PLUG
ASSY. - relief, valve, Includes: Ref. 38 and 39
1шт.
38
F19630
O-RING
"O" RING - relief plug
1шт.
39
138-60
LOCK PIN,1/8" x 15/16", Slotted
PIN, 1/8" x 15/16", Slotted
1шт.
40
211-7
BALL,1/4" Dia
- relief plug (1/4" dia. stud) 1/4" Dia
1шт.
41
F83122
PLUG
ASSY. - valve top port, Includes: Ref. 42
1шт.
42
F19628
O-RING
"O" RING - top port plug
1шт.
Выбрано товаров: 37
