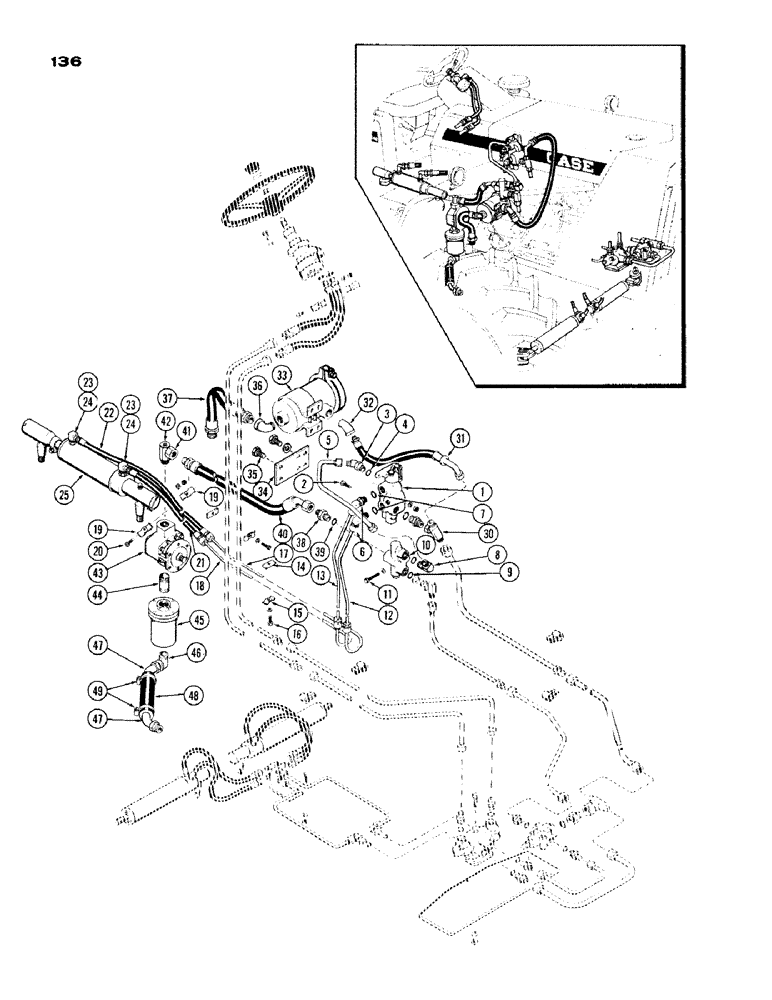

Запчасти Case IH 1200 (136) - REAR POWER STEERING (05) - STEERING

1

A55168

VALVE ASSY. - rear steering (Repairs, F. 141)

1шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Valve mounting Hex, 3/8"-16 x 1 3/4", G5

2шт.

3

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - Valve inlet 45 deg., Incl. Ref 4

1шт.

5

L10116

TUBE ASSY. - flow divider to rear strg. valve 0.5" OD

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Includes: Ref. 7 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

8

L10115

X

ELBOW ASSY. - flow divider 90 deg., Includes: Ref. 9

1шт.

10

L10092

VALVE

ASSY. - flow divider (Repairs, F. 143)

1шт.

11

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Valve mtg. Hex, 1/4"-20 x 2", G5

2шт.

12

A55318

TUBE ASSY. - lower valve to rear cylinder

1шт.

13

A55317

TUBE ASSY. - upper valve to rear cylinder

1шт.

14

A16769

WASHER

SPACER - rear steering tube

2шт.

15

A12032

CLAMP

- rear steering tube

2шт.

16

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- clamp mtg., 5/16 x 1-1/2" N.C. hex

2шт.

17

A55649

TUBE ASSY. - cylinder rear port hose

1шт.

18

A55648

TUBE ASSY. - cylinder front port hose

1шт.

19

R15257

CLAMP

- rear cylinder hose

2шт.

20

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- clamp mtg., 5/16 x 1-1/2" N.C. hex

1шт.

21

L11650

HOSE - cylinder front port (19-5/8")

1шт.

22

L11651

HOSE - cylinder rear port (29-3/4")

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - cylinder hose 90 deg., Includes: Ref. 24

2шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

25

L11649

CYLINDER ASSY. - rear steering (Repairs, F. 147)

1шт.

30

L10111

X

TEE - relief valve return, front rear steering transmission flow

1шт.

31

L10114

HOSE - filter return, front rear steering transmission flow

1шт.

32

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 3/4" pipe x 45 deg., front rear steering transmission flow

1шт.

33

D22660

AIR INTAKE TUBE

FILTER ASSY. - oil inlet (Repairs, F. 91), front rear steering transmission flow

1шт.

34

L10124

BRACKET - filter mounting, front rear steering transmission flow

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Filter & bracket mounting, front rear steering transmission flow Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

36

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- outlet, 3/4" pipe x 90 deg., front rear steering transmission flow

1шт.

37

L10094

HOSE - transmission oil return, front rear steering flow

1шт.

38

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR ASSY. - flow divider inlet hose, front rear steering transmission, Includes: Ref. 39

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - connector, 59/64 x 1-5/32 x 7/64", front rear steering transmission flow

1шт.

40

L10096

HOSE - pump to flow divider, front rear steering transmission

1шт.

41

L10095

ELBOW ASSY. - pump outler 90 deg., front rear steering transmission flow, Includes: Ref. 42

1шт.

42

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/8" sq. hd., front rear steering transmission flow

1шт.

43

A17373

PUMP

ASSY. - transmission oil (Repairs, F. 93), front rear steering flow

1шт.

44

221-12136

NIPPLE - outlet, 1 x 1/2" pipe, front rear steering transmission flow

1шт.

45

L10123

FILTER ASSY. - trans. oil outlet (Repairs, F. 91), front rear steering flow

1шт.

46

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- inlet, 1" pipe x 90 deg., front rear steering transmission flow

1шт.

47

A19630

ELBOW - hose 45 deg., front rear steering transmission flow

2шт.

48

L10093

HOSE - transmission to filter, front rear steering flow

1шт.

49

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4", front rear steering transmission flow

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - elbow, 41/64 x 13/64 x 3/32"

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - elbow, 41/64 x 13/64 x 3/32"

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - elbow, 41/64 x 13/64 x 3/32"

1шт.
