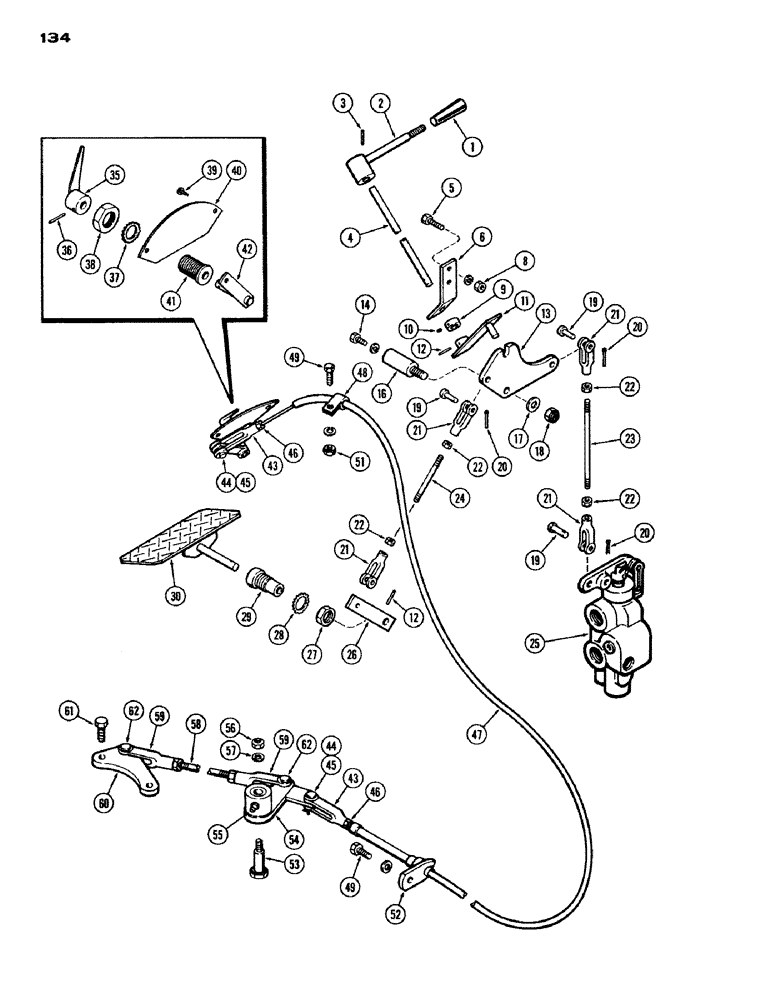

Запчасти Case IH 1200 (134) - REAR STEERING CONTROL LINKAGE (05) - STEERING

1

NLS

NO LONGER SERVICED

- hand control lever

1шт.

2

L10623

LEVER - rear steering hand lever

1шт.

3

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

4

L10626

SHAFT - rear steering lever

1шт.

5

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Bracket Hex, 1/4"-20 x 1", G5

2шт.

6

L10612

BRACKET ASSY. - hand lever

1шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

L10627

COLLAR ASSY. - rear steering shaft, Includes: Ref. 10

1шт.

10

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" N.C., cup point

1шт.

11

L10628

ARM - hand control steering

1шт.

12

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

2шт.

13

L10631

BELLCRANK - rear steering

1шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Pitot, Includes: Ref. 16 Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

16

L11761

PIVOT - steering bellcrank

1шт.

17

195-533

WASHER,1/2", SAE

- plain, 17/32 x 1-1/16 x 3/16"

1шт.

18

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna 1/2"-13, GB

1шт.

19

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

20

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 3/4 x 5/8"

4шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adj. clevis, 5/16" N.F. SAE

4шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex.

4шт.

23

L10640

ROD - control valve

1шт.

24

L10632

ROD - rear steering foot control

1шт.

25

A55168

VALVE ASSY. - rear strg. control (Repairs, F. 141)

1шт.

26

L10633

ARM - rear steering foot control

1шт.

27

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N.F. hex.

1шт.

28

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

29

L10638

BUSHING ASSY. - foot control

1шт.

30

L10034

PEDAL - rear steering foot control

1шт.

35

A55478

POINTER - indicator dial, rear steering indicator

1шт.

36

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, , rear steering indicator 3/32" x 3/4", Slotted

1шт.

37

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4", Rear steering indicator

1шт.

38

25-1512

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.F. hex., rear steering indicator

1шт.

39

168-68

SCREW - drive, #6 x 3/8", rear steering indicator

2шт.

40

L10642

DIAL - rear steering indicator

1шт.

41

L10641

SUPPORT - indicator pointer, rear steering

1шт.

42

L10643

ARM - indicator pointer, rear steering

1шт.

43

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - clevis, indicator arm, rear steering

2шт.

44

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis yoke, rear steering indicator

2шт.

45

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Rear steering indicator 1/16" x 1/2"

2шт.

46

129-27

NUT,Hex, #10 - 32

- hex., #10, rear steering indicator

2шт.

47

A55490

CONTROL

CABLE - indicator control cable, rear steering

1шт.

48

A27814

X

CLAMP - indicator cable, rear steering i

1шт.

49

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Cable clip, Rear steering indicator Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

51

25-104

NUT,1/4"-20, G5

Rear steering indicator 1/4"-20, G5

1шт.

52

A55491

CLIP - cable retaining, rear steering indicator

1шт.

53

A13541

PIN - rear control pivot, steering indicator

1шт.

54

A55484

LEVER - rear axle indicator, rear steering

1шт.

55

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease, 1/8" str. drive, rear steering indicator

1шт.

56

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex., rear steering indicator

1шт.

57

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, , Rear steering indicator Int Tooth, 1/2"

1шт.

58

A55488

ROD - lever to axle arm, rear steering indicator

1шт.

59

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis, rod to lever & arm, rear steering indicator

2шт.

60

L11784

ARM - rear axle indicator, steering

1шт.

61

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Arm, Rear steering indicator Hex, 5/8"-11 x 2", G5

2шт.

62

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Steering rod yoke, rear indicator 3/8" x 1.060"

2шт.
