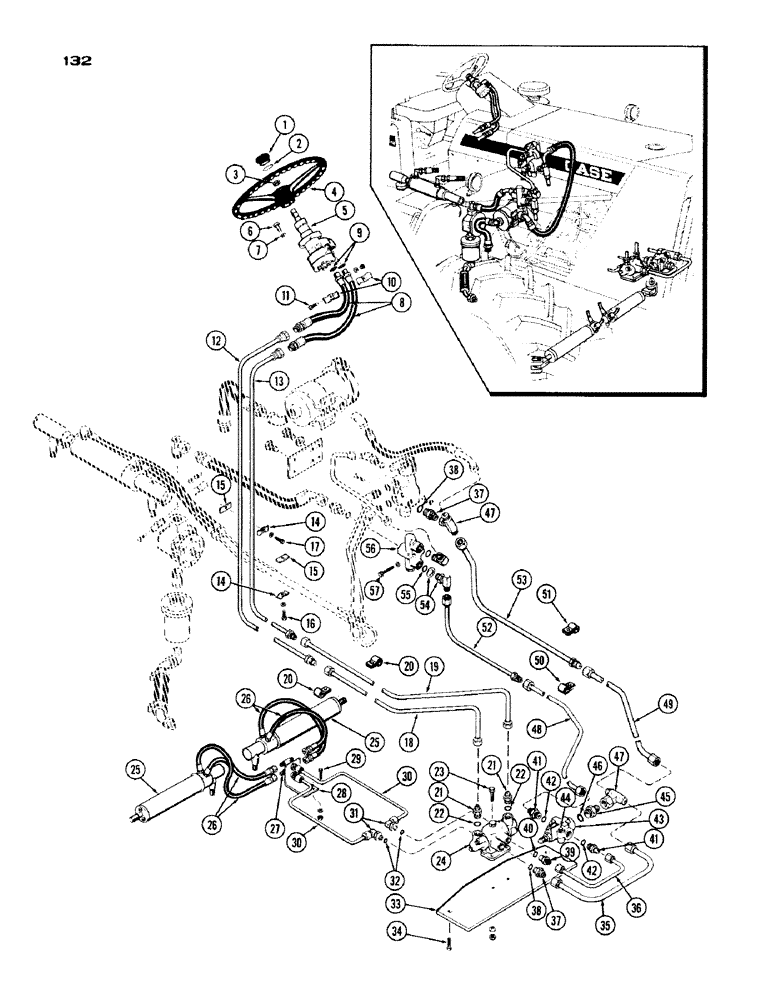

Запчасти Case IH 1200 (132) - FRONT POWER STEERING (05) - STEERING

1

A35603

CAP

MEDALLION - steering wheel

1шт.

2

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - medallion

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel to pump shaft

1шт.

4

A35602

STEERING WHEEL

WHEEL - steering

1шт.

5

A35579

PUMP

ASSY. - manual hand (Repairs, F. 139)

1шт.

6

164-540

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

SCREW - pump mtg., 5/16 x 3/4" N.C. button hd.

4шт.

7

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

8

A55304

HOSE ASSY. - pump to control valve tube, Includes: Ref. 9

2шт.

10

R15257

CLAMP

- pump hose

2шт.

11

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- clamp, 5/16 x 1-1/2" N.C. hex

1шт.

12

L10104

TUBE - upper R.H., Serial Range: pump-valve

1шт.

13

L10105

TUBE - upper, L.H., Serial Range: pump-valve

1шт.

14

A12032

CLAMP

CLIP - hydrualic tube

3шт.

15

A16769

WASHER

SPACER - hydraulic tube

4шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Tube clip Hex, 5/16"-18 x 2", G5

1шт.

17

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- tube clip, 5/16 x 1-1/4" N.C. hex. hd.

2шт.

18

L10103

TUBE ASSY. - lower R.H., Serial Range: pump-valve

1шт.

19

L10106

TUBE ASSY. - lower L.H., Serial Range: pump-valve

1шт.

20

49838

CLAMP

CLIP - tube retaining (on grille bolts)

2шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER Assy - tube (1/2" tube x 3/4" strg. N.C.), Incl. Ref 22

2шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Valve mtg. Hex, 3/8"-16 x 7/8", G5, Full Thd

3шт.

24

L11389

VALVE ASSY. - control (Repairs, F. 139)

1шт.

25

A55158

CYLINDER BLOCK

CYLINDER ASSY. - front steering (Repairs, F. 145)

2шт.

26

A55307

HOSE - steering, Serial Range: cylinder-tee

4шт.

27

218-804

TEE,9/16"-18, 37 Degree, Blkhd

Cylinder hose to tube 9/16"-18, 37º, Blkhd

2шт.

28

218-55655

BRACKET - steering hose tee

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- bracket mtg., 3/8 x 1-3/4" N.C. hex. hd.

2шт.

30

L10107

TUBE ASSY. - valve to cylinder hose tee 0.375" OD

2шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - valve to tube, 90 deg.-3/8" tube (REPLACES 218-5101), Includes: Ref. 32

2шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

33

L10100

PLATE - valve mounting

1шт.

34

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Plate mtg. Hex, 1/2"-13 x 2", G5

2шт.

35

L10109

TUBE ASSY. - control valve return

1шт.

36

L10101

TUBE ASSY. - relief valve to control valve

1шт.

37

L10108

ADAPTER

ASSY. - control & rear steering valve, Includes: Ref. 38

2шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - adapter, 59/64 x 1-5/32 x 7/64"

1шт.

39

L10102

X

CONNECTOR ASSY. - straight, tube to valve, Includes: Ref. 40

1шт.

40

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

41

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter - straight, relief valve, Incl. Ref 42 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

43

L10091

VALVE ASSY. - steering relief (Repairs, f. 143)

1шт.

44

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Valve mtg Hex, 5/16"-18 x 2", G5

2шт.

45

L10110

X

CONNECTOR ASSY. - straight, relief valve, Includes: Ref. 46

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - connector, 59/64 x 1-5/32 x 7/64"

1шт.

47

L10111

X

TEE - relief valve & flow divider return tube

2шт.

48

L10099

TUBE ASSY. - valve to flow divider lower 0.5" OD

1шт.

49

L10112

TUBE ASSY. - lower return

1шт.

50

49838

CLAMP

CLIP - steering tube retaining

2шт.

51

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLIP - steering tube retaining

2шт.

52

L10098

TUBE ASSY. - flow divider to relief valve 0.5" OD x 13.5, 6.1" L

1шт.

53

L10113

TUBE ASSY. - upper return

1шт.

54

L10097

ELBOW ASSY. - flow divider, Includes: Ref. 55

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow, 3/4 x 15/16 x 3/32"

1шт.

56

L10092

VALVE

ASSY. - flow divider (Repairs, F. 143)

1шт.

57

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Valve mtg. Hex, 1/4"-20 x 2", G5

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - pump hose, 41/64 x 23/32 x 5/64"

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter, 41/64 x 23/32 x 5/64"

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter, 41/64 x 23/32 x 5/64"

1шт.
