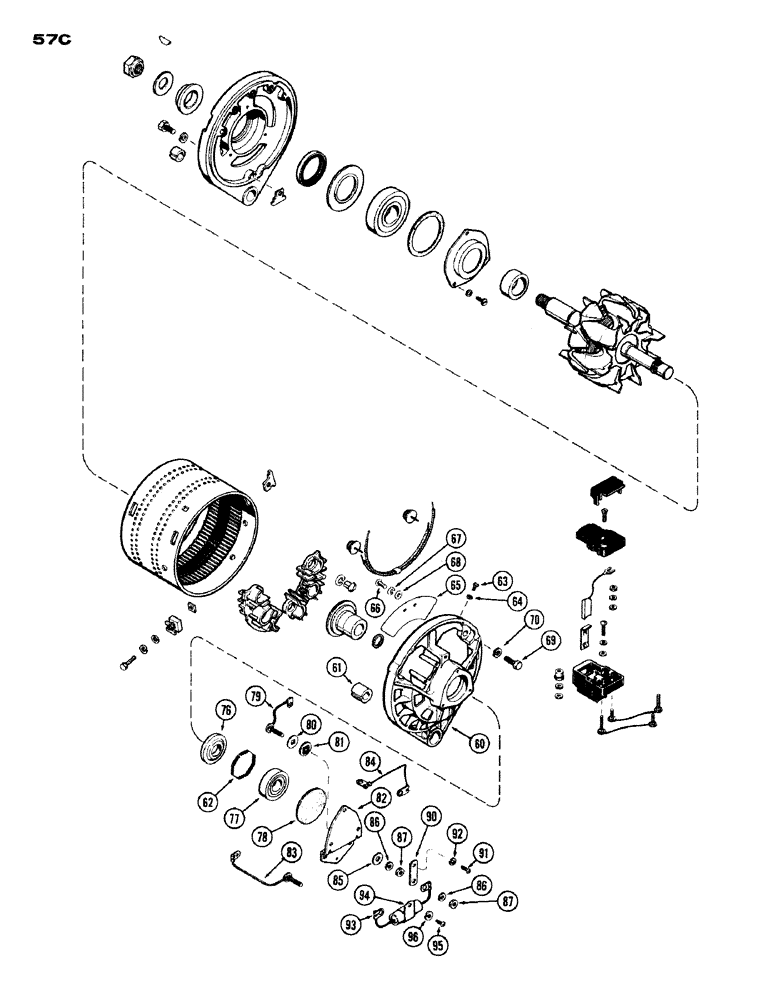

Запчасти Case IH 1200 (057A) - ALTERNATOR, (451) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS

A56095

ALTERNATOR

ALTERNATOR - Includes: Ref. 60 - 96 and Ref. 1 - 59 on Figure 57A

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

60

A40804

SPARE PART FRAME ASSY. - slip ring, Includes: Ref. 61 and 62

1шт.

61

A42144

BUSHING - mtg. hinge, slip end

1шт.

62

A42110

CLAMP - bearing retainer

1шт.

63

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - ground

1шт.

64

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Ground screw #10

1шт.

65

A42141

BAFFLE - slip ring

1шт.

66

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

SCREW - baffle

2шт.

67

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Baffle #8

2шт.

68

A42138

WASHER - baffle

2шт.

69

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW - attaching, slip ring end

3шт.

70

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Attaching screw 1/4"

3шт.

76

A41031

COLLAR - slip ring end

1шт.

77

A25476

BEARING

BEARING - ball, slip end

1шт.

78

A42149

SPARE PART GASKET - retainer plate

1шт.

79

A25998

TERMINAL - negative, battery

1шт.

80

A42136

WASHER - insulated, terminal

1шт.

81

A42142

SPARE PART BUSHING - insulated, terminal

1шт.

82

A25994

PLATE - end retainer

1шт.

83

A25999

SPARE PART TERMINAL - positive, battery

1шт.

84

A42152

ELECTRICAL WIRE

WIRE LEAD - field terminal

1шт.

85

A41927

WASHER

WASHER - plain, battery terminal

4шт.

86

192-17

LOCK WASHER,#12

Washer, Lock, , Battery terminal #12

4шт.

87

129-18

NUT,#12-24

NUT - battery terminal

3шт.

90

A42150

SUPPORT

STRAP - ground

1шт.

91

173-275

SCREW - retainer plate

3шт.

92

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Plate #8

3шт.

93

A40946

TANK

CAPACITOR - alternator

1шт.

94

A42132

BRACKET - capacitor

1шт.

95

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

SCREW - capacitor bracket

1шт.

96

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Bracket screw #8

1шт.
