Запчасти Case IH 1200 (056) - A41360 ALTERNATOR, (451) DIESEL ENGINE, FIRST USED TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS

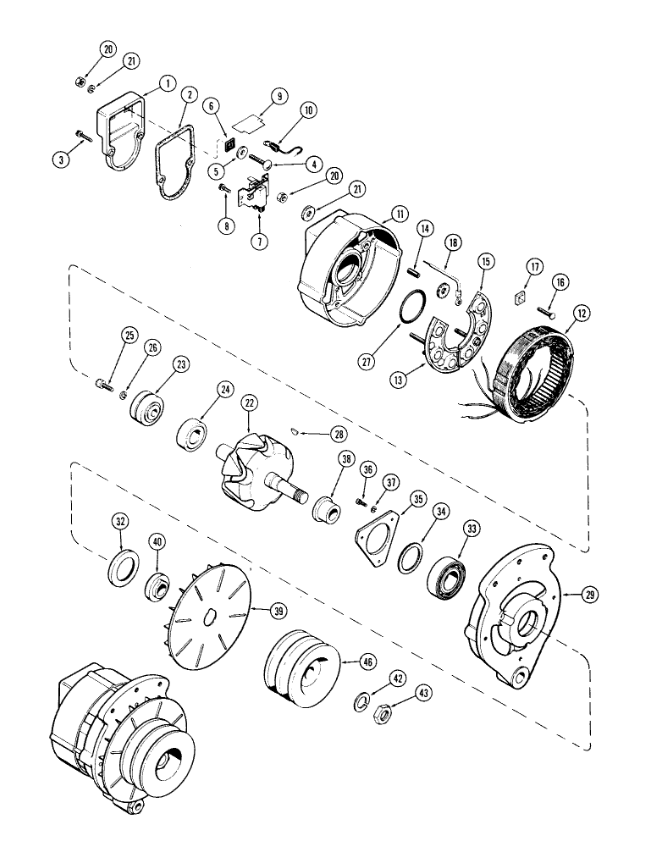

Схема запчастей Case IH 1200 - (056) - A41360 ALTERNATOR, (451) DIESEL ENGINE, FIRST USED TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A41360

ALTERNATOR

ALTERNATOR ASSY. - (35 amp.) (Motorola #MH24N-901), Includes: Ref. 2 - 51

1шт.

1

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 Volt, 35 Amp Alternator

1шт.

1

104021A1C

CORE-ALTERNATOR

Return Number, 24 Volt, 35 Amp Alternator

1шт.

2

A41435

COVER ASSY

COVER - rear housing

1шт.

3

A41341

GASKET

GASKET -, Serial Range: cover-body

1шт.

4

187-482

SPARE PART SCREW - #8 x 3/4" hex. hd., self-tapping

2шт.

5

A41036

SCREW

BOLT - field wire, #10-24 rd. hd.

1шт.

6

G49045

WASHER

WASHER - 17/64 x 39/64 x 16 ga.

1шт.

7

A41041

INSULATOR

INSULATOR - alternator brush

1шт.

8

A41048

BRUSH, COMMUTATOR

BRUSH HOLDER ASSY. - brush

1шт.

9

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - #8 x 1/2" hex. hd., self-tapping

2шт.

10

A41042

INSULATOR

INSULATOR - alternator brush, shunt lead

1шт.

11

A41046

ELECTRICAL WIRE

WIRE WIRE - internal field

1шт.

12

A41045

COVER

HOUSING - rear

1шт.

13

A41441

STATOR

STATOR ASSY. - alternator

1шт.

14

A41440

DIODE

DIODE ASSY. - negative, black

1шт.

15

A41040

INSULATOR

INSULATOR - nylon, 13/64 x 17/64 x 68" (cut as req.)

2шт.

16

A41443

DIODE ELEMENT

DIODE ASSY - positive, red

1шт.

17

A41436

SCREW

SCREW - rectifier ring

1шт.

18

A41041

INSULATOR

INSULATOR - rectifier stud

1шт.

19

A41432

CABLE PULLING GRIP

CABLE - phase tap

1шт.

20

A41060

LOCK NUT

LOCKNUT PACKAGE, Includes: Ref. 26

1шт.

21

A41038

WASHER

WASHER - 13/64 x 3/4 x 1/16"

7шт.

22

A41442

ROTOR

ROTOR ASSY. - alternator, Includes: Ref. 28 - 31

1шт.

23

A41032

SLIP RING

RING - slip

1шт.

24

A41439

BEARING

BEARING - sealed, 21/32 x 1-37/64 x 15/32"

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - #10 x 5/8" sckt. hd., cap

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

27

A41049

RUBBER SEAL

RETAINER - rear bearing

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

29

A41437

HOUSING

HOUSING - front

1шт.

30

A41047

SEAL ASSY.

SEAL - bearing, front housing

1шт.

31

A41054

X

BEARING - sealed, front, 63/64 x 2-3/64 x 19/32"

1шт.

32

A41039

RETAINER

RETAINER - 1-1/4 x 1/5/8 x 3/32"

1шт.

33

A41050

SPARE PART RETAINER - front bearing

1шт.

34

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - #8 x 3/8" N.C. sltd. pan hd.

3шт.

35

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

36

A41052

SLEEVE

SLEEVE - shaft

1шт.

37

A41058

X

FAN - alternator ventilating

1шт.

38

A41053

SPARE PART SPACER - fan

1шт.

39

A41051

SPACER

SPACER - pulley

1шт.

40

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

41

A41035

NUT

NUT - pulley mounting, 5/8" N.C. hex

1шт.

42

A41037

BOLT

BOLT - rear housing

4шт.

43

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, Ext-Int Tooth, #8

4шт.

Выбрано товаров: 45
