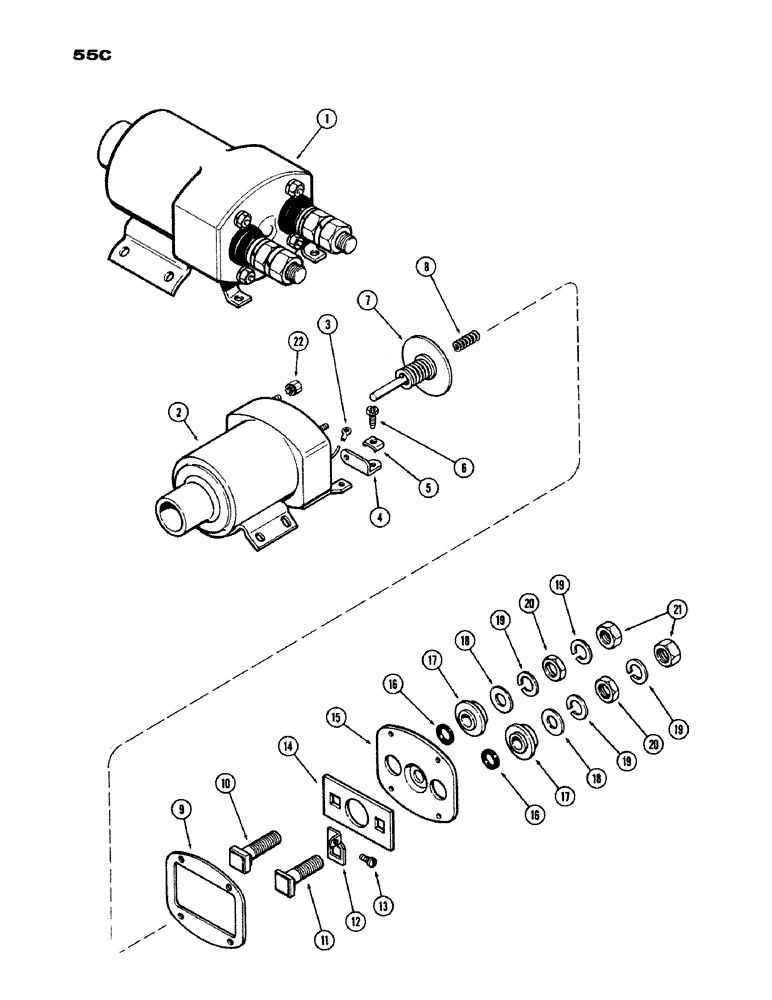

Запчасти Case IH 1200 (055A) - SOLENOID, (451)DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A15358

SOLENOID

SWITCH ASSY. - solenoid (Delco-Remy #1119832), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil

1шт.

3

D30020

CLIP - terminal, coil lead

1шт.

4

R15161

CONNECTOR, ELEC

CONNECTOR - ground

1шт.

5

R15182

CLIP

- terminal

2шт.

6

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

2шт.

7

D32498

CONTACT

DISC ASSY - contact

1шт.

8

D32499

SPRING

- contact disc return

1шт.

9

D29930

X

GASKET - solenoid

1шт.

10

D32505

STUD

- battery terminal

1шт.

11

D32506

STUD

- starter terminal

1шт.

12

D29910

SUPPORT

- coil lead

1шт.

13

175-92

SCREW - coil lead

1шт.

14

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

15

D32504

COVER

PLATE - terminal

1шт.

16

D32508

INSULATOR

BUSHING - terminal studs, inside

2шт.

17

D32510

BUSHING

- terminal studs, outside

2шт.

18

D32509

X

WASHER - terminal stud

2шт.

19

192-113

LOCK WASHER,1/2"

WASHER - lock, terminal studs

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.

22

D32500

NUT

ASSY. - w/skpf. washer

4шт.
