Запчасти Case IH 1200 (055) - STARTING MOTOR, (451) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

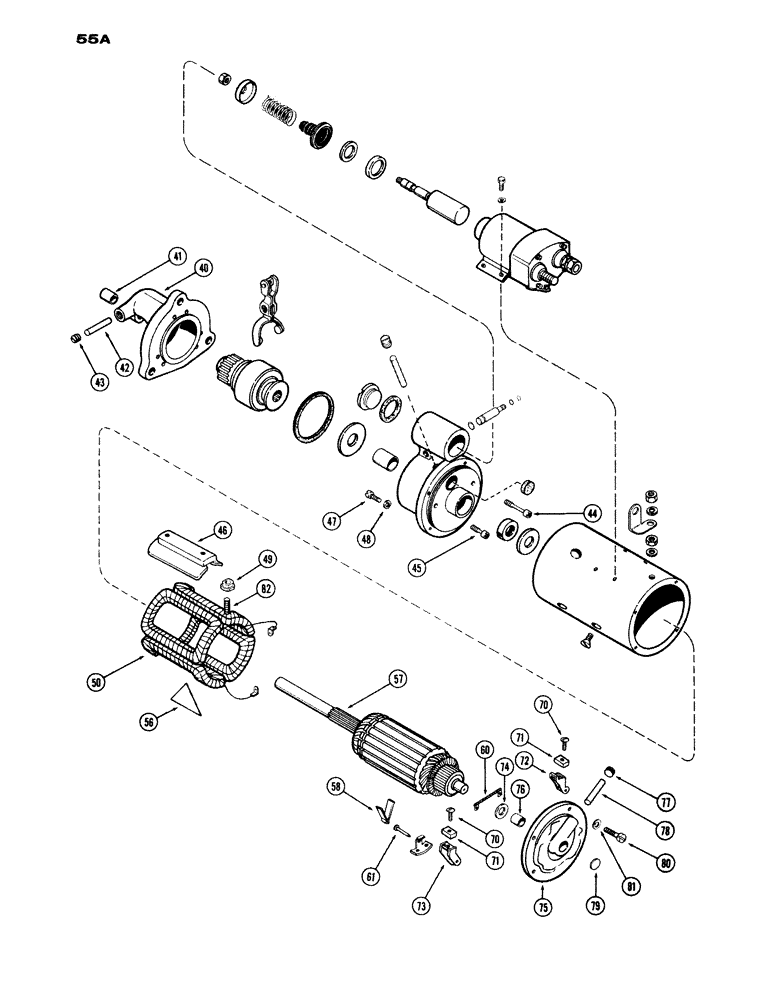

Схема запчастей Case IH 1200 - (055) - STARTING MOTOR, (451) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
77
72
80
81
56
76
75
61
47
79
40
50
71
41
42
60
70
58
46
45
78
49
44
70
82
48
43
74
71
73
57

Артикул

Название

Примечание

Количество

A15485

STARTING MOTOR

MOTOR ASSY. - starting, Includes: Ref. 40 - 82 and Ref. 1 - 39 on Figure 54

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

87297386

REMAN-STARTER

Remanufactured Starter

1шт.

87297387

CORE-STARTER

Return Number

1шт.

40

A40283

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 41 - 43

1шт.

41

A40893

BUSHING

BUSHING - drive housing

1шт.

42

R15023

WICK

WICK - oil, drive housing

1шт.

43

221-1041

PLUG

PLUG - wick, drive housing

1шт.

44

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - attaching, drive end (Long)

5шт.

45

R21565

X

SCREW - attaching, drive end (Short)

1шт.

46

R15115

SHOE

SHOE - pole

4шт.

47

D32484

SCREW,Hex, 1/4" - 28 x 1"

SCREW - attaching, lever hsg, to armature hsg, (Use 114-1)

5шт.

48

R21585

X

WASHER - lock

5шт.

49

R15011

WASHER

BUSHING - insulated, terminal stud

1шт.

50

R21557

COIL ASSY.

COIL - field, starter (Set of 4)

1шт.

56

R15010

BUSHING

INSULATOR - starter

1шт.

57

A50909

ARMATURE - starter

1шт.

58

R15025

SPRING

SPRING - brush

2шт.

R15029

BRUSH

KIT - brush holder, Includes: Ref. 60 and 61

1шт.

60

R15030

ELECTRICAL WIRE

WIRE LEAD - ground, brush

2шт.

61

R15035

PIN

PIN - brush holder

2шт.

R15031

X

SCREW - brush holder (Use 175-449)

2шт.

R15033

X

WASHER - lock, brush holder

2шт.

R15032

X

NUT - brush holder

2шт.

70

187-328

SPARE PART SCREW - brush attaching

4шт.

71

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

72

R15027

HOLDER

HOLDER - brush insulated

2шт.

73

A40217

HOLDER

HOLDER - brush ground

2шт.

74

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

WASHER - spacer, commutator end

1шт.

75

R21559

FRAME

END ASSY. - commutator, Includes: Ref. 76 - 79

1шт.

76

R15020

BUSHING

BUSHING - commutator end

1шт.

77

221-1041

PLUG

PLUG - pipe, wick

1шт.

78

R15023

WICK

WICK - oil, commutator end

1шт.

79

R15021

PLUG

PLUG - expansion, commutator end

1шт.

80

R21578

SCREW

SCREW - attach., commutator end & body

4шт.

81

R21585

X

WASHER - commutator mounting screw

4шт.

82

R15017

STUD

STUD - terminal

1шт.

Выбрано товаров: 40
