Запчасти Case IH 1200 (054) - STARTING MOTOR, (451) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

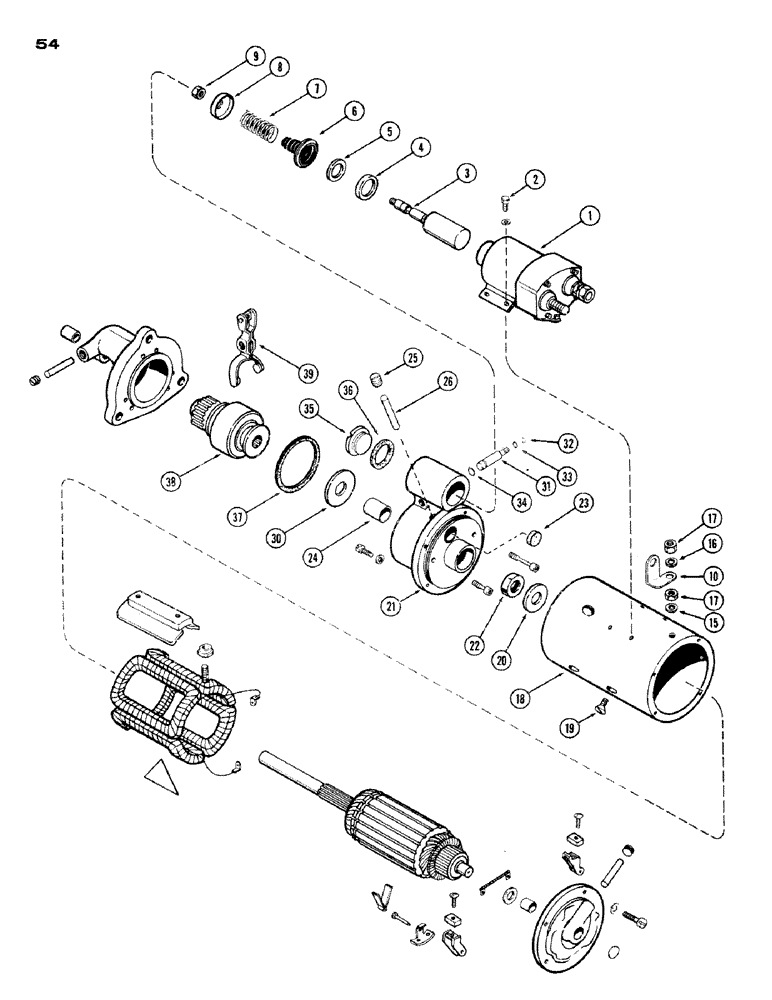

Схема запчастей Case IH 1200 - (054) - STARTING MOTOR, (451) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
20
18
3
17
15
36
30
2
23
8
26
7
34
32
5
4
35
17
25
31
16
1
37
24
19
22
21
33
39
38
9
6
10

Артикул

Название

Примечание

Количество

A15485

STARTING MOTOR

MOTOR ASSY. - starter (Delco 113370), Includes: Ref. 1 - 39 and Ref. 40 - 82 on Figure 55A

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

87297386

REMAN-STARTER

Remanufactured Starter

1шт.

87297387

CORE-STARTER

Return Number

1шт.

1

A15358

SOLENOID

SWITCH ASSY. - solenoid (Repairs, F.55D)

1шт.

2

R15139

WASHER

SPARE PART BOLT - solenoid attaching

4шт.

3

R21568

PLUNGER

PLUNGER - solenoid switch

1шт.

4

R21572

RETAINER

RETAINER - plunger spring

1шт.

5

R21570

WASHER

WASHER - retainer

1шт.

6

R21576

BOOT

BOOT - plunger

1шт.

7

A41242

SPRING

SPRING - plunger

1шт.

8

R21571

RETAINER

RETAINER - spring

1шт.

9

131-31

LOCK NUT,5/16"-24, G8

NUT - adjusting, plunger guide

1шт.

10

D32480

SPARE PART CONNECTOR - switch

1шт.

15

R15013

WASHER

WASHER - terminal

1шт.

16

R15012

SPARE PART WASHER - lock, terminal

1шт.

17

R15014

NUT

NUT - terminal

2шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - armature (Order A15485)

1шт.

19

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe

8шт.

20

R21583

WASHER

WASHER - spacer, armature

1шт.

21

R21579

HOUSING

HOUSING ASSY. shift lever, Includes: Ref. 22 - 26

1шт.

22

R21582

OIL SEAL

SEAL - oil, lever housing

1шт.

23

R21587

PLUG

PLUG - housing

1шт.

24

R21580

BUSHING

BUSHING - lever housing

1шт.

25

221-1041

PLUG

PLUG - pipe

1шт.

26

R15023

WICK

WICK - lever housing

1шт.

30

R15145

DISC

WASHER - brake

1шт.

31

R21564

X

STUD - shift lever

1шт.

32

R40422

RING - snap, lever stud (Use G46146)

1шт.

33

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - shifter stud

1шт.

34

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - shift stud

1шт.

35

R21587

PLUG

PLUG - shift lever

1шт.

36

R21588

GASKET - plug

1шт.

37

R21562

GASKET

GASKET - lever housing to drive hsg.

1шт.

38

R21589

DRIVE

DRIVE ASSY. - starter (Bendix)

1шт.

39

D32547

LEVER

LEVER - shifter

1шт.

Выбрано товаров: 39
