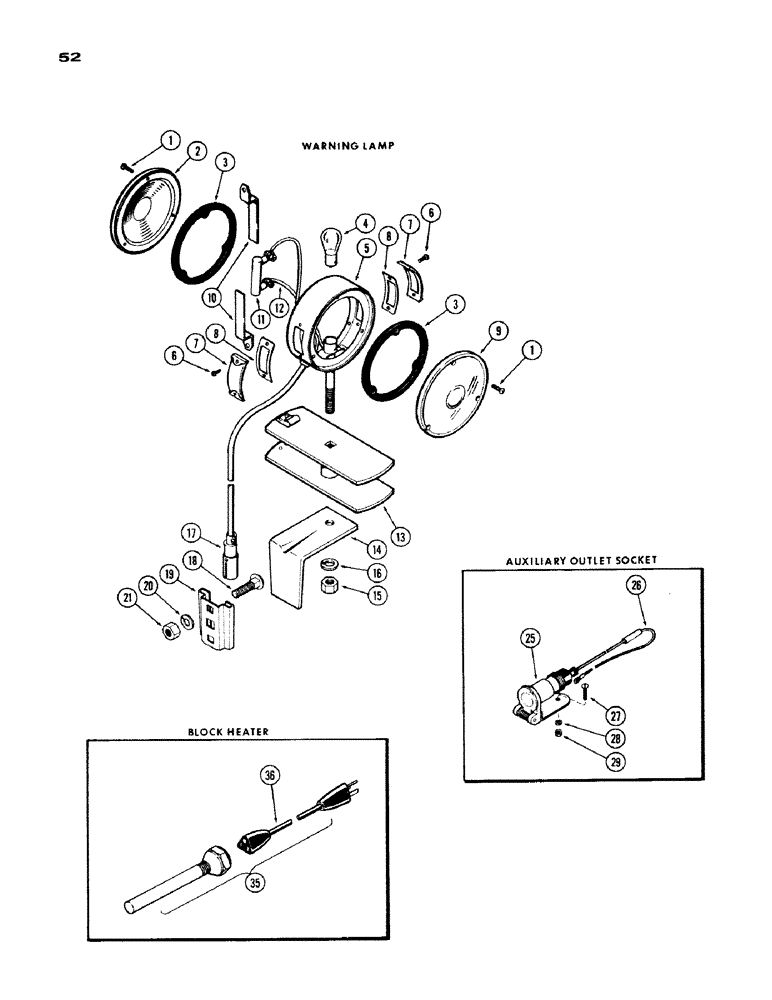

Запчасти Case IH 1200 (052) - WARNING LAMP (04) - ELECTRICAL SYSTEMS

A56426

ATTACHMENT - warning lamp, Includes: Ref. 1 - 21

1шт.

A56422

LAMP ASSY. - warning (24 volt), Includes: Ref. 1 - 17

1шт.

1

169-61

SCREW - lens mtg., #8 x 1/2" rd. hd. slotted

6шт.

2

B53962

LENS

- lamp (Red)

1шт.

3

B50317

GASKET - lens

2шт.

4

33686

BULB

- lamp (12 Vo15, 21CP)

1шт.

5

NSS

NOT SOLD SEPARAT

BODY ASSY. - warning lamp (Order A56422)

1шт.

6

182-16

SCREW - side lens, #6 x 5/16" pan hd.

6шт.

7

B50328

LENS - side, lamp (White)

2шт.

8

B50329

GASKET - side lens

2шт.

9

B50337

LENS

- lamp (Amber)

1шт.

10

L10084

BRACKET - resistor

2шт.

11

L10302

RESISTOR - lamp voltage (25 Watt, 50 OHM)

1шт.

12

L10086

WIRE - voltage resistor

1шт.

13

B50330

SPOOL ASSY. - lamp mounting

1шт.

14

B50331

BRACKET - mounting spool & lamp

1шт.

15

25-107

NUT,7/16"-14, G5

- lamp mtg., 7/16" N.C. hex

1шт.

16

92-7

LOCK WASHER,7/16"

1шт.

17

B50259

PLUG

ASSY. - warning lamp

1шт.

18

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - socket mtg., 5/16 x 5/8" N.C. carriage hd.

2шт.

19

A8179

SOCKET

- lamp bracket

1шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- socket bolt, 5/16" N.C. hex.

2шт.

L80063

ATTACHMENT - auxiliary outlet socket, Includes: Ref. 25 - 29

1шт.

25

A8170

SOCKET

ASSY. - auxiliary outlet

1шт.

26

A15260

WIRE - socket to harness plut, auxiliary outlet

1шт.

27

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

- socket mtg., #10 x 5/8" N.C. rd. hd., auxiliary outler

2шт.

28

92-3

LOCK WASHER,#10

WASHER, LOCK, , Auxiliary outlet socket #10

2шт.

29

129-7

NUT,Hex, #10 - 24

- socket mtg, screw, #10 N.C. hex., auxiliary outlet

2шт.

35

A40476

HEATER

ASSY. - water jacket, cylinder block, Includes: Ref. 36

1шт.

36

A40477

ELECTRICAL WIRE

CORD - heater, water jacket (7ft), cylinder block

1шт.
