Запчасти Case IH 1200 (050) - FRONT AUXILARY LIGHT (04) - ELECTRICAL SYSTEMS

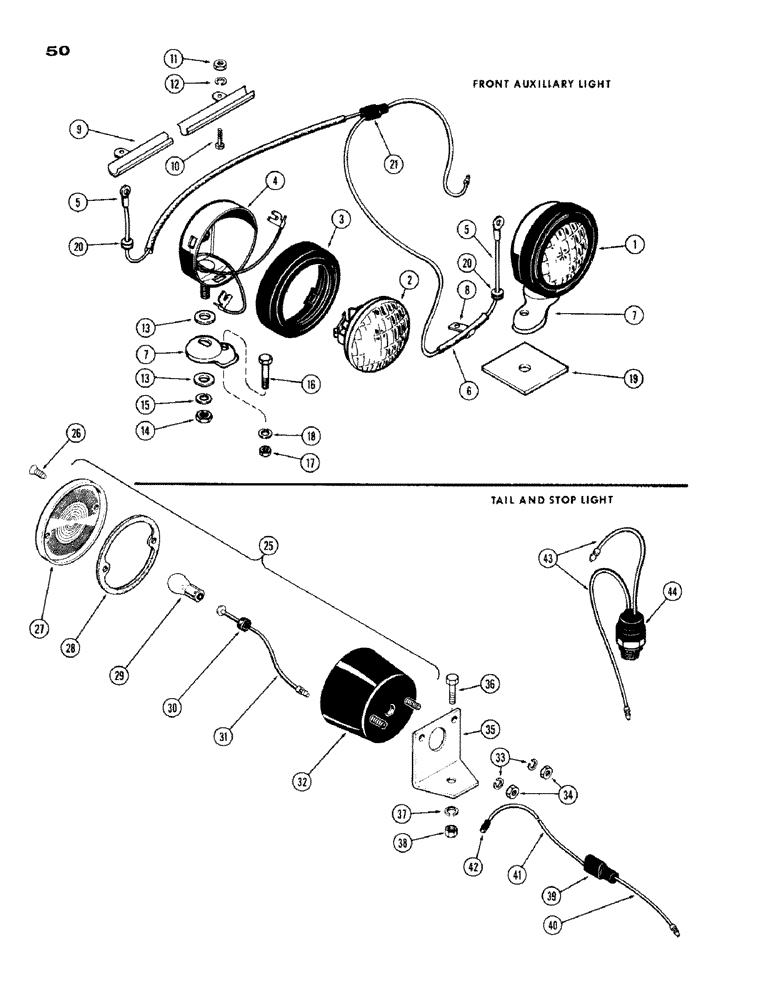

Схема запчастей Case IH 1200 - (050) - FRONT AUXILARY LIGHT (04) - ELECTRICAL SYSTEMS
30
15
42
19
4
34
9
29
44
25
39
7
37
32
14
43
31
11
17
13
10
27
7
6
28
2
35
8
3
16
41
12
20
26
5
38
13
36
33
1
5
40
21
18
20

Артикул

Название

Примечание

Количество

L80061

FRONT AUXILIARY LIGHT (Fender Mtd.)(Mach. attach.), Includes: Ref. 1 - 21

1шт.

1

A55702

LIGHT

ASSY. - front auxiliary, Includes: Ref. 2 - 4

2шт.

2

A25212

LAMP

- sealed unit

1шт.

3

A25213

RETAINER

- sealed unit (Rubber)

1шт.

4

A25214

LIGHT

BODY ASSY. - auxiliary light

1шт.

5

A56506

WIRE - light to three wire connector

2шт.

6

A27034

LOOM - wire, Serial Range: fender-firewall

2шт.

7

A34046

BRACKET

- mounting, auxiliary light

2шт.

8

49838

CLAMP

CLIP - light, Serial Range: wire-fender

1шт.

9

A7532

CONDUIT - wire support

2шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Conduit Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

- conduit bolt, 5/16" N.C. hex

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

10923

WASHER

- concave, light to bracket

4шт.

14

25-108

NUT,1/2"-13, G5

- light mtg., 1/2" N.C. hex

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- bracket, 3/8 x 1-1/2" N.C. hex

2шт.

17

25-106

NUT,3/8"-16, G5

- bracket bolt, 3/8" N.C. hex

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

A9073

PLATE- mounting reinforcement

2шт.

20

A31076

GROMMET

- wire, fender

2шт.

21

A8210

CONNECTOR, ELEC

CONNECTOR - wire (three wire)

1шт.

L80062

STOP & TAIL LIGHT (Mach.Attch.), Includes: Ref. 25 - 43

1шт.

25

L11000

INTERIOR LIGHT

LIGHT ASSY. - stop and tail, Includes: Ref. 26 - 34

2шт.

26

L30432

SCREW,#8 x 5/8"

- lens mounting (#8 x 5/8" Phillips Oval hd), tail & stop light

2шт.

27

L30431

LENS

- lamp (red), tail & stop light

1шт.

28

L30430

GASKET

- lens, tail & stop light

1шт.

29

A15084

LAMP

BULB - lamp (GE 1683-32CP), tail & stop light

1шт.

30

L30428

SPRING - contact, tail & stop light

1шт.

31

L30429

WIRE ASSY. - lamp contact, tail & stop light

1шт.

32

NSS

NOT SOLD SEPARAT

BODY ASSY. - lamp (Order Ref. 25), tail & stop light

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Tail & stop light 1/4"

2шт.

34

25-104

NUT,1/4"-20, G5

Lamp mtg., Tail & stop light 1/4"-20, G5

2шт.

35

L10999

BRACKET - light mounting, tail & stop

2шт.

36

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bracket, tail & stop light Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

tail & stop light 3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- bracket bolt, 3/8" N.C. hex, tail & stop light

2шт.

39

A8210

CONNECTOR, ELEC

CONNECTOR - wire (Three wire), tail & stop light

1шт.

40

L10068

WIRE - connector to harness, tail & stop light

1шт.

41

L10069

WIRE - connector to connector, tail & stop light

1шт.

42

A27213

CONNECTOR - wire (Two wire), tail & stop light

1шт.

43

G44059

WIRE - brake switch harness, tail & stop light

2шт.

44

A12491

SWITCH

ASSY - brake, stop light

1шт.

Выбрано товаров: 43
