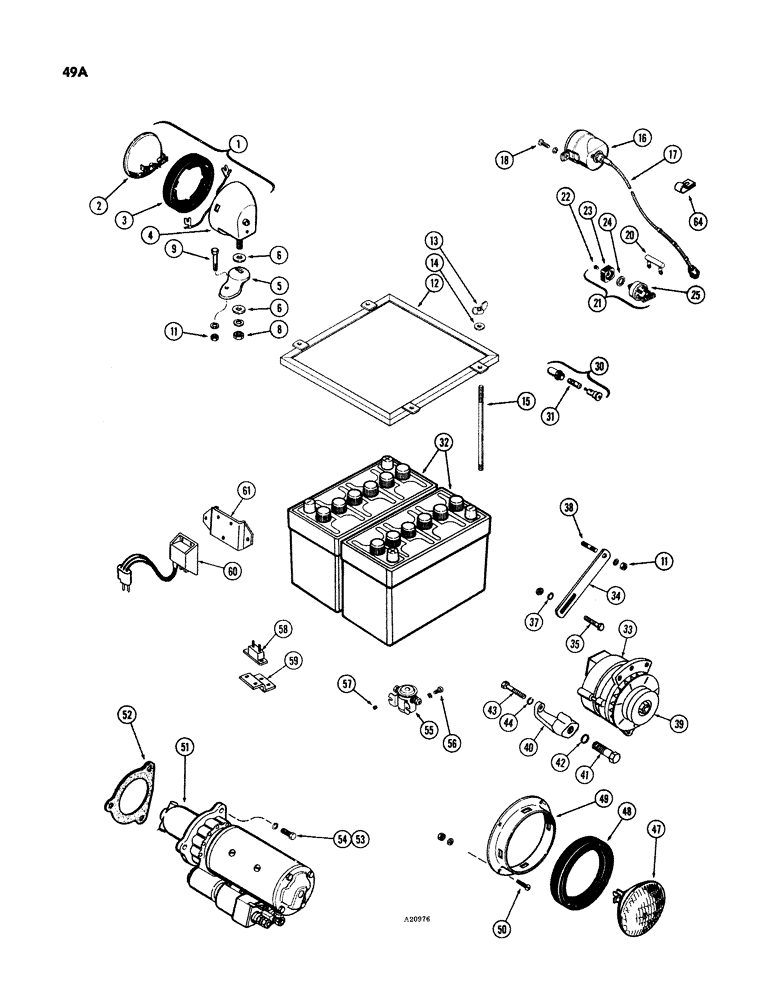

Запчасти Case IH 1200 (049) - ELECTRICAL EQUIPMENT AND HARDWARE, (451) DIESEL ENGING, FIRST USED TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS

1

A55702

LIGHT

LIGHT ASSY. - rear mounted, Includes: Ref. 2 - 4

2шт.

2

A25212

LAMP

ELEMENT - rear light

1шт.

3

A25213

RETAINER

MOULDING - element (rubber)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - lamp (Order Ref. No. 1)

1шт.

5

A26216

BRACKET

BRACKET - mounting, rear light

2шт.

6

A10923

WASHER - concave bearing

4шт.

8

25-108

NUT,1/2"-13, G5

NUT - light mtg., 1/2" N. C. hex

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - bracket mtg., 3/8" x 1-1/2" N. C. hex

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

NUT - bracket bolt & altern. strap stud, 3/8" N. C. hex.

3шт.

12

A55215

FRAME - battery hold down

2шт.

13

129-404

WING NUT,1/4"-20

NUT - wing, 1/4" N.C.

4шт.

14

92-5

LOCK WASHER,5/16"

WASHER - plain, 1/4"

4шт.

15

L10676

STUD - battery hold down (9-1/4" lg.)

4шт.

16

A55972

TACHOMETER

TACHOMETER ASSY. - engine

1шт.

17

A55973

CABLE

CABLE ASSY. - tachometer drive

1шт.

18

173-240

SCREW - mach., #10 x 3/4" N. F. rd. hd.

2шт.

20

A14900

RESISTOR

RESISTOR - light switch

1шт.

21

A56307

SWITCH

SWITCH ASSY. - light (24 volt), Includes: Ref. 22 - 25

1шт.

22

A20468

SCREW,Spcl, #8 - 32 x 5/16"

SCREW - light switch knob

1шт.

23

A20465

KNOB

KNOB - light switch

1шт.

24

A20467

NUT

NUT - lock, light switch

1шт.

25

NSS

NOT SOLD SEPARAT

CONTROL ASSY. - light switch (Order Ref. 21)

1шт.

30

A55704

SPARE PART LIGHT ASSY. - panel, Includes: Ref. 31

2шт.

31

A25257

BULB

BULB - panel lamp (24 volt)

1шт.

32

A14759

X

BATTERY - elec. stg. (12 volt) (Prestolite 90AH,14H90)

2шт.

33

A41360

ALTERNATOR

ALTERNATOR ASSY. - engine, 24 volt (Repairs. P57)

1шт.

34

T38005

STRAP - adjusting, alternator

1шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

37

195-103

WASHER,5/16"

WASHER - Z.P. 5/16"

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

38

A7391

STUD

STUD - adjusting strap

1шт.

39

T38007

SPARE PART PULLEY - alternator and fan

1шт.

40

A34704

BRACKET

BRACKET - altern. mtg

1шт.

41

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

BOLT, Hex, 3/4"-10 x 2 1/4", G5

1шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

43

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - 3/8" x 3-1/2" N.C. hex

1шт.

44

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

47

A25209

LAMP

ELEMENT - headlight

2шт.

48

A25210

MOUNTING PARTS

MOULDING - element (rubber)

2шт.

49

A25211

FRAME - headlight mounting

2шт.

50

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Light frame mtg. Hex, 1/4"-20 x 3/4", G5, Full Thd

8шт.

51

A15485

STARTING MOTOR

MOTOR ASSY. - starting (24 volt) (Repairs, Figure 55)

1шт.

51

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

51

RC46156

CORE-STARTER

Return Number

1шт.

52

A27933

GASKET

GASKET - starter mounting

1шт.

53

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Starter mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

54

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

BOLT - starter mtg., 1/2" x 3" N. C. hex

1шт.

55

A18501

SOLENOID SWITCH

SWITCH ASSY. - solenoid heater

1шт.

56

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, , Solenoid mtg Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

57

A56188

INSERT - solenoid mtg., bolt

2шт.

58

A22877

BREAKER,40A

BREAKER ASSY. - circuit

1шт.

129-37

NUT,#10-32

NUT, #10-32

4шт.

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

4шт.

59

T37999

BRACKET - circuit breaker

1шт.

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW- machine, #10 x 3/8" rd. hd. w/LW

2шт.

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C.Z.P.

2шт.

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, , w/LW Hex, 1/4"-20 x 3/8", G5, Full Thd

2шт.

60

D41431

REGULATOR

REGULATOR

1шт.

61

T38000

BRACKET - regulator

1шт.

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, , w/LW Hex, 1/4"-20 x 3/8", G5, Full Thd

3шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, , w/LW Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 1/4"-20, G5

3шт.
