Запчасти Case IH 1200 (048) - ELECTRICAL EQUIPMENT AND HARDWARE, (451) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS

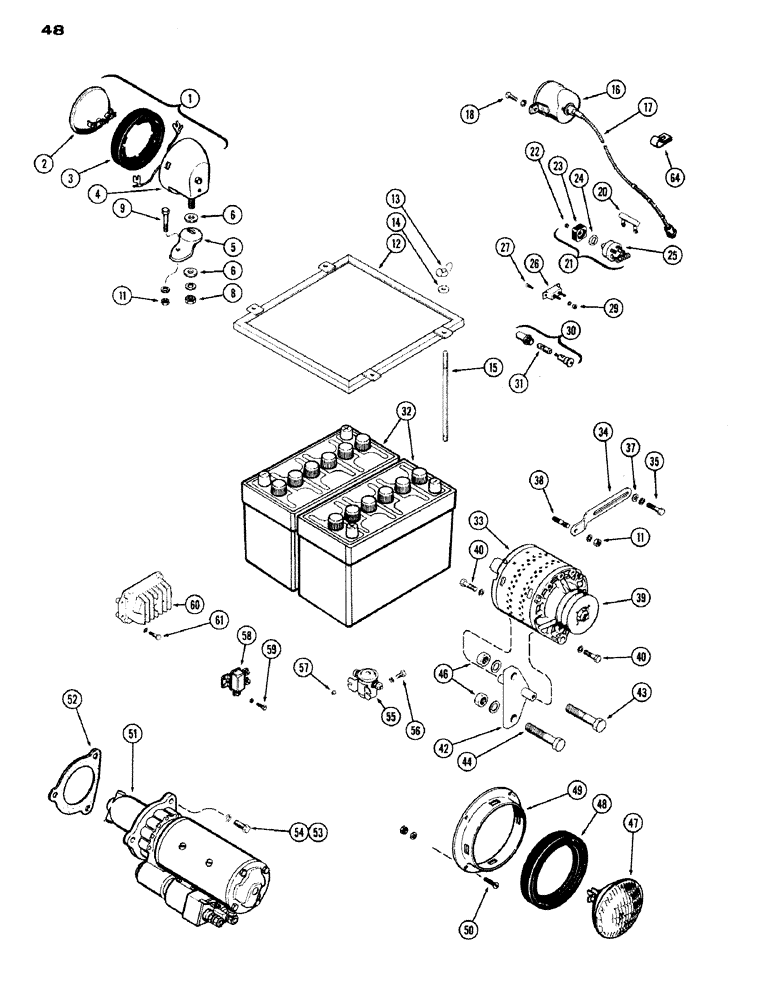

Схема запчастей Case IH 1200 - (048) - ELECTRICAL EQUIPMENT AND HARDWARE, (451) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS
58
57
13
51
18
2
11
60
5
9
6
26
52
23
53
55
34
11
30
33
17
42
38
48
43
25
20
35
56
14
1
22
64
6
27
32
54
12
29
40
16
4
31
50
49
21
8
24
47
39
46
59
44
15
3
61
40
37

Артикул

Название

Примечание

Количество

1

A55702

LIGHT

LIGHT ASSY. - rear mounted, Includes: Ref. 2 - 4

2шт.

2

A25212

LAMP

ELEMENT - rear light

1шт.

3

A25213

RETAINER

MOULDING - element (Rubber)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - lamp (Order ref. 1)

1шт.

5

A26216

BRACKET

BRACKET - mounting, rear light

2шт.

6

A10923

WASHER - concave bearing

4шт.

8

25-108

NUT,1/2"-13, G5

NUT - light mtg., 1/2" N.C. hex.

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - bracket mtg., 3/8 x 1-1/2" N.C. hex.

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

NUT - bracket bolt, & Altern. strap stud 3/8" N.C. hex.

3шт.

12

A55215

FRAME - battery holddown

2шт.

13

129-404

WING NUT,1/4"-20

NUT - wing, 1/4" N.C.

4шт.

14

92-5

LOCK WASHER,5/16"

WASHER - plain, 1/4"

4шт.

15

L10676

STUD - battery holddown (9-1/4" lg.)

4шт.

16

A55972

TACHOMETER

TACHOMETER ASSY. - engine

1шт.

17

A55973

CABLE

CABLE ASSY. - tachometer drive

1шт.

18

173-240

SCREW - mach., #10 x 3/4" N.F. rd. hd.

2шт.

20

A14900

RESISTOR

RESISTOR - light switch

1шт.

21

A56307

SWITCH

SWITCH ASSY. - light (24 volt), Includes: Ref. 22 - 25

1шт.

22

A20468

SCREW,Spcl, #8 - 32 x 5/16"

SCREW - light switch knob

1шт.

23

A20465

KNOB

KNOB - light switch

1шт.

24

A20467

NUT

NUT - lock, light switch

1шт.

25

NSS

NOT SOLD SEPARAT

CONTROL ASSY. - light switch (Order Ref. 21)

1шт.

26

A22877

BREAKER,40A

BREAKER ASSY. - circuit

1шт.

27

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - mach., #10 x 1/2" N.C. rd. hd.

2шт.

29

129-7

NUT,Hex, #10 - 24

NUT - breaker screw, #10 N.C. hex.

2шт.

30

A55704

SPARE PART LIGHT ASSY. - panel, Includes: Ref. 31

2шт.

31

A25257

BULB

BULB - panel lamp (24 volt)

1шт.

32

M20393

X

BATTERY - elect. storage (12 volt) (Auto-Lite SV-30H93)

2шт.

33

A56095

ALTERNATOR

ALTERNATOR ASSY. - engine (24 volt) (Repairs, F. 57)

1шт.

34

A56099

SPARE PART STRAP - adjusting, alternator

1шт.

35

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, , Adj., strap Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

37

195-104

WASHER,3/8"

WASHER - plain, Z.P. 3/8"

1шт.

38

A7391

STUD

STUD - adjusting strap to water pump

1шт.

39

A18423

SPARE PART PULLEY - alternator & fan

1шт.

40

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

BOLT, , Altern. mtg Hex, 7/16"-14 x 1 1/4", G5, Full Thd

2шт.

42

A56096

BRACKET

BRACKET - alternator mounting

1шт.

43

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

BOLT, , Bracket mtg. Hex, 3/4"-10 x 2 1/4", G5

1шт.

44

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

BOLT, , Bracket mtg. Hex, 3/4"-10 x 3", G5

1шт.

46

25-1012

NUT,3/4"-10, G5

NUT, , Bracket bolt 3/4"-10, G5

2шт.

47

A25209

LAMP

ELEMENT - headlight

2шт.

48

A25210

MOUNTING PARTS

MOULDING - element (Rubber)

2шт.

49

A25211

FRAME - head light mounting

2шт.

50

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Light frame mtg. Hex, 1/4"-20 x 3/4", G5, Full Thd

8шт.

51

A15485

STARTING MOTOR

MOTOR ASSY. - starting (24 volt) (Repairs, F. 55)

1шт.

51

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

51

RC46156

CORE-STARTER

Return Number

1шт.

52

A27933

GASKET

GASKET - starter mounting

1шт.

53

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Starter mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

54

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

BOLT - starter mtg., 1/2 x 3" N.C. hex.hd

1шт.

55

A18501

SOLENOID SWITCH

SWITCH ASSY - solenoid heater

1шт.

56

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, , Solenoid mtg Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

57

A56188

INSERT - solenoid mtg., bolt

2шт.

58

L11509

RELAY

RELAY ASSY. - electrical

1шт.

59

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT - relay mtg., 1/4 x 3.8" N.C. hex.hd

2шт.

60

A55703

REGULATOR

REGULATOR ASSY. - voltage

1шт.

61

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Regulator mtg. Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

64

A7922

CLIP

CLIP - tachometer cable

1шт.
