Запчасти Case IH 1200 (046) - ELECTRICAL WIRING, (451) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS

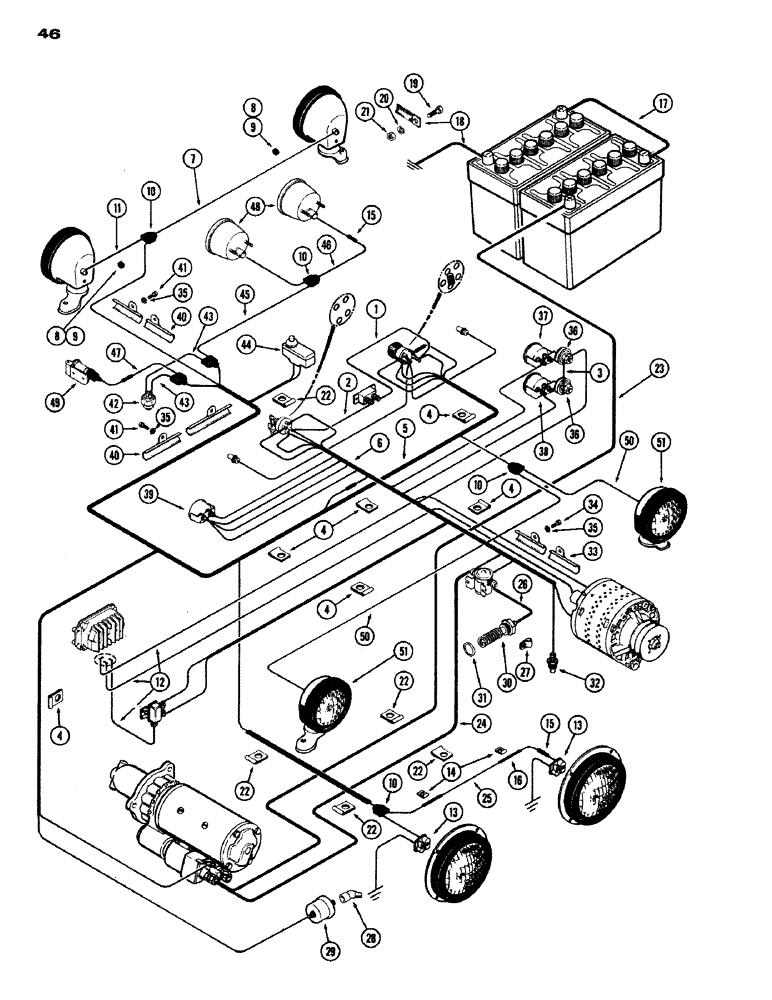

Схема запчастей Case IH 1200 - (046) - ELECTRICAL WIRING, (451) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 9808085 (04) - ELECTRICAL SYSTEMS
21
40
23
7
3
14
15
43
24
17
12
13
31
2
16
9
28
41
6
33
30
35
50
29
40
38
46
26
10
13
10
48
19
8
4
9
50
32
51
36
8
10
51
22
35
22
36
4
4
27
4
35
4
45
20
22
39
22
47
42
18
5
11
25
44
37
41
22
15
1
49
10
34
43

Артикул

Название

Примечание

Количество

1

A19365

WIRE - circuit breaker to light switch (Black)

1шт.

2

A19366

WIRE - starter switch to circuit breaker (Black)

1шт.

3

A11768

ELECTRICAL WIRE

WIRE - temp. gauge to oil press. gauge

1шт.

4

49838

CLAMP

CLIP - wire retaining

8шт.

5

L10071

HARNESS ASSY. - wire, light switch

1шт.

6

L10070

HARNESS ASSY. - wire, key switch

1шт.

7

A11953

WIRE - connector to L.H. rear light

1шт.

8

L10082

GROMMET

- rear platform plate

2шт.

9

A31076

GROMMET

- fender, L.H. & R.H.

2шт.

10

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

4шт.

11

A13793

WIRE - connector to R.H. rear light

1шт.

12

A55705

PLUG & HARNESS ASSY. - regulator to relay & altern.

1шт.

13

A55974

PLUG

ASSY. - headlight wiring

2шт.

14

33700

CLIP - wire and light frame

2шт.

15

A27213

CONNECTOR - two-wire, cross, Serial Range: wire-plug

2шт.

16

A12458

SLEEVE

LOOM - wire clip

1шт.

17

A18926

CABLE

- cross, battery to battery, Serial Range: (Pos.-neg.)

1шт.

18

A27069

CABLE

-, Serial Range: battery-ground

1шт.

19

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Ground cable Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

22

49836

CLAMP

CLIP - wire retaining

5шт.

23

A31077

CABLE - battery to starter (Pos. term.)

1шт.

24

A18502

CABLE -, Serial Range: starter-solenoid

1шт.

25

A13252

ELECTRICAL WIRE

WIRE - cross, L.H. to R.H. headlight

1шт.

26

A18503

CABLE - solenoid to manifold heater

1шт.

27

A22880

CLIP

- wire retaining

2шт.

28

221-1401

ELBOW,45º, 1/8"-27, NPT

- sending unit, 45deg. street

1шт.

29

A35031

SENDER UNIT

UNIT - sending, oil pressure

1шт.

30

A34278

HEATER

ASSY. - intake manifold (24 volt)

1шт.

31

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

32

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

33

A28674

CONDUIT - engine wiring

1шт.

34

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Engine conduit Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

35

92-5

LOCK WASHER,5/16"

6шт.

36

A19349

RESISTOR

- water temp. & oil temp. ga. (24-12 volt)

2шт.

37

A19346

ELECTRICAL GAUGE

GAUGE ASSY. - oil pressure (12 volt)

1шт.

38

A19347

ELECTRICAL GAUGE

GAUGE ASSY. - engine temperature

1шт.

39

A55699

ELECTRICAL GAUGE

GAUGE ASSY. - ammeter (60 amp.)

1шт.

40

A7532

CONDUIT - rear harness and wiring

2шт.

41

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Rear conduit Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

42

A12491

SWITCH

ASSY - brake, stop light

1шт.

43

G44059

WIRE - brake switch to harness connector

2шт.

44

A19513

SWITCH

- safety, neutral start

1шт.

45

L10068

WIRE - stop light plug to harness plug

1шт.

46

L10069

WIRE - plug to L.H. stop light

1шт.

47

A15260

WIRE - outlet socket to harness plug

1шт.

48

L11000

INTERIOR LIGHT

LIGHT ASSY. - stop (Repairs, F.51)

2шт.

49

A8170

SOCKET

- auxiliary, electrical

1шт.

50

A56506

WIRE - plug to L.H. & R.H. auxiliary front lamp

2шт.

51

A55702

LIGHT

ASSY. - front auxiliary (Repairs, F.51)

2шт.

Выбрано товаров: 51
