Запчасти Case IH 1200 (044) - THROTTLE LINKAGE, (451) DIESEL ENGINE (03) - FUEL SYSTEM

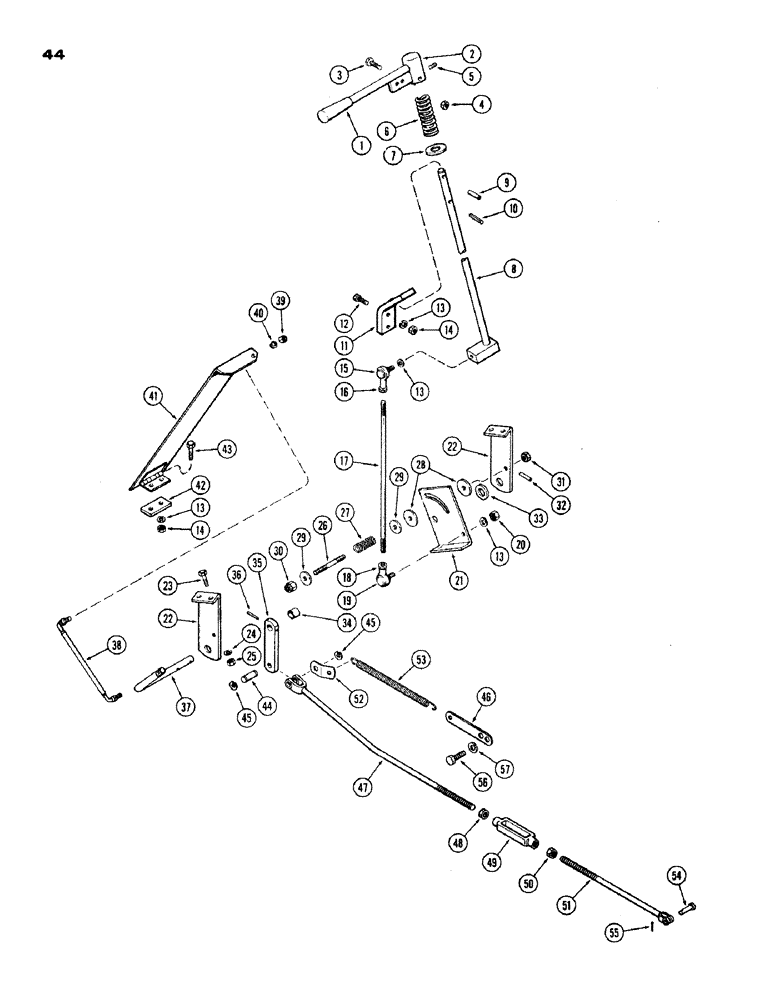

Схема запчастей Case IH 1200 - (044) - THROTTLE LINKAGE, (451) DIESEL ENGINE (03) - FUEL SYSTEM
4
43
35
10
1
32
48
56
33
13
5
14
25
38
30
24
13
18
22
21
40
12
13
20
51
49
29
31
13
9
50
39
54
2
29
6
47
57
34
37
22
17
14
16
55
26
52
46
19
15
3
23
28
7
45
42
53
27
11
45
41
44
8
36

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

- hand lever, throttle

1шт.

2

L10617

LEVER - hand throttle control

1шт.

3

A20341

BOLT - stop, throttle lever

1шт.

4

25-144

JAM NUT,Jam, 1/4"-20, G5

- jam, 1/4" N.C. hex.

1шт.

5

178-803

SET SCREW,Hex Soc, 1/4"-28 x 1/2"

SCREW - set , 1/4-28 x 1/2" headless Nylock

1шт.

6

A30146

SPRING

- tension, throttle shaft

1шт.

7

95-8

WASHER,1/2"

- plain (9/16 x 1-3/8 x 7/64") 1/2"

1шт.

8

L11388

SHAFT - hand throttle control

1шт.

9

139-98

PIN - roll, 3/16 x 1-1/4" long

1шт.

10

135-342

GROOVED PIN,3/16" x 1 1/4", Type F

PIN, GROOVED, 3/16" x 1 1/4", Type F

1шт.

11

L10612

BRACKET ASSY. - throttle control shaft

1шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Bracket mounting Hex, 1/4"-20 x 1", G5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

25-104

NUT,1/4"-20, G5

Bracket & accelerator bolt 1/4"-20, G5

4шт.

15

A55593

END

ASSY. - throttle link

1шт.

16

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

17

L10621

ROD - link, throttle

1шт.

18

129-361

NUT,Jam, 1/4"-28, G5, LH

- jam, 1/4" N.F. hex. (L.H. thread)

1шт.

19

L10622

END ASSY. - throttle link

1шт.

20

25-114

NUT,1/4"-28, G5

- hex., 1/4" N.F.

1шт.

21

L10607

LEVER - throttle control

1шт.

22

L10608

BRACKET - support, cross shaft

2шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Support bracket Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

- support bolt, 5/16" N.C. hex.

4шт.

26

L10609

STUD - adjusting, throttle tension

1шт.

27

A26546

SPRING

- tension, throttle lever

1шт.

28

L10610

DISC - friction, throttle lever

2шт.

29

195-524

WASHER,5/16"

- plain, 3/8 x 1-7/8 x 33/64"

2шт.

30

131-4

LOCK NUT,5/16"-18, GB

NUT - adj. stud, 5/16" N.C. hex. Nylock

1шт.

31

25-145

JAM NUT,Jam, 5/16"-18, G5

- adj. stud, 5/16" N.C. hex. jam

1шт.

32

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

33

195-533

WASHER,1/2", SAE

- plain, 17/32 x 1-1/16 x 7/64"

1шт.

34

D34003

SPACER - throttle cross shaft

1шт.

35

L11595

LEVER - cross shaft

1шт.

36

135-334

PULLEY

PIN - groove, 5/32 x 1" long

1шт.

37

L10605

SHAFT - throttle cross

1шт.

38

A55584

LINK ASSY.

- accelerator to cross shaft

1шт.

39

129-27

NUT,Hex, #10 - 32

- link assy., #10 N.F. hex.

2шт.

40

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

41

A55579

PEDAL ASSY. - accelerator

1шт.

42

A55583

SPACER - accelerator hinge

1шт.

43

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Accelerator Hex, 1/4"-20 x 1", G5

2шт.

44

L10118

PIN

- throttle, Serial Range: rod-lever

1шт.

45

A27795

RING

"E" RING - pin retaining

2шт.

46

L11597

BRACKET - throttle return spring

1шт.

47

L11599

ROD - rear throttle

1шт.

48

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex.

1шт.

49

L11594

TURNBUCKLE - front to rear throttle rod

1шт.

50

129-343

NUT,Jam, 3/8"-16, G5, LH

- jam, 3/8" N.C. hex. L.H. thread

1шт.

51

L11598

ROD - front throttle

1шт.

52

L11596

CLIP - return spring

1шт.

53

A22619

SPRING

- throttle return

1шт.

54

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4"

1шт.

55

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

56

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Spring bracket Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

57

92-5

LOCK WASHER,5/16"

1шт.

Выбрано товаров: 57
