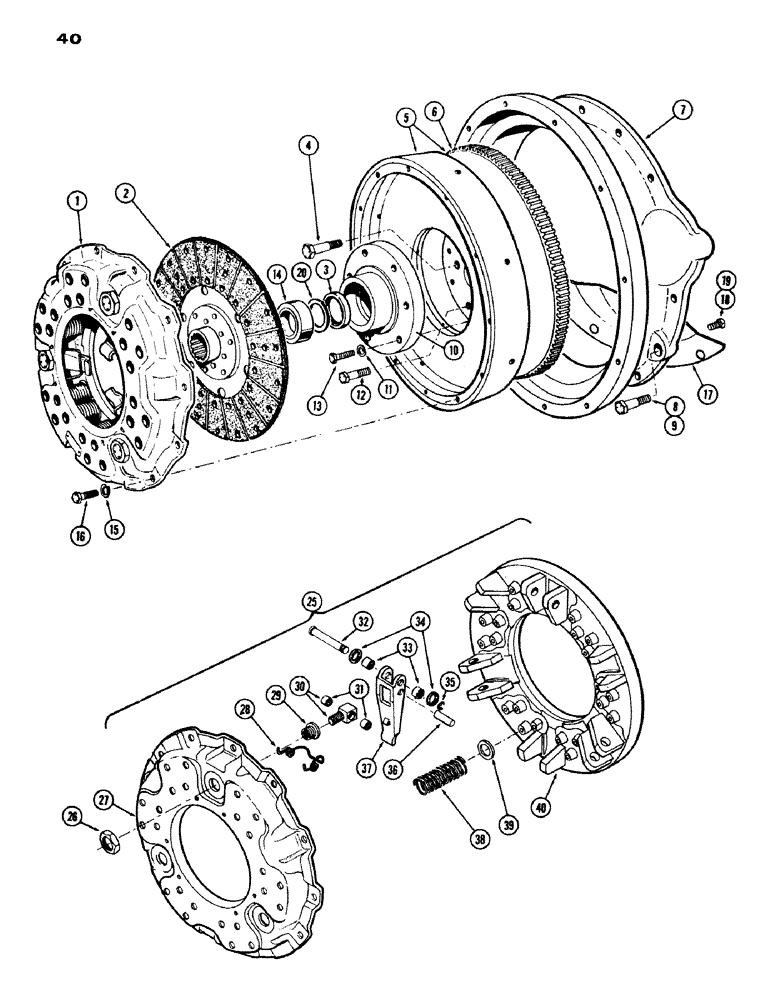

Запчасти Case IH 1200 (040) - CLUTCH-FLYWHEEL AND HOUSING, (451) DIESEL ENGINE (02) - ENGINE

1

A55171

CLUTCH

COVER ASSY. - clutch (See Ref., 25 for repairs)

1шт.

2

A55172

DISC

ASSY. - clutch

1шт.

3

A56626

OIL SEAL

- oil, PTO drive adp. (Order w/Ref. 20)

1шт.

4

A55669

STEP BOLT

BOLT - dowel, flywheel (9/16 x 2-1/8" N.F. spec.)

2шт.

5

A55174

FLYWHEEL ASSY. - engine, Includes: Ref. 6

1шт.

6

A27920

GEAR

- ring, flywheel

1шт.

7

A55173

HOUSING - flywheel

1шт.

8

A32607

STEP BOLT

- dowel, hsg. to engine (1/2 x 3" N.C.)

1шт.

9

A32608

STEP BOLT

BOLT - dowel, hsg. to engine (1/2 x 2-3/16" N.C.)

1шт.

10

A55174

ADAPTER ASSY. - PTO drive

1шт.

41-24

PLUG

- welch, adapter seal (not illust.)

1шт.

11

92-7

LOCK WASHER,7/16"

8шт.

12

A55668

BOLT - flywheel mtg. (5/8 x 2-5/32" N.F. spec.)

4шт.

13

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

Adpt. to flywheel Hex, 7/16"-14 x 1 3/4", G5

8шт.

14

A55664

BALL BEARING

BEARING - P.T.O. drive adapter

1шт.

15

92-6

LOCK WASHER,3/8"

12шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clutch to flywheel Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

17

A14508

X

SHIELD - dust, clutch housing

1шт.

18

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Dust shield Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- dust shield (1/2 x 3/4" N.C. hex. hd.)

2шт.

20

A56627

WASHER

- adpt. seal (Order w/Ref. 3)

1шт.

25

A55171

CLUTCH

COVER PLATE ASSY. - clutch, Includes: Ref. 26 - 40

1шт.

26

A55920

NUT - hex. lock, eyebolt, clutch

3шт.

27

A55914

COVER

ASSY. - clutch

1шт.

28

A55922

SPRING - clutch retractor

3шт.

29

A55923

NUT - adjusting, clutch

3шт.

30

A55918

EYEBOLT ASSY. - clutch, Includes: Ref. 31

3шт.

31

NSS

NOT SOLD SEPARAT

BEARING - needle, eyebolt (Order Ref. 30), clutch

2шт.

32

A55925

PIN - pressure plate to lever, clutch

3шт.

33

A27287

NEEDLE BEARING,0.439" ID x 0.6245" OD x 0.5"

BEARING - needle, clutch lever

6шт.

34

195-29

WASHER,7/16"

- plain, 15/32 x 59/64 x 1/16", clutch

6шт.

35

A55926

RING

"E" RING - lever pin retaining, clutch

3шт.

36

A55921

PIN - eyebolt retainer, clutch

3шт.

37

A55927

LEVER

- clutch release

3шт.

38

A55917

SPRING

- clutch pressure

15шт.

IT IS RECOMMENDED THAT A COMPLETE SET OF SPRINGS BE INSTALLED WHEN CLUTCH IS REPAIRED

1шт.

39

A55924

INSULATOR

- pressure spring, clutch

15шт.

40

A55912

PLATE ASSY. - pressure, clutch

1шт.
