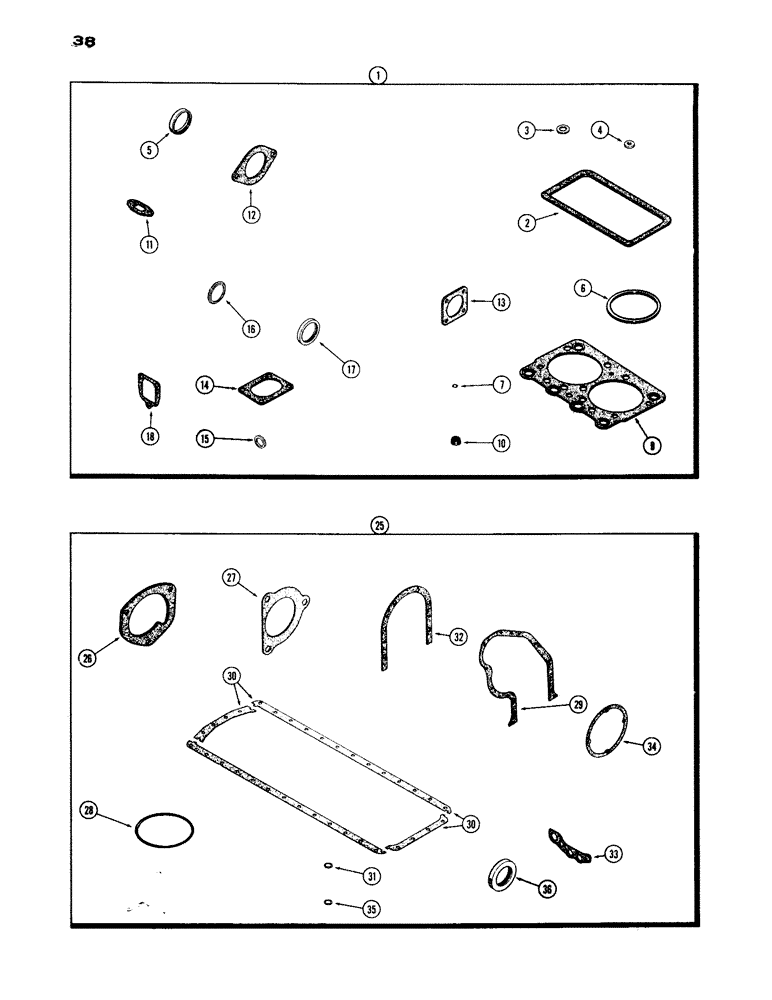

Запчасти Case IH 1200 (038) - ENGINE GASKET KITS, (451) DIESEL ENGINE (02) - ENGINE

1

A41578

GASKET KIT

- valve grind (Replaced A34687), Includes: Ref. 2 - 18

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER BOTH A41578 & A24994 GASKET KITS

1шт.

2

A57595

CYLINDER HEAD GASKET

- cylinder head cover (Replaced A27972)

3шт.

3

A23685

GASKET

- breather, Serial Range: tube-cover

3шт.

4

A23684

GASKET

GASKET - valve cover stud

6шт.

5

A11423

SEAL

- thermostat

1шт.

6

A34686

RING

- fire, cyl. head gasket

6шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocket arm shaft tube

3шт.

9

A57593

GASKET

- cylinder head w/grommets, (Replaces A41385)

3шт.

10

A10726

SEAL

SHIELD - intake valve stem (rubber)

6шт.

11

A27905

GASKET

- water manifold

6шт.

12

A11421

GASKET

- thermostat housing

1шт.

13

A20915

GASKET

- intake manifold elbow

1шт.

14

A20678

GASKET

- int. manifold elbow

1шт.

15

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - fuel inj. nozzle

1шт.

16

A11888

MANIFOLD GASKET

- exhaust manifold

6шт.

17

A21054

MANIFOLD GASKET

- intake manifold

3шт.

18

A22939

GASKET

- decompressor opening (Not used)

3шт.

25

A24994

GASKET

KIT - cylinder block, Includes: Ref. 26 - 36

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER BOTH A41578 & A24994 GASKET KITS

1шт.

26

A57596

GASKET

- water pump mounting

1шт.

27

A27933

GASKET

- starter motor mounting

1шт.

28

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump drive housing

1шт.

29

A33018

GASKET

- timing gear cover

1шт.

30

A15391

GASKET

KIT - oil pan

1шт.

31

A58608

GASKET

- drain plug, oil pan

1шт.

32

A32830

GASKET

- crankshaft retainer (rear)

1шт.

33

A21084

GASKET

- filter, Serial Range: base-block

1шт.

34

NOTUSED

GASKET - timing cap (Not used w/this application)

1шт.

35

NOTUSED

GASKET - drain plug (Not used w/this application)

1шт.

36

A57342

SEAL

- oil, crankshaft front (Replaces A23433)

1шт.
