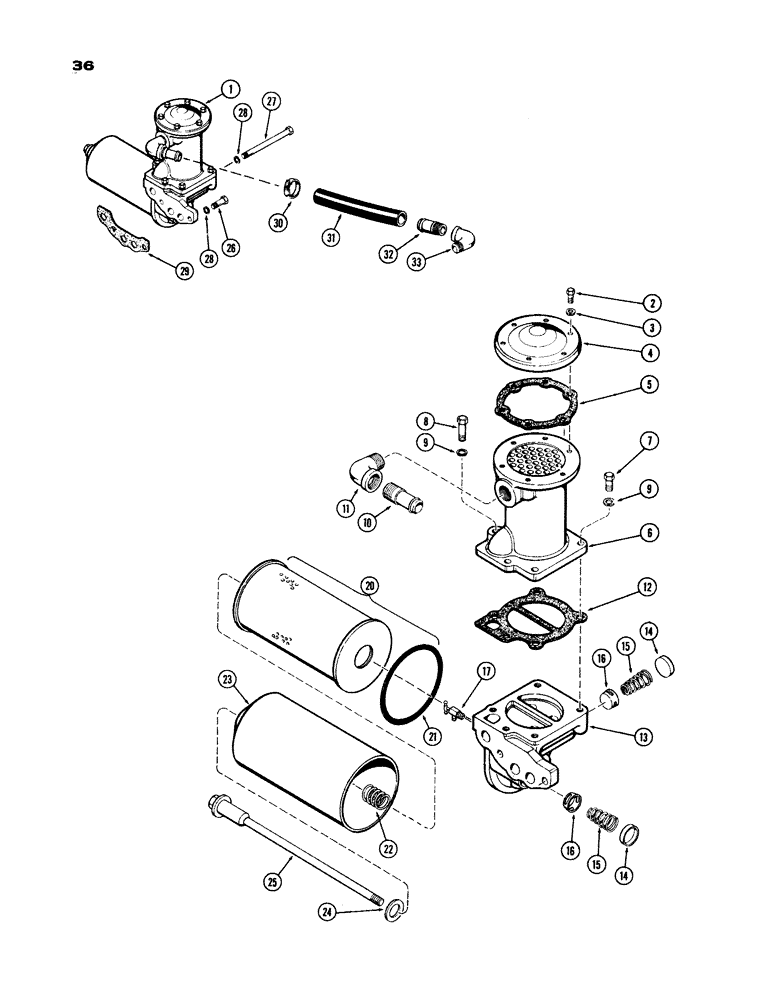

Запчасти Case IH 1200 (036) - OIL COOLER AND FILTER, (451) DIESEL ENGINE (02) - ENGINE

1

A21128

COOLER & FILTER ASSY. - oil, engine, Includes: Ref. 2 - 25

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Cooler cap Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

3

92-5

LOCK WASHER,5/16"

6шт.

4

A23030

CAP

- oil cooler

1шт.

5

A21088

GASKET

- cap to oil cooler

1шт.

6

A21086

COOLER ASSY.

- engine oil

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cooler mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Cooler mounting Hex, 3/8"-16 x 1 3/4", G5

1шт.

9

92-6

LOCK WASHER,3/8"

5шт.

10

A16529

NIPPLE, LUBE

NIPPLE - cooler to water pump hose

1шт.

11

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- street, 90 deg. - 3/4 x 3/4" N.P.T.

1шт.

12

A21087

GASKET

- cooler to filter base

1шт.

13

A23473

BASE

ASSY. - oil cooler and filter, Includes: Ref. 14 - 17

1шт.

14

41-1620

PLUG,Cup, 1 1/4", Stainless

- spring retaining

2шт.

15

A21091

VALVE SPRING

SPRING - valve retaining

2шт.

16

A21090

VALVE

- relief

2шт.

17

A23655

VALVE

ASSY. - base drain

1шт.

NSS

NOT SOLD SEPARAT

FILTER ASSY. - engine oil (Order components), Includes: Ref. 20 - 25

1шт.

20

A20822

ENGINE OIL FILTER

ELEMENT KIT - filter, w/gasket, Includes: Ref. 21

1шт.

21

20429

SPRING

GASKET - filter, Serial Range: shell-base

1шт.

22

A20427

VALVE SPRING

SPRING - element retaining

1шт.

23

A20824

SHELL

- element housing

1шт.

24

A20426

GASKET

WASHER - stand pipe

1шт.

25

A20825

PIPE

STAND PIPE - shell retainer

1шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Base mounting Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

27

15-888

BOLT

- base mtg., 1/2 x 5-1/2" N.C. hex. hd.

1шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

A21084

GASKET

- filter, Serial Range: base-block

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

31

A24989

HOSE - water, cooler to water pump

1шт.

32

A16529

NIPPLE, LUBE

NIPPLE - hose to elbow (1-3/64" O.D. x 3/4" N.P.T.)

1шт.

33

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 90deg. street, 3/4" N.P.T.

1шт.
