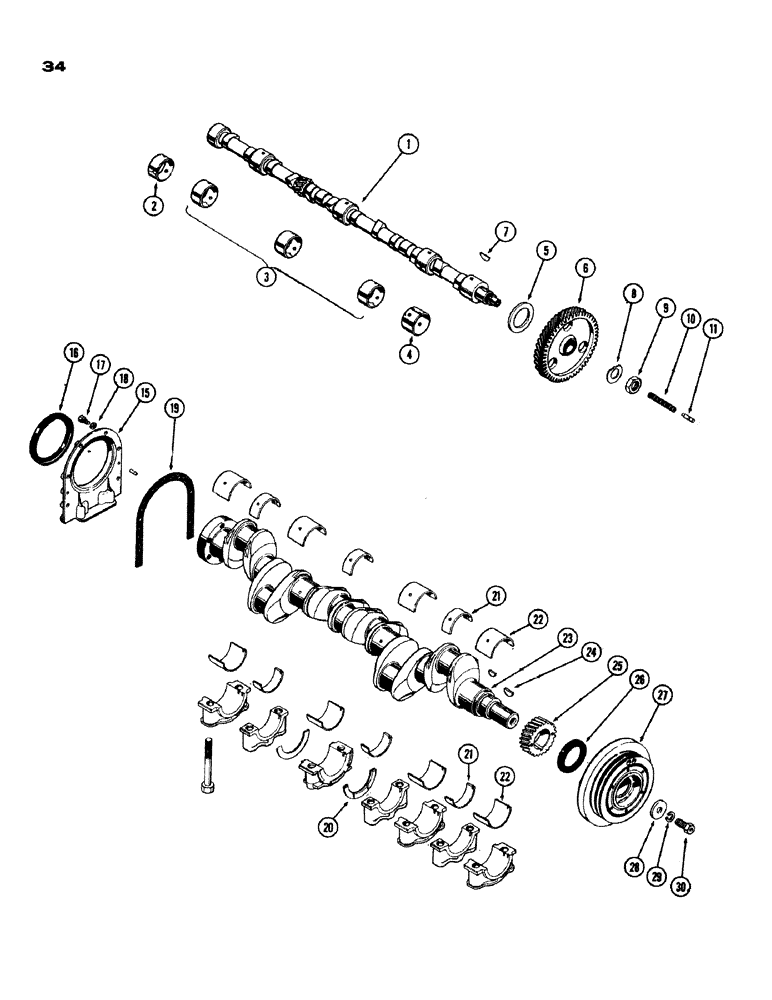

Запчасти Case IH 1200 (034) - CAMSHAFT, (451) DIESEL ENGINE (02) - ENGINE

1

A34968

X

CAMSHAFT - engine (Cast iron)

1шт.

A23544

BUSHING

KIT - camshaft (Set of 5), Includes: Ref. 2 - 4

1шт.

2

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, (1-5/32" long) (Order A23544)

1шт.

3

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate (1-7/16" long) (Order A23544)

3шт.

4

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front (1-21/32" long) (Order A23544)

1шт.

5

A21017

WASHER

- thrust (2-1/4 x 3-17/32 x 1/8")

1шт.

6

A22604

GEAR

- camshaft

1шт.

7

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

8

A26444

LOCK WASHER

LOCK - camshaft nut

1шт.

9

A26445

NUT

- camshaft

1шт.

10

P0027853A

LARGE PIN

- camshaft plunger

1шт.

11

A27852

PLUNGER

- thrust, camshaft

1шт.

15

A57457

RETAINER

- crankshaft, rear (Replaces A32182)

1шт.

16

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer, crankshaft Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

crankshaft 3/8"

6шт.

19

A32830

GASKET

- crankshaft retainer mounting

1шт.

20

A27835

WASHER

- thrust, crankshaft (Std. size)

2шт.

20

A7204

WASHER

- thrust, crankshaft (+.006")

2шт.

21

A20394

LINING

LINER KIT - crankshaft brg. (narrow) Std. size (1 Set of 2)

3шт.

21

A20579

LINING

LINER KIT - crankshaft brg. (narrow) (-.002") (1 set of 2)

3шт.

21

A20582

LINING

LINER KIT - crankshaft brg. (narrow) (-.010") (1 set of 2)

3шт.

21

A20585

KIT

LINER KIT - crankshaft brg. (narrow) (-.020") (1 set of 2)

3шт.

21

A20585

KIT

LINER KIT - crankshaft brg. (narrow) (-.020") (1 set of 2)

3шт.

21

A20588

KIT

LINER KIT - crankshaft brg. (narrow) (-.030") (1 set of 2)

3шт.

22

A28687

LINING

LINER KIT - crankshaft brg. (wide) (Std. size) (1 set of 2)

4шт.

22

A7182

KIT

LINER KIT - crankshaft brg. (wide) (-.002") (1 set of 2)

4шт.

22

A7188

BEARING LINER

LINER KIT - crankshaft brg. (wide) (-.010") (1 set of 2)

4шт.

22

7194

THREADED TIE-ROD

LINER KIT - crankshaft brg. (wide) (-.020") (1 set of 2)

4шт.

22

A7200

KIT

LINER KIT - crankshaft brg. (wide) (-.030") (1 set of 2)

4шт.

23

A24944

CRANKSHAFT - engine

1шт.

24

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & fan drive pulley #C, 5/16" x 1 1/8", HT

2шт.

25

A27837

GEAR

- front, crankshaft

1шт.

26

A57342

SEAL

- oil, crankshaft front, (Replaces A23433)

1шт.

27

A20744

DAMPER

PULLEY - crankshaft & fan drive

1шт.

28

A27903

WASHER

- pulley retaining (21/32 x 2-1/8 x 3/8"), crankshaft

1шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft 5/8"

1шт.

30

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley retaining (5/8 x 1-1/2" N.F. hex. spec.), Crankshaft

1шт.
