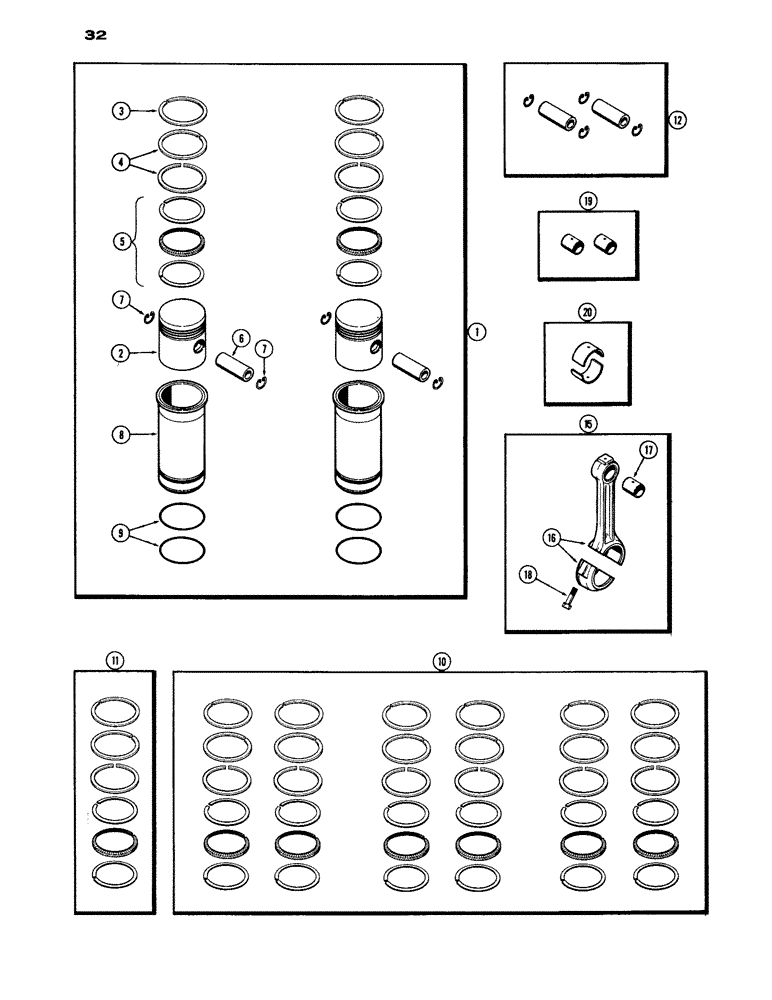

Запчасти Case IH 1200 (032) - PISTON ASSEMBLY AND CONNECTING RODS, (451) DIESEL ENGINE (02) - ENGINE

1

A41268

SLEEVE

PISTON & SLEEVE KIT - cylinder (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A57139

PISTON

- cylinder

2шт.

3

NSS

NOT SOLD SEPARAT

RING - top, piston (Order Ref. 11 or 10)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - 2nd & 3rd piston (Order Ref. 11 or 10)

4шт.

5

NSS

NOT SOLD SEPARAT

RING ASSY. - oil, piston (Order Ref. 11 or 10)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

A21016

RING, SNAP

RING - piston pin retainer

4шт.

8

A23660

SLEEVE

- cylinder, piston

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cyl. sleeve packing

4шт.

10

A41267

SET OF RINGS

RE-RING KIT - piston (Set for 6 pistons)

1шт.

11

A41266

RING

RE-RING KIT - piston (Set for single piston)

6шт.

12

A21725

KIT

PIN KIT - piston (Set of 2 pins & retainers)

3шт.

15

A24424

ROD

ASSY. - connecting, Includes: Ref. 16 - 18

6шт.

16

NSS

NOT SOLD SEPARAT

ROD - connecting (Order Ref. 15)

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Order Ref. 19)

1шт.

18

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- connecting rod cap

2шт.

19

A21722

BUSHING

KIT - connecting rod (Set of 2)

3шт.

20

A20393

LINING

LINER KIT - conn. rod brg. (Std. size) (1 Set of 2)

6шт.

20

A20569

JOURNAL

LINER KIT - conn. rod brg. (-.002") (1 Set of 2)

6шт.

20

A20571

BEARING LINER

LINER KIT - conn. rod brg. (-.010") (1 Set of 2)

6шт.

20

A20573

KIT

LINER KIT - conn. rod brg. (-.020") (1 Set of 2)

6шт.

20

A20576

LINING

LINER KIT - conn. rod brg. (-.030") (1 Set of 2)

6шт.

A150221

SHIM

.010

1шт.

A150306

SHIM

.005

1шт.

A150326

BUSHING,124.21mm ID x 127.14mm OD x 30.15mm L

LOWER BORE, 4.375

1шт.
