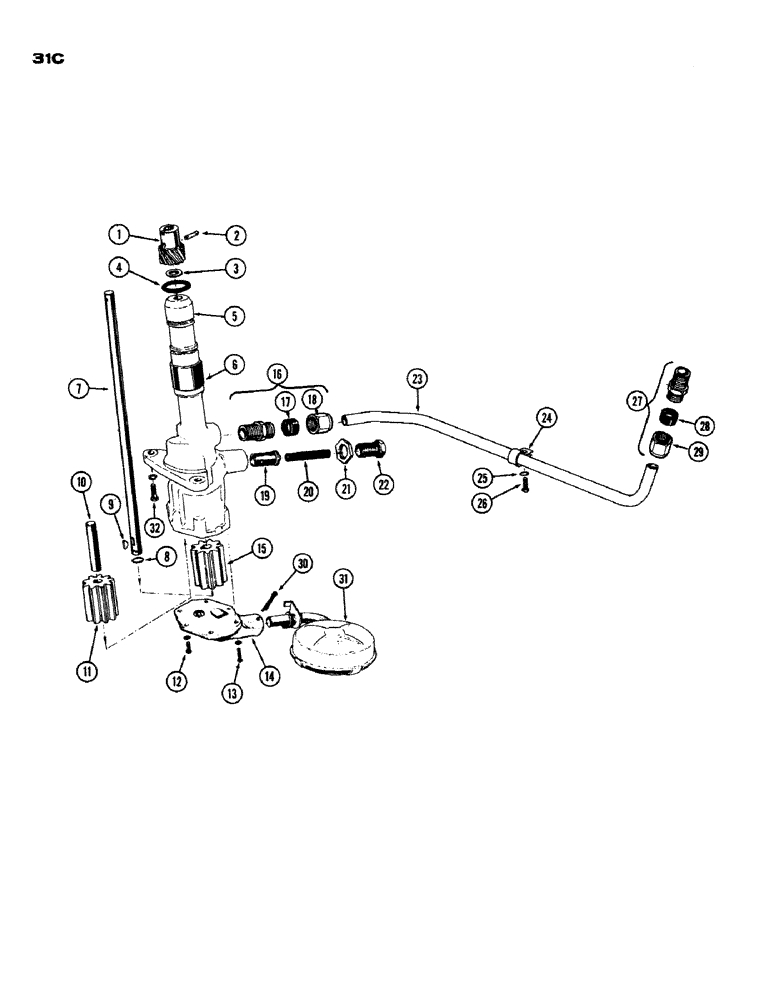

Запчасти Case IH 1200 (031A) - OIL PUMP, (451) DIESEL ENGINE, CAMSHAFT DRIVEN, USED PRIOR TO ENGINE SERIAL NUMBER 2174160 (02) - ENGINE

A33878

PUMP

ASSY. - oil, engine, Includes: Ref. 1 - 22

1шт.

1

A33840

GEAR WHEEL

GEAR - oil pump drive (Steel, tin plated)

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

A27857

WASHER

- thrust, pump drive gear

1шт.

4

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump body

2шт.

5

A21094

BODY

ASSY. - oil pump, Includes: Ref. 6

1шт.

6

A21079

SLEEVE

- oil pump body

1шт.

7

A21102

SHAFT

- oil pump drive

1шт.

8

A10916

RING, SNAP

RING - snap, oil pump shaft

1шт.

9

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Oil pump drive shaft #5, 1/8" x 5/8"

1шт.

10

A27854

SHAFT

- stub, oil pump

1шт.

11

A27856

GEAR WHEEL

GEAR - oil pump, w/out keyway

1шт.

12

75-424

SCREW

- 1/4 x 1-1/2" N.C. rd. hd. mach.

1шт.

13

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4 x 3/4" N.C. rd. hd. mach.

5шт.

14

A33442

COVER - oil pump body

1шт.

15

A27855

GEAR WHEEL

GEAR - oil pump drive shaft, w/keyway

1шт.

16

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 5/8" tube x 1/2" P.T., Includes: Ref. 17 and 18

1шт.

17

222-106

SLEEVE,5/8" Tube

- connector, 5/8" Tube

1шт.

18

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tuber

1шт.

19

A22566

PLUNGER

- relief, oil pump

1шт.

20

A23598

VALVE SPRING

SPRING - relief

1шт.

21

A27858

NUT

- relief adjusting screw

1шт.

22

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, pump relief

1шт.

23

A20735

TUBE

- oil, Serial Range: pump-filter

1шт.

24

A10852

CLIP - oil tube

1шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

26

A10072

BOLT,3/8" - 16 x 3/4"

SCREW - tube clamp w/nylock insert

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 5/8' tube x 1/2" P.T., Includes: Ref. 28 and 29

1шт.

28

222-106

SLEEVE,5/8" Tube

- connector, 5/8" Tube

1шт.

29

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tube

1шт.

30

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

31

A27476

FILTER SCREEN

SCREEN - oil pump, Float-O-Type

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.
