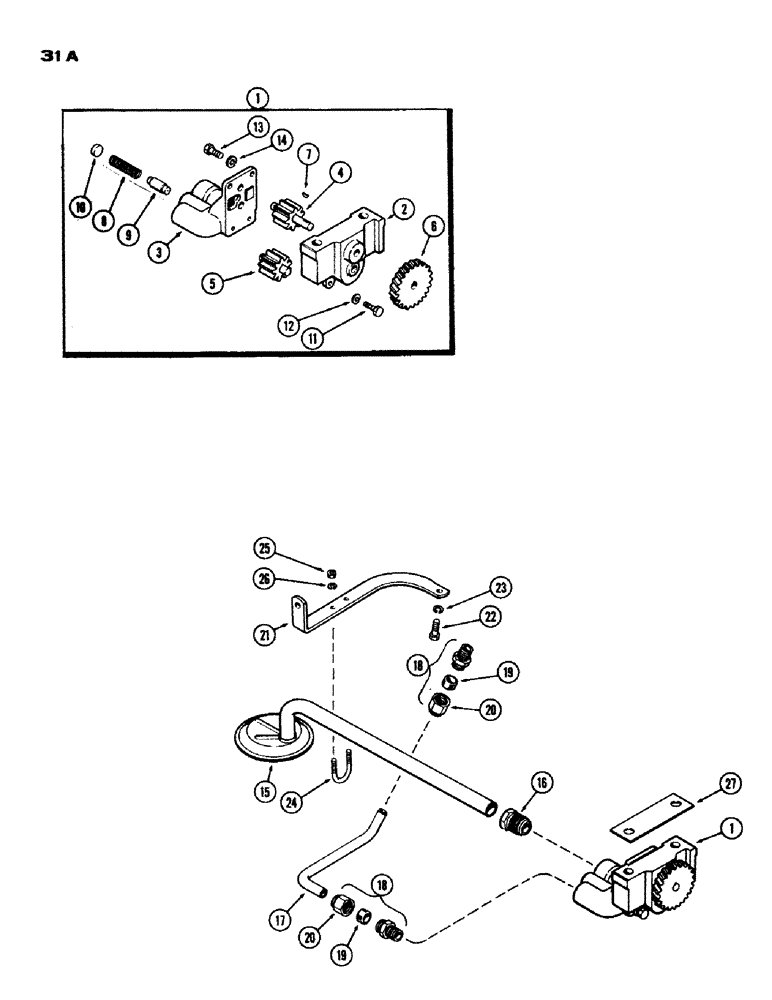

Запчасти Case IH 1200 (031) - OIL PUMP, (451) DIESEL ENGINE, FRONT MOUNTED, USED ENGINE SERIAL NUMBERS 2174160 TO 22002205 (02) - ENGINE

1

A34940

PUMP ASSY. - engine oil (Use A57486), Includes: Ref. 2 - 14

1шт.

2

A34941

X

BODY - oil pump (Use 1-A57487, 1-A57488, 4-13-518 and 4-92-5

1шт.

3

A34991

COVER

- pump body (Use A41724)

1шт.

4

A34942

GEAR ASSY. - pump, w/shaft & key (lead gear)

1шт.

5

A34945

GEAR ASSY. - pump, w/shaft (follow gear)

1шт.

6

A34947

GEAR - pump drive (external)

1шт.

7

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

8

A34993

RING

SPRING - relief valve

1шт.

9

A34992

PISTON

VALVE - relief

1шт.

10

A34951

X

PLUG - relief valve, 45/64" cup type

1шт.

11

A34950

STEP BOLT

BOLT - shoulder, 5/16 x 1" N.C. hex.

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- cover, 5/16 x 1-1/4" N.C. hex.

1шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

A34976

SCREEN

ASSY. - oil suction, w/tube

1шт.

16

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

17

A57388

TUBE

-, Serial Range: pump-filter

1шт.

18

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY. - pump tube, Includes: Ref. 19 and 20

2шт.

19

222-106

SLEEVE,5/8" Tube

- for 5/16" tube

1шт.

20

222-116

TUBE NUT,1"-18

NUT - for 5/16" tube

1шт.

21

A34980

BRACKET

SUPPORT - oil suction tube

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support to block Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A34979

BOLT

"U" BOLT - suction tube hanger

1шт.

25

25-104

NUT,1/4"-20, G5

2шт.

26

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4"

2шт.

27

A57454

SHIM,.005" Thk

Pump to frt. brg. cap (Replaces A34949) .005" Thk

1шт.

27

A57455

SHIM,.010" Thk

Pump to frt. brg. cap (Replaces A34948) .010" Thk

1шт.

27

A57456

SHIM,.025" Thk

Pump to frt. brg. cap .025" Thk

1шт.
