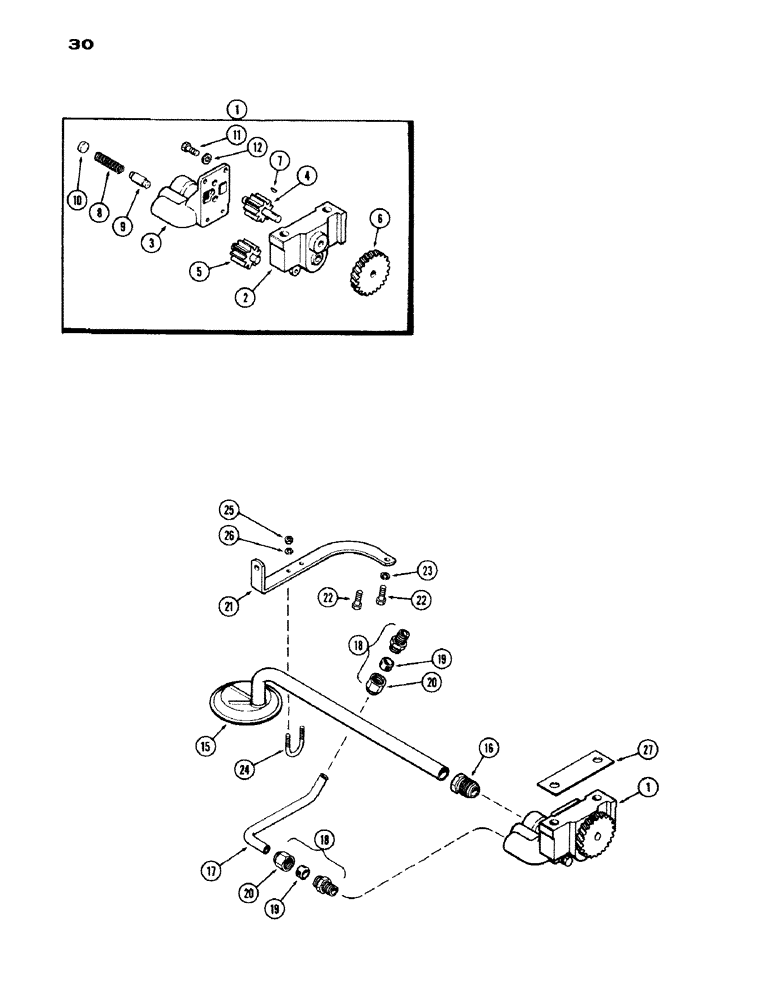

Запчасти Case IH 1200 (030) - OIL PUMP, (451) DIESEL ENGINE, FRONT MOUNTED, FIRST USED ENGINE SERIAL NUMBER 2202205 (02) - ENGINE

1

A57486

PUMP

ASSY. - engine oil, Includes: Ref. 2 - 12

1шт.

2

A57487

BODY

- oil pump

1шт.

3

A57488

COVER

- pump body

1шт.

4

A34942

GEAR ASSY. - pump, w/shaft & key (leak gear)

1шт.

5

A34945

GEAR ASSY. - pump, w/shaft (follow gear)

1шт.

6

A34947

GEAR - pump drive, (external)

1шт.

7

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

8

A34993

RING

SPRING - relief valve

1шт.

9

A34992

PISTON

VALVE - relief

1шт.

10

A34951

X

PLUG - relief valve (45/64" cup type)

1шт.

11

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Body to cover Hex, 5/16"-18 x 1 1/8", G5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

15

A34976

SCREEN

ASSY. - oil suction, w/tube

1шт.

16

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

17

A57388

TUBE

-, Serial Range: pump-filter

1шт.

18

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY. - pump tube, Includes: Ref. 19 and 20

2шт.

19

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

20

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

21

A34980

BRACKET

SUPPORT - oil suction tube

1шт.

22

A10072

BOLT,3/8" - 16 x 3/4"

SCREW - supt. to block, 3/8 x 1" N.C. hex. w/nylon insert (Replaces 1 of 13-616 bolt)

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support to block Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

A34979

BOLT

"U" CLAMP - suction tube hanger

1шт.

25

25-104

NUT,1/4"-20, G5

2шт.

26

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4"

2шт.

27

A57454

SHIM,.005" Thk

Pump to frt. brg. cap (Replaces A34949) .005" Thk

1шт.

27

A57455

SHIM,.010" Thk

Pump to frt. brg. cap (Replaces A34948) .010" Thk

1шт.

27

A57456

SHIM,.025" Thk

Pump to frt. brg. cap .025" Thk

1шт.
