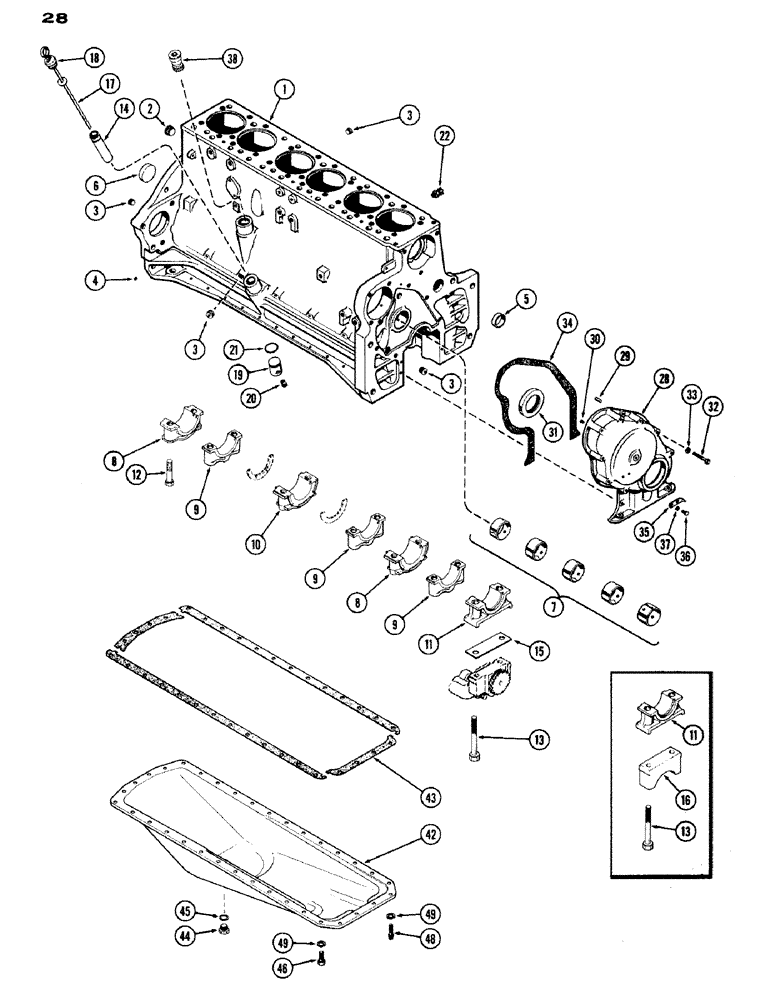

Запчасти Case IH 1200 (028) - CYLINDER BLOCK ASSEMBLY, W/FRONT MOUNTED OIL PUMP, 1ST USED ENG. S/N 2174160, (451) DIESEL ENGINE (02) - ENGINE

A41233

BLOCK ASSY. - cylinder, short (Incl. stripped block assy., pistons & rings, conn. rods & liners, camshaft & gear, crankshaft & gear, pistons, sleeves & "O" rings, tach. drive, rear seal & retainer & oil filler socket), Includes: Ref. 1 - 16

1шт.

1

A41224

BLOCK

ASSY. - cylinder, stripped, Includes: Ref. 2 - 16

1шт.

2

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" P.T. sq. socket hd.

1шт.

3

221-1843

PLUG

- pipe, 3/8" P.T. hex. socket hd.

5шт.

4

221-41

PLUG

- pipe, 1/8" P.T. sltd. hdless

5шт.

5

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery (1-3/4" cup type)

1шт.

6

A24361

PLUG

- camshaft rear hole (2-3/8" cup type)

1шт.

7

A23544

BUSHING

KIT - camshaft (Set of 5)

1шт.

8

A24941

CAP

- main brg. (2-7/16" wide)

2шт.

9

A24942

CYLINDER END CAP

CAP - main brg. (1-7/16" wide)

3шт.

10

A24943

CAP

- main brg., thrust (2-7/16" wide)

1шт.

11

A34937

HOLDER

CAP - main brg., front (2-7/16" wide)

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

SCREW - brg. cap (5/8 x 3-1/4" N.C. spec.)

12шт.

13

113-637

BOLT

- frt. brg. cap & oil pump (5/8 x 6" N.C. hex.)

2шт.

14

A34540

TUBE

- oil gauge socket

1шт.

15

A57454

SHIM,.005" Thk

Oil pump to brg. cap (Replaces A34949) .005" Thk

1шт.

15

A57455

SHIM,.010" Thk

Oil pump to brg. cap (Replaces A34948) .010" Thk

1шт.

15

A57456

SHIM,.025" Thk

Oil pump to brg. cap .025" Thk

1шт.

16

A57076

SPACER - oil pump (Not used in this appl.)

1шт.

17

A34541

DIPSTICK

GAUGE ASSY. - oil level (Dipstick), Includes: Ref. 18

1шт.

18

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick (3/4 x 1 x 1/8")

2шт.

19

A34964

PLUG

- oil gallery hole

1шт.

20

A22593

SET SCREW,1/4" - 18 x 7/8"

- plug, oil gallery

1шт.

21

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - plug (1-3/16 x 1-7/16 x 1/8")

1шт.

22

A23656

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

28

A57403

COVER

ASSY. - timing gears, Includes: Ref. 29 - 31

1шт.

29

A27840

PIN

- cover locating (5/16 x 3/4")

2шт.

30

A27869

BUTTON - thrust bumper (Rubber)

1шт.

31

A57342

SEAL

- oil crankshaft front, (Replaces A23433)

1шт.

32

13-166

PIVOT

BOLT - cover, 3/8 x 1" N.C. hex.

2шт.

32

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, 3/8 x 2-1/2" N.C. hex.

8шт.

33

92-6

LOCK WASHER,3/8"

10шт.

34

A33018

GASKET

- timing gear cover

1шт.

35

A28218

POINTER - timing, engine

1шт.

36

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

37

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int.-ext. lock

2шт.

38

A34266

DRIVE

ASSY. - tachometer

1шт.

42

A34982

CASE

PAN - oil, engine

1шт.

43

A15391

GASKET

KIT - oil pan

1шт.

44

A14280

PLUG

- drain, oil pan

1шт.

45

A58608

GASKET

- drain plug, oil pan

1шт.

46

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Pan to block, cover & rear ret., oil Hex, 3/8"-16 x 7/8", G5, Full Thd

30шт.

48

A34929

BOLT (SPREADER)

BOLT - pan to cover center (3/8 x 1-1/8" N.C. 12 pt. hd.), oil

2шт.

49

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.
