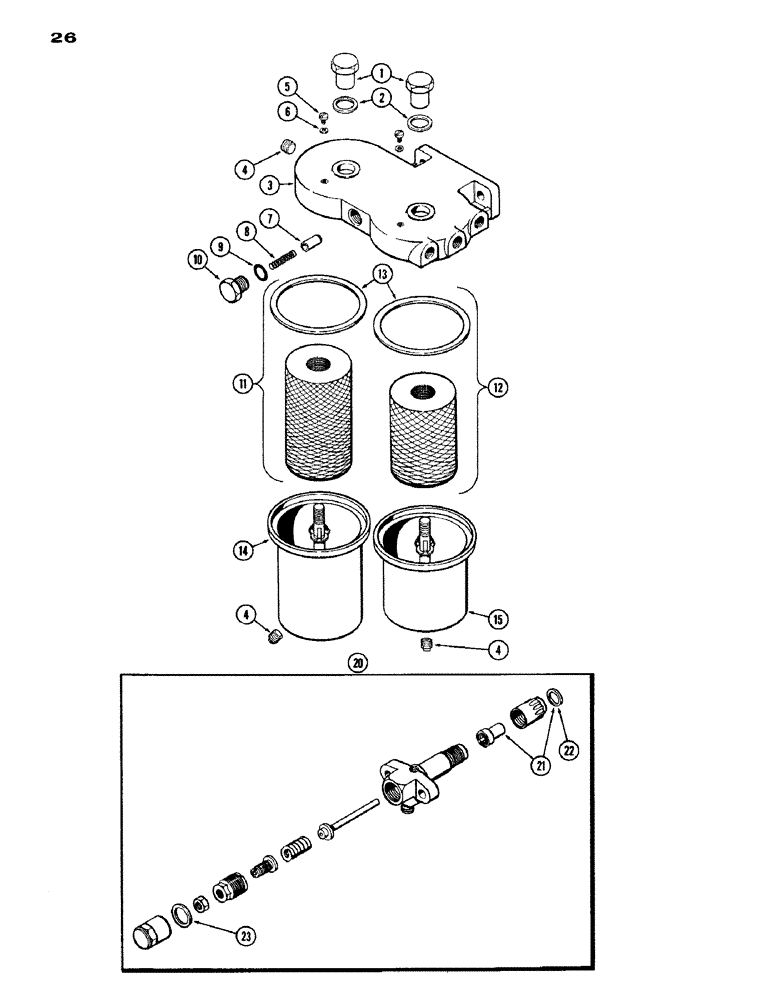

Запчасти Case IH 1200 (026) - FUEL FILTER, (451) DIESEL ENGINE (02) - ENGINE

A40435

FILTER

ASSY. - fuel primary (1st & 2nd stage), Includes: Ref. 1 - 15

1шт.

1

A21131

NUT

- filter head

2шт.

2

A28055

GASKET

- filter head nut

2шт.

3

A24915

HEAD - filter, 1st & 2nd stage

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" P.T. ctsk. sckt. hd.

3шт.

5

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

6

A20662

GASKET

- bleed screw

2шт.

7

A24917

PLUNGER

- overflow

1шт.

8

A24918

SPRING

- plunger

1шт.

9

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - overflow plug

1шт.

10

A24916

PLUG

- overflow regulator

1шт.

11

A21141

FILTER, ELEMENT

ELEMENT KIT - first stage filter (Incl. Ref. 13)

1шт.

12

A7627

FILTER, ELEMENT

ELEMENT KIT - second stage filter (Incl. Ref. 13)

1шт.

13

A28056

GASKET

- 1st & 2nd stage body

1шт.

14

A21129

BODY

- first stage filter

1шт.

15

A21132

BODY

- second stage filter

1шт.

20

A21149

INJECTOR ASSY. - fuel injection, Includes: Ref. 21 - 23

6шт.

21

A24972

NOZZLE INJECTION

NOZZLE ASSY. - fuel injector, Includes: Ref. 22

1шт.

22

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle, fuel

1шт.

23

A31062

GASKET

- injector cap, fuel

1шт.
