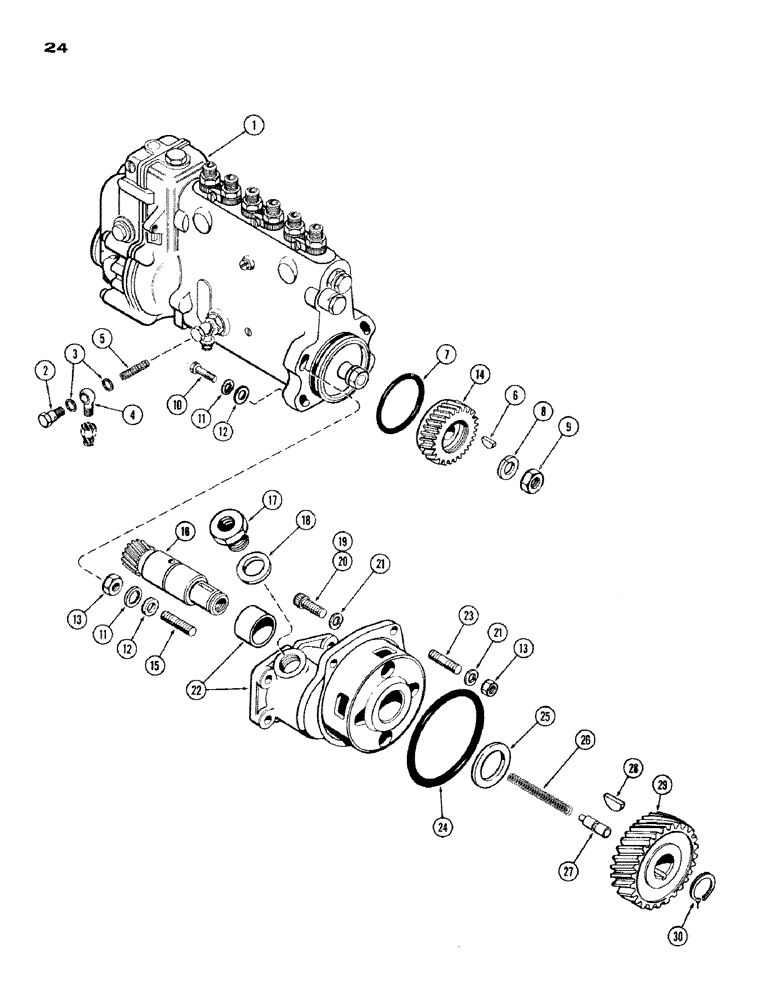

Запчасти Case IH 1200 (024) - FUEL INJECTION PUMP AND DRIVE, (451) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A24939
PUMP ASSY. - fuel, multi-plunger (2000 RPM), Includes: Ref. 2 - 9
1шт.
2
A25192
BANJO BOLT
SCREW -, Serial Range: connector-pump
1шт.
3
A22381
WASHER
- lube oil fitting (Copper)
2шт.
4
A25191
FITTING
- connector, oil gallery tube
1шт.
5
A25190
SPRING
- lube oil fitting
1шт.
6
A20933
KEY
- fuel pump shaft (Woodruff)
1шт.
7
A42056
O-RING,2.598" ID x 2.834" OD x 0.118"
"O" RING - fuel pump to housing (Replaces A20529)
1шт.
8
A25188
WASHER
- lock, pump shaft
1шт.
9
A25189
NUT - hex, pump shaft (Special)
1шт.
10
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex. hd., 3/8 x 1-1/2" N.C.
2шт.
11
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
12
195-25
WASHER,3/8"
- 13/32 x 13/16 x 1/16"
2шт.
12
A57470
WASHER
- plain (13/32 x 11/16 x 16 Ga.) (outside)
2шт.
13
25-116
NUT,Hex, 3/8"-24, G5
- hex., 3/8" N.F.
3шт.
14
A21139
GEAR
- driven, fuel pump drive
1шт.
15
A20664
STUD - drive hsg. mounting (3/8" N.F. x 1-7/8")
2шт.
16
A20622
GEAR
PINION & SHAFT - fuel pump drive
1шт.
17
A18550
PLUG
- timing window
1шт.
18
A58613
SEALING WASHER
WASHER - timing plug (Replaces A27947)
1шт.
19
61-620
HEX SOC SCREW,3/8"-16 x 1 1/4"
SCREW - cap, 3/8" x 1-1/4" N.C., hex. sckt. hd.
1шт.
20
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
21
92-6
LOCK WASHER,3/8"
3шт.
22
A21136
HOUSING ASSY,. - fuel pump (w/bsg.)
1шт.
23
A26554
STUD - mtg., drive housing (3/8" N.C./N.F. x 1-9/16")
1шт.
24
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
"O" RING - fuel pump drive hsg.
1шт.
25
A27864
WASHER
- thrust, drive gear (1-3/8 x 2-3/32 x 1/8")
1шт.
26
A27853
SPRING
- thrust plunger
1шт.
27
A27852
PLUNGER
- pinion thrust
1шт.
28
126-66
WOODRUFF KEY
KEY - drive gear (Woodruff #141)
1шт.
29
A20899
GEAR WHEEL
GEAR - fuel pump drive
1шт.
30
A27576
SNAP RING,#98, Ext
Ring, Snap, , drive gear #98, Ext
1шт.
Выбрано товаров: 31
