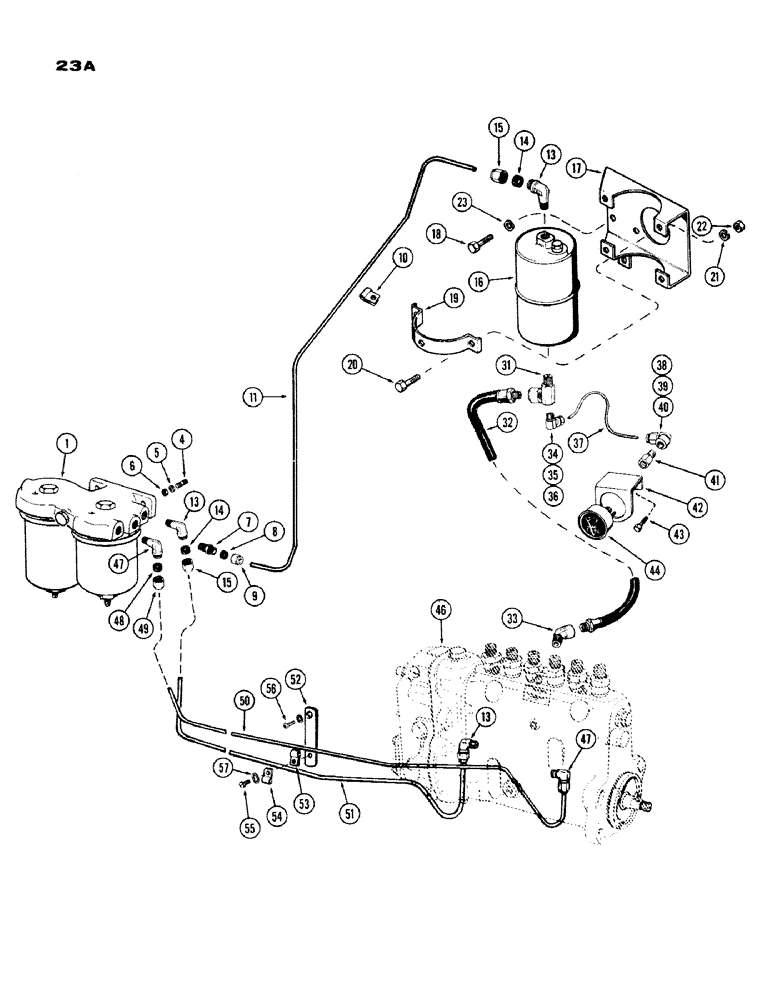

Запчасти Case IH 1200 (023) - FUEL INJ. FILTER SYSTEM, (451) DIESEL ENG., 3 STAGE FILTER SYSTEM, USED PRIOR TO ENG. S/N 22005978 (02) - ENGINE

1

A40435

FILTER

ASSY. - fuel primary (Repairs, F.27)

1шт.

4

A26554

STUD - filter mounting (3/8" N.F. x 1-9/16")

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

2шт.

7

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - #68 ft., 5/16" tube x 1/4" P.T., Includes: Ref. 8 and 9

1шт.

8

222-103

SLEEVE,5/16" Tube

- connector, #60 fl. 5/16" Tube

1шт.

9

222-113

TUBE NUT,9/16"-24

NUT - hex., conn., #61 fl. x 5/16" tube

1шт.

10

A7922

CLIP

- final filter tube

1шт.

11

A22184

TUBE

- primary filter to final filter

1шт.

13

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 90 deg. x 5/16" tube x 1/4" P.T., Includes: Ref. 14 and 15

3шт.

14

222-103

SLEEVE,5/16" Tube

- elbow, #60 fl. x 5/16" Tube

1шт.

15

222-13

FITTING,1/2"-20 Inv Fl x 1/8" NPT Fem

NUT - hex., #61 fl. x 5/16" tube

1шт.

16

A57228

FILTER

ASSY. - final stage

1шт.

17

A33617

BRACKET - final filter mounting

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

19

A21144

CLAMP

- retainer, final filter

2шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" N.C.

4шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

3шт.

31

A20539

FITTING

UNION - adapter, fuel hose & gauge tube

1шт.

32

A20538

FUEL HOSE,0.38" ID x 8.50"

Final filter to fuel pump 0.38" ID x 8.50"

1шт.

33

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street ell, 45deg. x 1/4" P.T. (Brass)

1шт.

34

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - #68 fl. x 1/8" tube x 1/8" P.T., Includes: Ref. 35 and 36

1шт.

35

222-100

TUBE NUT,1/8" Tube

SLEEVE - elbow, #60 fl. x 1/8" Tube

1шт.

36

222-110

TUBE NUT,3/8"-24

NUT - hex., #61 fl. x 1/8" tube

1шт.

37

A9364

TUBE

- pressure gauge to final filter

1шт.

38

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - #70 fl., 90 deg. x 1/8" tube x 1/8" P.T., Includes: Ref. 39 and 40

1шт.

39

222-100

TUBE NUT,1/8" Tube

SLEEVE - elbow, #60 fl. x 1/8" Tube

1шт.

40

222-110

TUBE NUT,3/8"-24

NUT - hex., #61 fl. x 1/8" tube

1шт.

41

A28061

FITTING

SNUBBER - pressure, Serial Range: gauge-elbow

1шт.

42

A57077

BRACKET

SUPPORT - fuel pressure gauge

1шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

44

A8101

GAUGE

ASSY. - fuel pressure (Replaces A11471)

1шт.

46

A24939

PUMP ASSY. - fuel, multi-plunger (Repairs, F.25)

1шт.

47

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - #69 fl, 90 deg. x 3/8" tube x 1/4" P.T., Includes: Ref. 48 and 49

2шт.

48

222-104

SLEEVE,3/8" Tube

- elbow, #60 fl. x 3/8" Tube

1шт.

49

222-114

NUT,5/8"-24

NUT - hex., #61 fl. x 3/8" tube

1шт.

50

A20693

TUBE

- fuel, first stage to fuel pump

1шт.

51

A20531

TUBE

- fuel, second stage to fuel pump

1шт.

52

A20537

SUPPORT - retainer, 1st & 2nd stage tube

1шт.

53

A20688

CLIP

- first stage, Serial Range: tube-bracket

1шт.

54

A27814

X

CLIP - second stage, Serial Range: tube-bracket

1шт.

55

72-46

SCREW - mach., 1/4 x 3/8" N.F. Fillister hd.

1шт.

56

175-439

SCREW - mach., 3/8 x 3/4" Truss hd.

1шт.

57

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int. lock

1шт.
