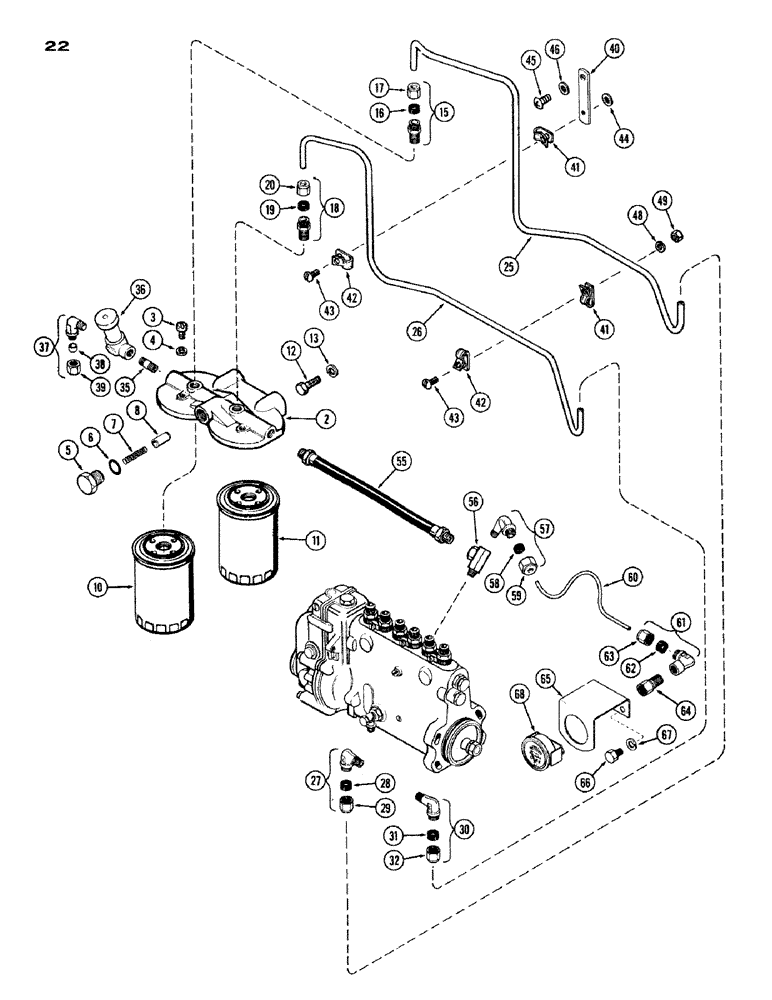

Запчасти Case IH 1200 (022) - FUEL INJECTION FILTER SYSTEM, (451) DIESEL ENG., 2 STAGE FILTER SYSTEM, FIRST USED ENG. S/N 2205978 (02) - ENGINE

A60032

HEAD

ASSY. - 1st & 2nd stage filter, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, #10-32 x 5/16" fill. hd.

2шт.

4

A20662

GASKET

- bleed screw, 3/16 x 3/8 x 3/64" fiber

2шт.

5

A24916

PLUG

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug, 1/2 x 11/16 x 3/32"

1шт.

7

A24918

SPRING

- relief valve

1шт.

8

A24917

PLUNGER

- relief valve

1шт.

CASA41745

FUEL FILTER

FILTER KIT - (Set of 2), Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 1st stage (13/16"-16 attaching threads)

1шт.

11

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage (15/16"-16 attaching threads)

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

15

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube, 1/4" P.T. (1st stage), Includes: Ref. 16 and 17

1шт.

16

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

17

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

18

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T. (2nd stage), Includes: Ref. 19 and 20

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

25

A57866

TUBE

- 1st stage filter to pump (3/8" O.D,. tube)

1шт.

26

A57867

TUBE

- pump to 2nd stage filter (5/16" O.D. tube)

1шт.

27

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube, 1/4" P.T. (1st stage), Includes: Ref. 28 and 29

1шт.

28

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

29

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

30

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T., Includes: Ref. 31 and 32

1шт.

31

222-103

SLEEVE,5/16" Tube

1шт.

32

222-113

TUBE NUT,9/16"-24

NUT - for 5/169" tube

1шт.

35

221-138

NIPPLE, LUBE,Nipple, 1/4" NPT x 2 1/2"

NIPPLE - 1/4" P.T. x 2-1/2"

1шт.

36

A23865

PUMP

- primer, hand

1шт.

37

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube, 1/4" P.T., Includes: Ref. 38 and 39

1шт.

38

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

39

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

40

A20537

SUPPORT - retainer, 1st & 2nd stage tube

1шт.

41

A20688

CLIP

- 1st stage tube

2шт.

42

A27814

X

CLIP - 2nd stage tube

2шт.

43

72-46

SCREW - 1/4" N.F. rd. hd., mach.

1шт.

44

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int.

1шт.

45

175-439

SCREW - 3/8 x 3/4" truss hd., mach.

1шт.

46

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

47

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" N.C. rd. hd. mach.

1шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

49

25-104

NUT,1/4"-20, G5

1шт.

55

A57865

HOSE

- 2nd, Serial Range: stage-pump

1шт.

56

A20539

FITTING

UNION - adapter, fuel hose & gauge tube

1шт.

57

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 58 and 59

1шт.

58

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

59

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

60

A9364

TUBE

- pressure gauge to finalo filter

1шт.

61

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - 1/8" tube, 1/8" P.T., Includes: Ref. 62 and 63

1шт.

62

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

63

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

64

A28061

FITTING

SNUBBER - pressure, Serial Range: gauge-elbow

1шт.

65

A57077

BRACKET

SUPPORT - fuel pressure gauge

1шт.

66

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

67

92-6

LOCK WASHER,3/8"

2шт.

68

A8101

GAUGE

ASSY. - fuel pressure (Replaces A11471)

1шт.
