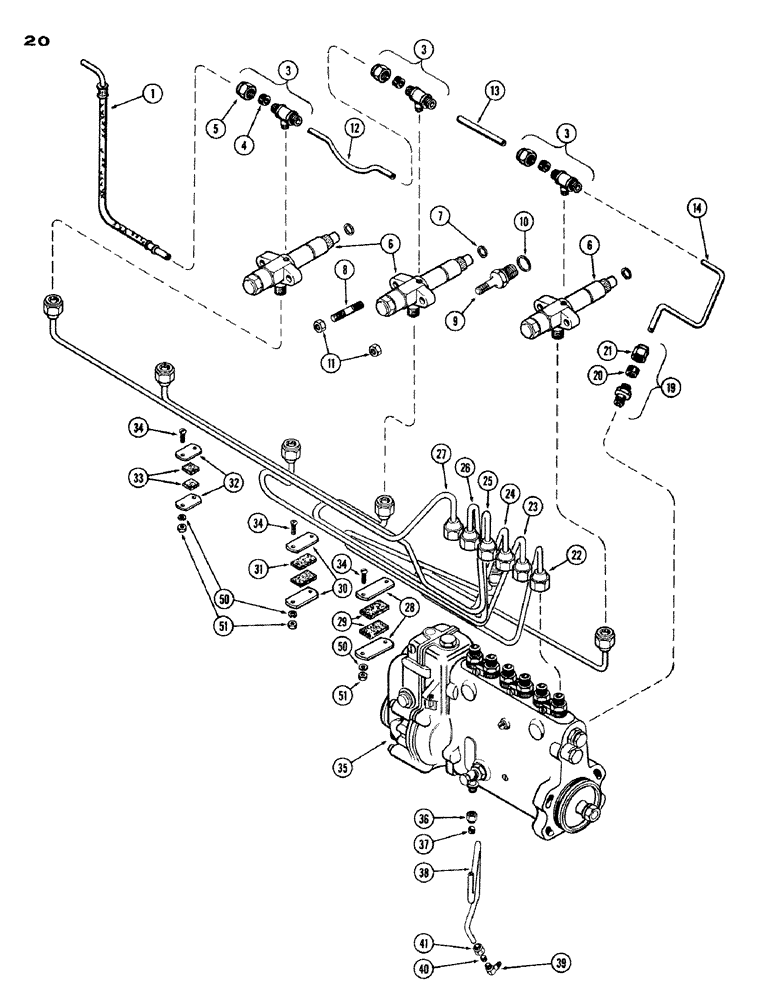

Запчасти Case IH 1200 (020) - FUEL INJECTION SYSTEM, (451) DIESEL ENGINE (02) - ENGINE

1

L10042

HOSE - fuel tank to #6 injector tee

1шт.

3

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - #72 fl.-1/4" tube x 1/8" P.T., Includes: Ref. 4 and 5

6шт.

4

222-102

SLEEVE,1/4" Tube

Tee, #60 fl. 1/4" Tube

2шт.

5

87017024

TUBE NUT,1/2"-24

NUT - tee, #61 fl. x 1/4" tube

2шт.

6

A21149

INJECTOR ASSY. - fuel (Repairs, F. 27), Includes: Ref. 7

6шт.

7

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - injector nozzle

1шт.

8

A27929

STUD

- nozzle holder (3/8" N.C./N.F. x 2-3/16")

6шт.

9

A10678

STUD

- noz. holder (11/16"-16 x 3/8" N.F. x 2-17/32")

6шт.

10

A10679

GASKET

- large nozzle holder stud

6шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

12шт.

12

A27981

TUBE

- injector leak-off, lower

3шт.

13

A20162

TUBE

- injector leak-off, upper

2шт.

14

A22186

TUBE

- leak-off, #1, Serial Range: injector-pump

1шт.

19

A28098

VALVE

ASSY. - check, leak-off tube to pump, Includes: Ref. 20 and 21

1шт.

20

222-102

SLEEVE,1/4" Tube

Valve, #60 fl. 1/4" Tube

1шт.

21

87017024

TUBE NUT,1/2"-24

NUT - hex., #61 fl. x 1/4" tube

1шт.

22

A24949

TUBE ASSY.

- injection, #1 cylinder

1шт.

23

A24951

TUBE ASSY.

- injection, #2 cylinder

1шт.

24

A24953

TUBE

ASSY. - injection, #3 cylinder

1шт.

25

A24955

TUBE ASSY.

- injection, #4 cylinder

1шт.

26

A24957

TUBE ASSY.

- injection, #5 cylinder

1шт.

27

A24964

TUBE ASSY.

- injection, #6 cylinder

1шт.

28

A27978

CLAMP

- injector tube (5 tubes)

2шт.

29

A27980

CUSHION

- tube clamp (5 tubes)

2шт.

30

A27977

CLAMP

- injector tube (3 tubes)

2шт.

31

A27979

CUSHION

- tube clamp (3 tubes)

2шт.

32

A20508

CLAMP

- injector tube (2 tubes)

2шт.

33

A20509

CUSHION

- tube clamp (2 tubes)

2шт.

34

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" rd. hd.

6шт.

35

A24939

PUMP ASSY. - fuel, multi-plunger (Repairs, F. 25)

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - hex., #66 fl. x 1/4" tube

1шт.

37

222-102

SLEEVE,1/4" Tube

#60 fl. 1/4" Tube

1шт.

38

A22640

TUBE

- oil gallery to fuel pump

1шт.

39

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - #69 fl., 90 degree x 1/4" tube x 1/8" P.T., Includes: Ref. 40 and 41

1шт.

40

222-102

SLEEVE,1/4" Tube

Elbow, #60 fl. 1/4" Tube

1шт.

41

87017024

TUBE NUT,1/2"-24

NUT - hex., #61 fl. x 1/4" tube

1шт.

50

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

51

129-7

NUT,Hex, #10 - 24

- hex., #10 N.C.

6шт.
