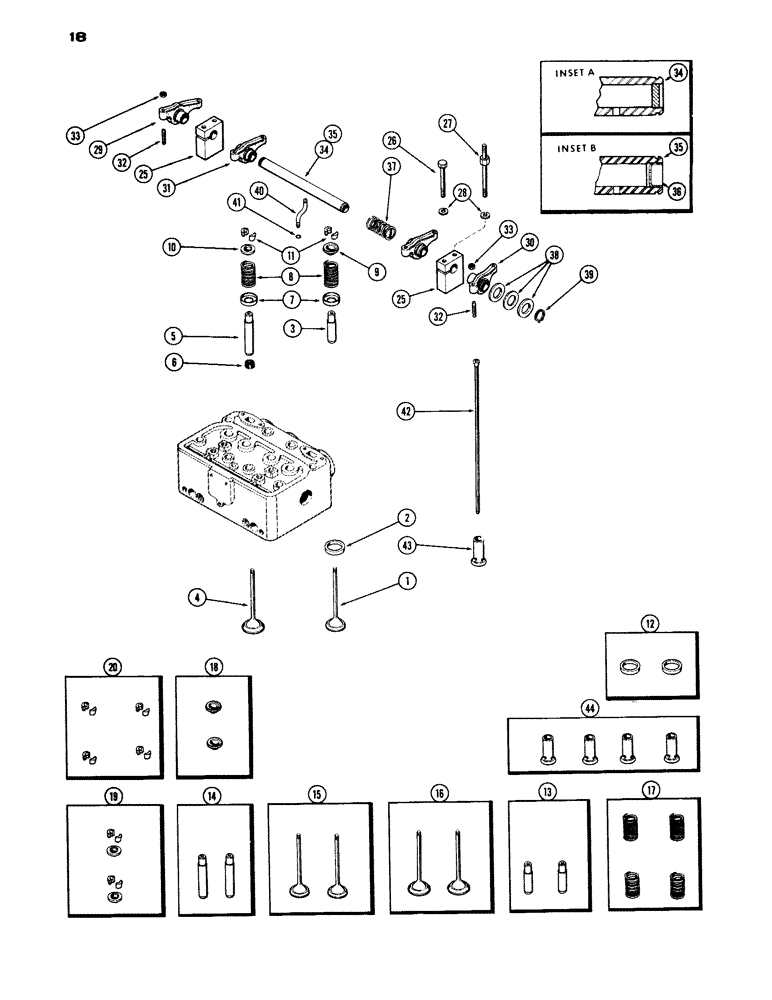

Запчасти Case IH 1200 (018) - VALVE MECHANISM, (451) DIESEL ENGINE (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 15)

6шт.

2

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order Ref. 12)

6шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order Ref. 13)

6шт.

4

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 16)

6шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order Ref. 14)

6шт.

6

A10726

SEAL

SHIELD - intake valve stem (Rubber)

6шт.

7

A27866

SEAT

- int. & exh. valve spring

12шт.

8

NSS

NOT SOLD SEPARAT

SPRING - int. & exh. valve (Order Ref. 17)

12шт.

9

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order Ref. 18)

6шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order Ref. 19)

6шт.

11

NSS

NOT SOLD SEPARAT

LOCK - keeper, int. & exh. valve (Order Ref. 20)

24шт.

12

A57485

INSERT

KIT - exhaust valve (Set of 2) (Replaces A21683)

3шт.

13

A21674

GUIDE

KIT - exhaust valve (Set of 2)

3шт.

14

A21671

GUIDE

KIT - intake valve (Set of 2)

3шт.

15

A34254

VALVE

KIT - exhaust (Set of 2)

3шт.

16

A24921

KIT

VALVE KIT - intake (Set of 2)

3шт.

17

A21694

SPRING

KIT - int. & exh. valve (Set of 4)

3шт.

18

A24993

CAP

ROTO-CAP KIT - exhaust valve (Set of 2)

3шт.

19

A21657

LOCK

RETAINER KIT - int. valve (Set of 2 ret. & 4 keepers)

3шт.

20

A40352

LOCK

KEEPER KIT - int. & exh. valve (Set of 8)

3шт.

25

A27881

BRACKET

- rocker arm shaft

6шт.

26

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

6шт.

27

A57458

STUD

- rocker arm brkt. & cover (3-3/4" N.C. end to nut) (Do not use w/item 28) (1st used eng. ser. no. 8329915)

6шт.

27

A28124

STUD - rocker arm brkt. & cover (3-13/16" N.C. end to nut) (use w/item 28) (used prior to eng. ser. no. 8329915)

6шт.

28

92-7

LOCK WASHER,7/16"

(6 also used w/A28124 stud) 7/16"

6шт.

29

A22326

ROCKER

ARM ASSY - rocker (#2, 4 & 6 exh. valve) (incl. Ref. 32 and 33)

3шт.

30

A22324

ROCKER

ARM ASSY. - rocker (#1, 3 & 5 exh. valve) (incl. Ref. 32 and 33)

3шт.

31

A22322

ROCKER

ARM ASSY. - rocker (#1 - 6 int. valve) (Incl. Ref. 32 and 33)

6шт.

32

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - push rod adjusting

1шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam, 3/8" N.F.

1шт.

34

A57532

SHAFT

ASSY. - w/plug (See Inset A) (1st used eng. ser. no. 2203667), Includes: Ref. 36

3шт.

35

A21100

SHAFT

ASSY. - rocker arms (See Inset B) (used prior to eng. no. 2203667) (Use A57532), Includes: Ref. 36

3шт.

36

A26667

PLUG - rocker shaft ends (9/16" cup type) (See Inset B)

2шт.

37

A27877

SPRING

- rocker arm shaft

3шт.

38

A27878

WASHER

- shaft ends (29/32 x 1-5/16" x .028")

21шт.

39

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

40

A27879

TUBE

- oil, rocker arm shaft

3шт.

41

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker shaft

3шт.

42

A21060

ROD

- push, valve & rocker arm

12шт.

43

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 44)

12шт.

44

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.
