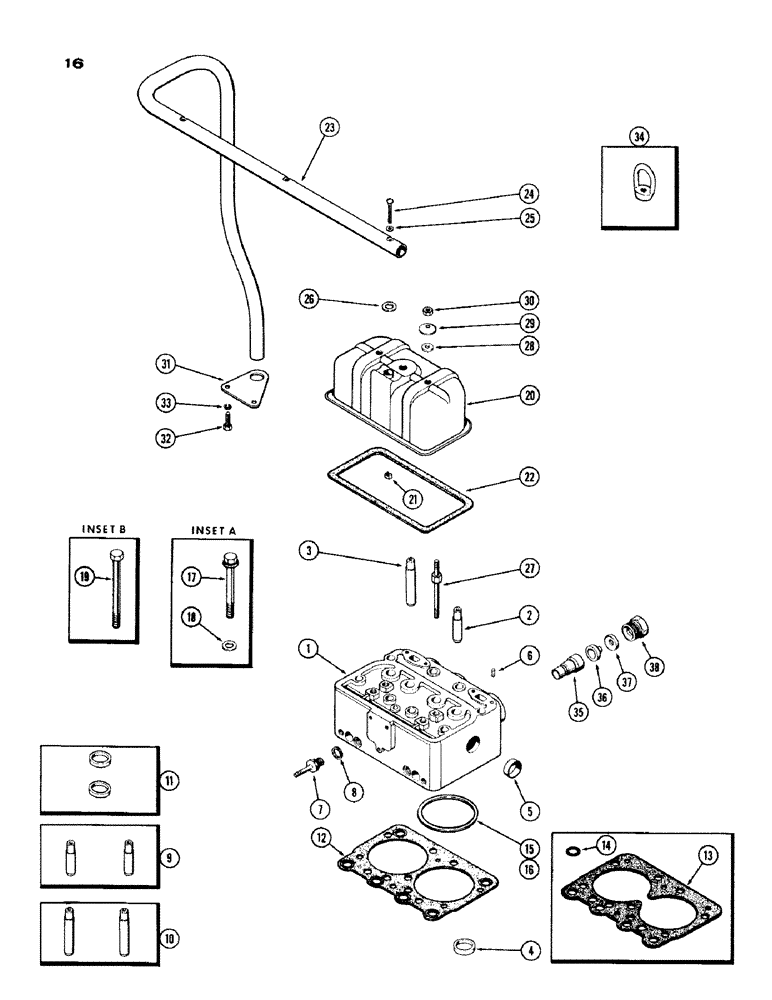

Запчасти Case IH 1200 (016) - CYLINDER HEAD ASSEMBLY, (451) DIESEL ENGINE (02) - ENGINE

1

A33645

HEAD

ASSY. - cylinder, engine, Includes: Ref. 2 - 8

3шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order Ref. 9)

2шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order Ref. 10)

2шт.

4

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order Ref. 11)

2шт.

5

A23653

X

PLUG - cup, expansion

2шт.

6

A27898

PIN - locating, powrcel

2шт.

7

A10678

STUD

- large, nozzle holder

2шт.

8

A10679

GASKET

- nozzle stud

2шт.

9

A21674

GUIDE

KIT - exhaust valve (Set of 2)

3шт.

10

A21671

GUIDE

KIT - intake valve (Set of 2)

3шт.

11

A21683

SHAFT

INSERT KIT - exhaust valve (Set of 2)

3шт.

12

A57593

GASKET

- cylinder head w/grommets (Replaces A41385)

3шт.

13

NS

NOT SERVICED

GASKET - cylinder head (Order A57593)

3шт.

14

NS

NOT SERVICED

RING - cylinder hd. gasket (13/16 x 1-1/16 x .008" fiber) (used w/Ref. 13 only) (Order A57593)

12шт.

15

A34686

RING

- fire, cyl. head (Std.) (See Ref. 14)

6шт.

16

A34688

RING

- fire, cyl. head (Oversize w/blue stripe)

6шт.

17

A57482

STEP BOLT

BOLT - cyl. head (9/16" N.C. x 6-1/4") (See inset A)

27шт.

18

A27870

WASHER

- (19/32 x 15/16 x 11 Ga.) (used w/A57482 bolt)

27шт.

19

A23355

BOLT

- cyl. head (9/16 x 6" N.C. hex.) (See inset B)

27шт.

20

A23681

COVER ASSY

. - cylinder head, Includes: Ref. 21

3шт.

21

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - tinnerman, 1/4"-20

1шт.

22

A57595

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A27972)

3шт.

23

A24184

TUBE

- breather, engine

1шт.

24

75-432

SCREW

- mach., 1/4 x 2" N.C.

3шт.

25

A34133

GASKET

WASHER - breather tube screw

3шт.

26

A23685

GASKET

- breather, Serial Range: tube-cover

3шт.

27

A57458

STUD

- rocker arm brkt. & cover (3-3/4" N.C. end to nut) (Replaces A28124)

6шт.

28

A23684

GASKET

GASKET - valve cover stud

6шт.

29

A23683

WASHER

- beveled, cylinder hd. stud.

6шт.

30

25-117

NUT,7/16"-20, G5

- hex., 7/16" N.F.

6шт.

31

A23686

BRACKET

- breathe tube

1шт.

32

A9936

BOLT - breather tube bracket

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

A22689

NUT

- lifting eye, engine

2шт.

35

A24947

VALVE BODY

BODY ASSY. - powrcel

6шт.

36

A24148

CAP

- powrcel

6шт.

37

A11812

CLAMP

- powrcel

6шт.

38

A11813

PLUG

SCREW - powrcel clamp

6шт.
