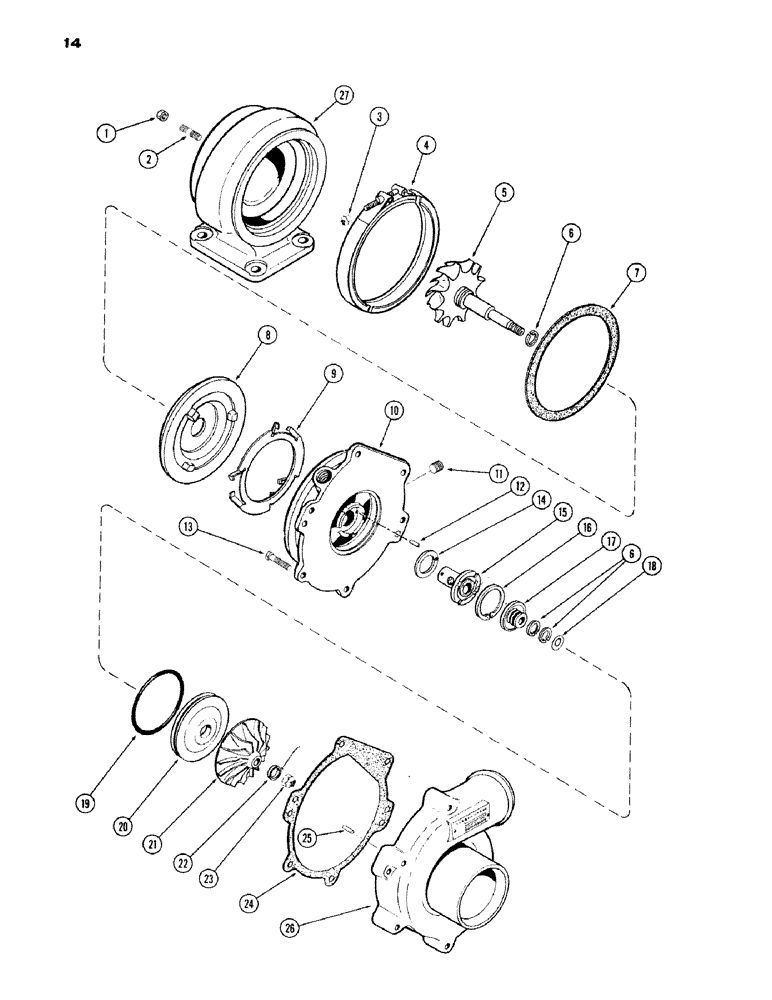

Запчасти Case IH 1200 (014) - TURBO CHARGER, (451) DIESEL ENGINE (02) - ENGINE

1

131-903

NUT,3/8"-16

NUT - hex., (Seez-Pruf) 3/8"-16

4шт.

2

A29356

STUD

- exhaust, Serial Range: mtg.-turbo

4шт.

A34289

TURBOCHARGER

ASSY. - engine, Includes: Ref. 3 - 27

1шт.

3

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - lock #10-32 hex. (cadium plated)

1шт.

4

A56252

CLAMP

ASSY. - vee, turbocharger

1шт.

5

A40954

WHEEL & SHAFT - turbine

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston ring (Order A56278 kit)

3шт.

7

A56251

GASKET - turbine hsg

1шт.

8

A56255

SHIELD - turbocharger

1шт.

9

A56256

SPRING - turbo ring

1шт.

10

A56257

HOUSING - turbo bearing

1шт.

11

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2" hex. sckt. hd

2шт.

12

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

13

A56276

BOLT - turbo compressor hsg.

6шт.

14

A56260

SHIM - turbo bearing (.014")

1шт.

14

A56259

SHIM - turbo bearing (.012")

1шт.

14

A56263

SHIM - turbo bearing (.011")

1шт.

14

A56258

SHIM - turbo bearing (.010")

1шт.

14

A56262

SHIM - turbo bearing (.009")

1шт.

14

A56261

SHIM - turbo bearing (.008")

1шт.

15

A56264

BEARING

- turbo shaft

1шт.

16

A56265

RING - bearing retainer

1шт.

17

A56267

SPACER - turbo shaft

1шт.

18

A56269

SHIM - turbo impeller (.010")

1шт.

18

A56270

SHIM - turbo impeller (.015")

1шт.

19

A56268

O-RING

"O"RING - burbo oil retainer

1шт.

20

A56266

PLATE - oil retainer

1шт.

21

A40956

IMPELLER - turbo

1шт.

22

A56273

WASHER - turbo impeller

1шт.

23

A56272

NUT - self-aligning, hex. (left-hand thread)

1шт.

24

A56275

GASKET - compressor hsg.

1шт.

25

135-256

PIN - groove, 1/4 x 5/8" type 2

2шт.

26

PA41446

SUPPORT

HOUSING - turbo compressor

1шт.

27

A40957

HOUSING - main, turbo

1шт.

A56278

SEAL ASSY.

SEAL & RING KIT - turbo (contains Ref. 6 and tool)

1шт.

A43651

REMAN-TURBOCHARGER

1шт.
