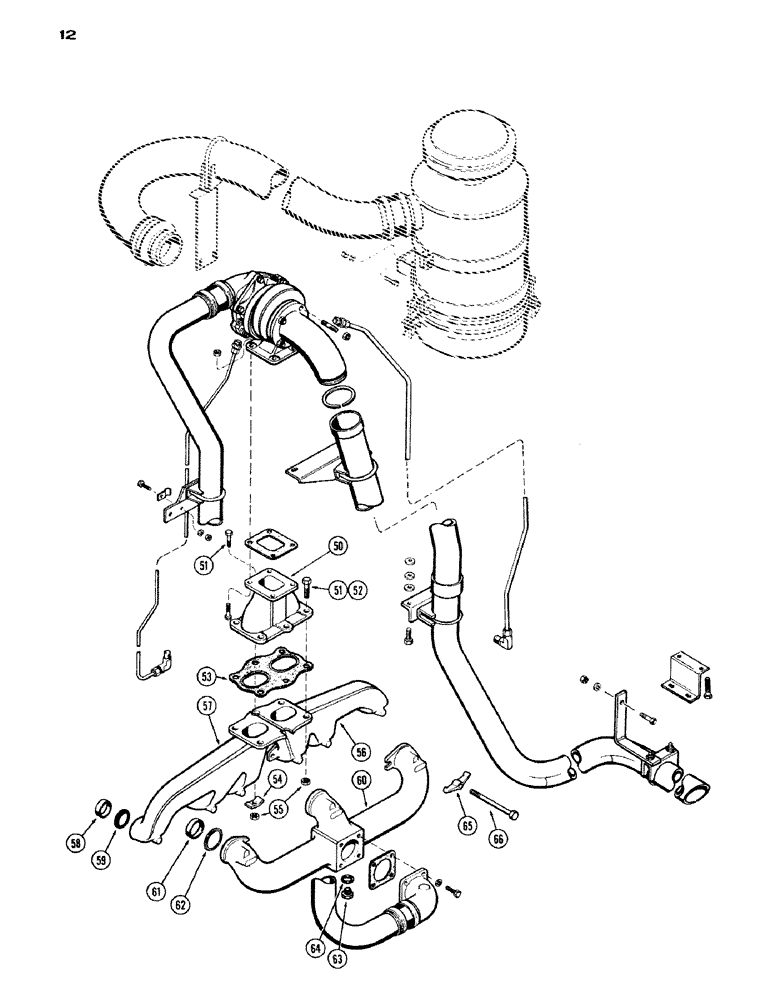

Запчасти Case IH 1200 (012) - TURBO CHARGER SYSTEM CONTINUED, (451) DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

50

A24959

STACK - exhaust, turbo mounting

1шт.

51

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, hd., 1/2 x 1-3/4" N.C.

4шт.

52

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

53

A24966

GASKET

- exhaust, Serial Range: stack-manifold

1шт.

54

A57382

CLAMP

- exhaust manifold & stack

2шт.

55

131-906

NUT

- hex., 1/2" N.C. (Seez - Purf)

6шт.

56

A24979

MANIFOLD

- exhaust, rear

1шт.

57

A24980

MANIFOLD

- exhaust, front

1шт.

58

A21056

CAP

FERRULE - exhaust manifold

6шт.

59

A11888

MANIFOLD GASKET

- exhaust manifold

6шт.

60

A20913

MANIFOLD - intake

1шт.

61

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

3шт.

62

A21054

MANIFOLD GASKET

- intake manifold

3шт.

63

A20917

PLUG

- intake manifold

1шт.

64

A20916

MANIFOLD GASKET

GASKET - manifold plug

1шт.

65

A24368

CLAMP

- intake & exhaust manifold

6шт.

66

13-792

BOLT

- hex. hd., 7/16 x 5-3/4" N.C.

6шт.
